Name: CEX1W20B4K-A - Concord HDMI Audio Extractor
Brand: Concord
SKU: AC5030
Price: 99.9 NZD
Availability: OutOfStock

HDMI audio extractor with coaxial, 3.5mm out, HDMI out, TOSLINK ports

Side view HDMI audio extractor with coaxial, 3.5mm out, HDMI out, TOSLINK ports

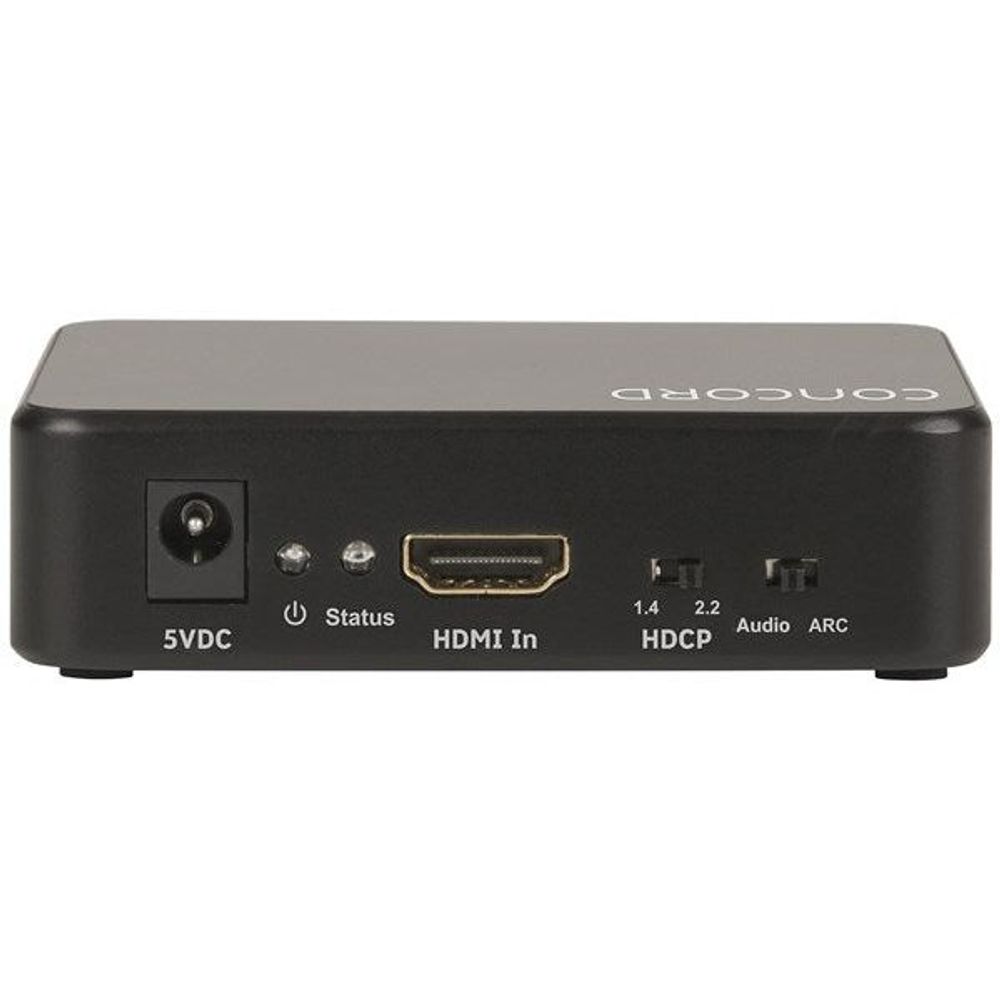

HDMI audio extractor rear panel with 5VDC, HDMI in, Status, Audio ARC, HDCP

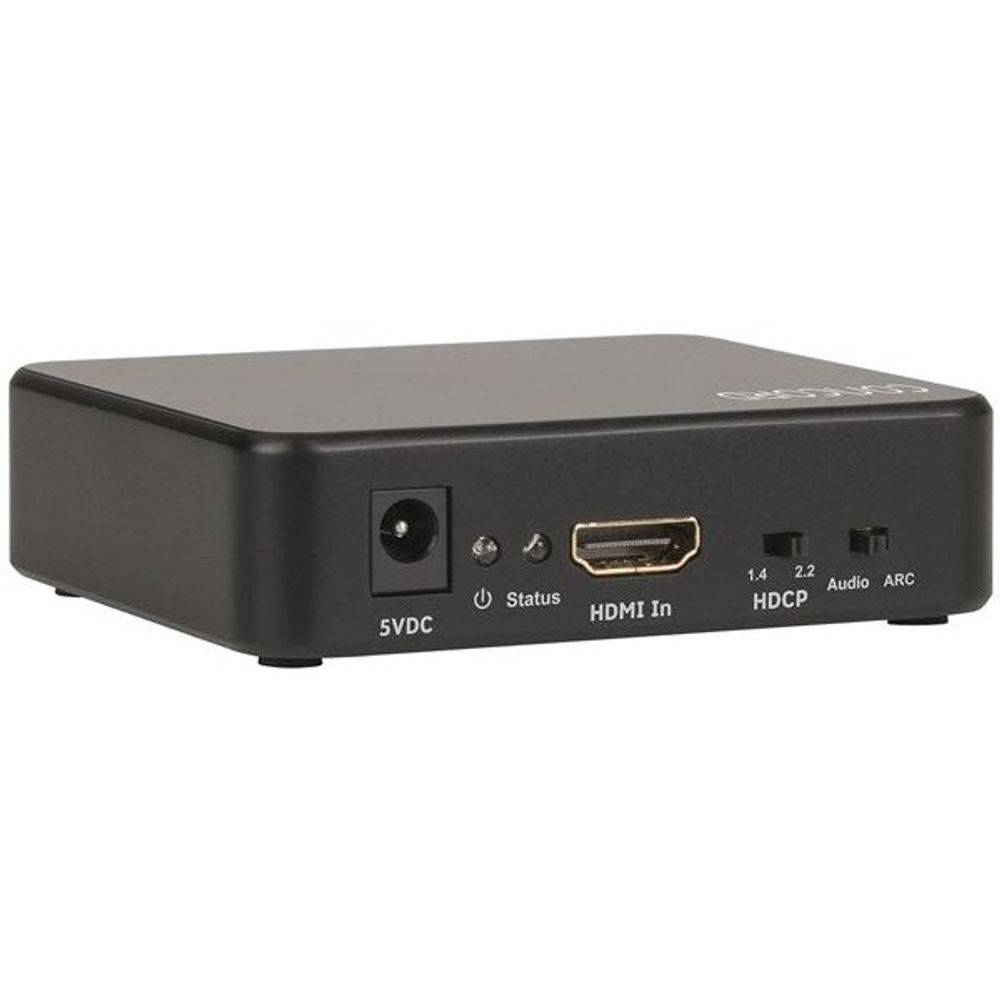

HDMI audio extractor rear ports: 5VDC, HDMI in, Status, Audio ARC, HDCP

CEX1W20B4K-A - Concord HDMI Audio Extractor

AC5030

$99.90

Tax included.

Out of stock

Select quantity

Description

AC5030

2 Year Warranty

Outputs include digital TOSLINK optical, digital coaxial and analogue 3.5mm stereo audio. It supports HDCP 2.2, HDCP 1.4, HDMI 2.0 and AV signals up to 4K @ 60Hz. HDR, Dolby, DTS, LPCM, and 3D video are also supported, along with an ARC (Audio Return Channel). The HDMI output enables you to still feed the video to your TV or other display, supported by EDID data transmission.

Features:

Extracts audio stream from HDMI
Suitable up to 4K @ 60Hz
Supports: DTS HD, Dolby TrueHD (via HDMI)

Specifications

Digital Audio Format : LPCMDolby Digital/Plus/ExDTS-HD Master Audio 5.1Dolby TrueHD

Width : 90mm

Height : 24mm

Depth : 80mm

DC Plugpack Voltage : 5V

DC Current Draw : 1A

Packaged Volume : 1.35l

Packaged Weight : 0.26kg

Packaged Length : 15cm

Packaged Width : 12cm

Packaged Height : 7.5cm

Supported Display Resolution : 4K UHD (3840 x 2160)

Resolution Frequency : 30Hz, 60Hz

HDMI Version : 2.0b

HDMI Maximum Data Rate : 18Gb/s

HDMI Maximum Colour Depth : 10b

HDCP Version : 2.2, 1.4

HDR Version : HDR 10

Switcher/Converter Type : Converter

Input type : HDMI

Input Connection : HDMI Type-A

Output Type : HDMIAudioDigital Audio

Output Connection : HDMI Type-ARCA Digital Coaxial Audio (SPDIF)TOSLINK

Availability : Stocked item
