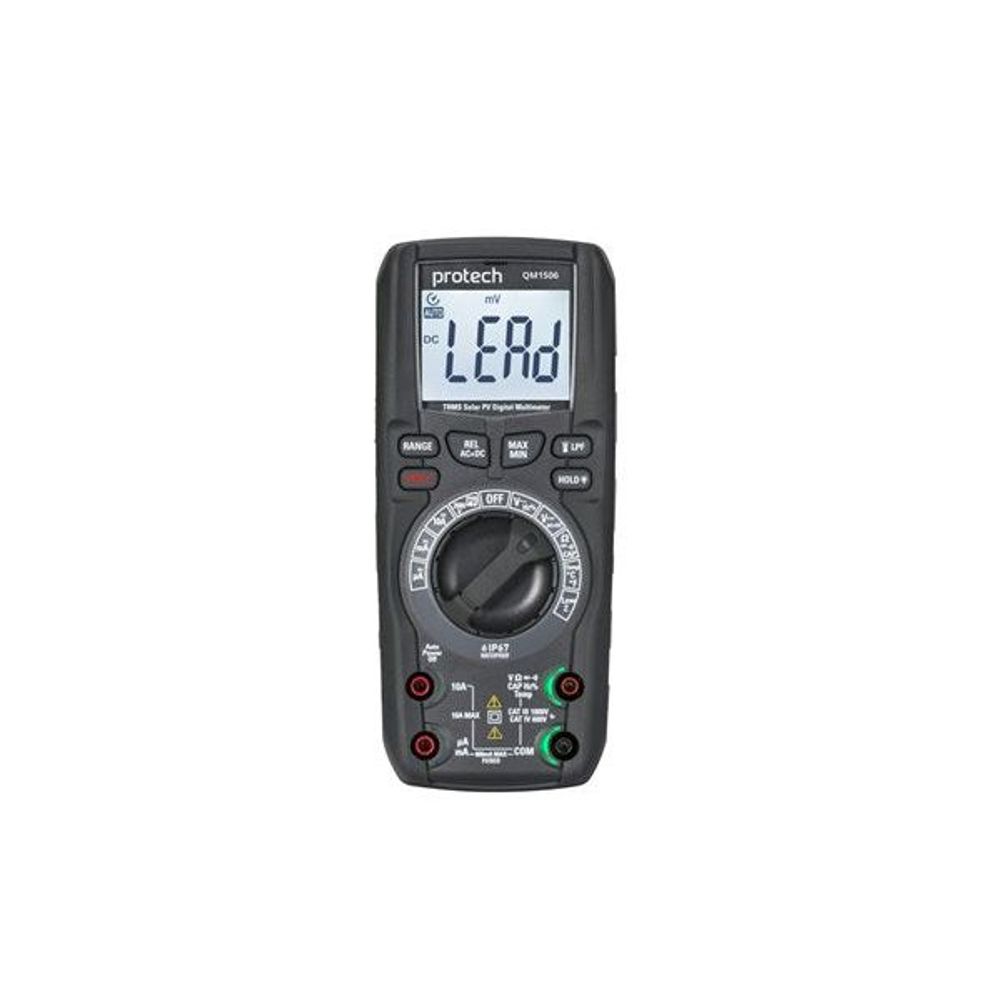

QM1506 The QM1506 is a digital multimeter developed for solar photovoltaic professionals working in high-voltage DC environments. It supports up to 2000VDC for PV testing and includes both AC and DC measurement modes. With a rugged, waterproof design and a large backlit display, it enables safe, efficient diagnostics across a wide range of solar and industrial applications.Key Features Measures up to 2000VDC for photovoltaic systems IP67 waterproof housing with 6000/60000 count LCD True-RMS AC measurement with low-pass filter for VFD systems Lead alert protection and input terminal LED indicators Backlit LCD, selector knob, and switch for low-light use Typical Use Cases PV array and module voltage testing Power storage system and battery bank diagnostics High-voltage industrial DC equipment maintenance Electrical testing in railway and data center environments On-site verification of solar system installations In the box: Meter Zipper carry case K-type temperature probe with 95cm cable K-Type to banana plug adapter 2-pin Test leads with 120cm cable 4-pin Test leads with 100cm cable 4x AAA batteries Manual

Specifications
