Name: C050940A821 - Cambium ePMP 4500 5 GHz 8x8 Integrated Fixed Wireless Access Point
Brand: Cambium Networks
SKU: C050940A821
Price: 4761.0 NZD
Availability: OutOfStock

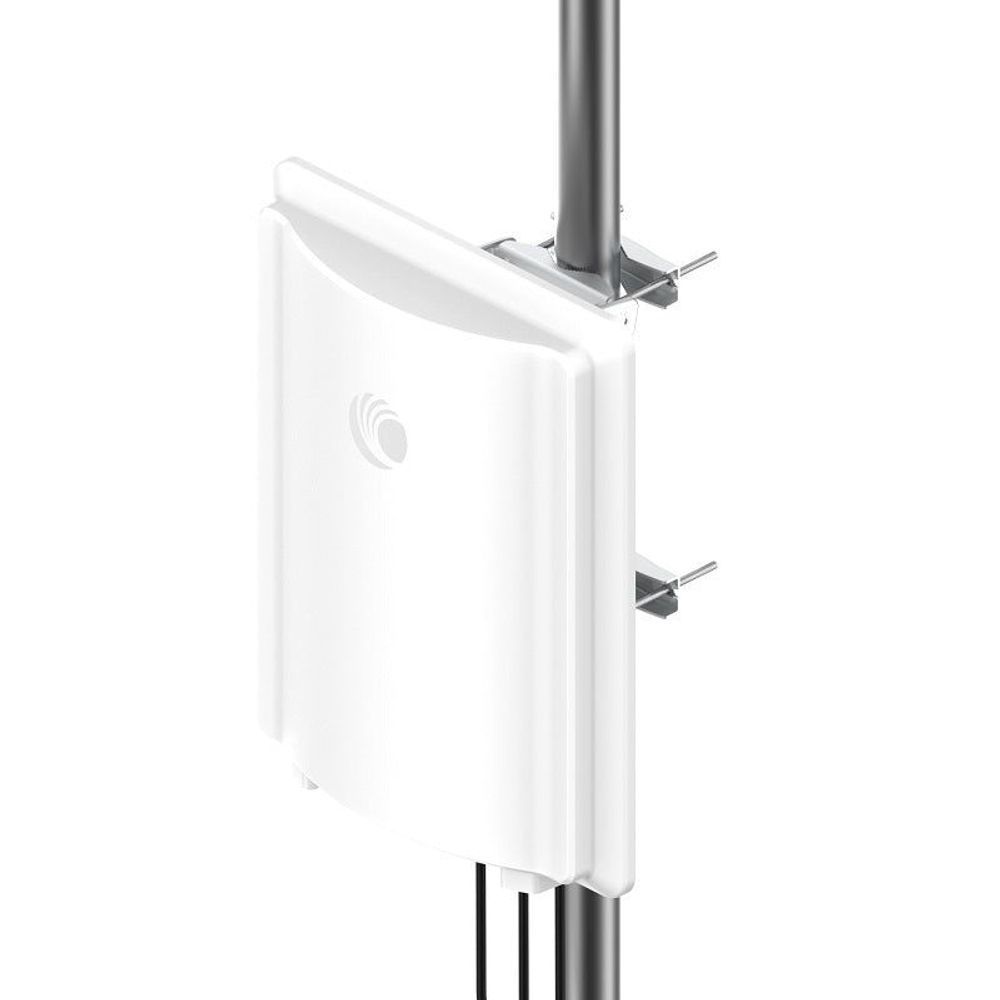

Cambium ePMP 4500 fixed wireless access point with pole mount bracket, white

C050940A821 - Cambium ePMP 4500 5 GHz 8x8 Integrated Fixed Wireless Access Point

C050940A821

$4,761.00

Tax included.

Out of stock

Select quantity

Description

Cambium ePMP 4500 5 GHz 8x8 Integrated Fixed Wireless Access Point.

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. ePMP 4500 access points (AP) interoperate with Force 400 Subscriber modules and will support backward compatibility to Force 300 Subscriber modules in a future release. A sophisticated scheduling and QoS engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.

All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

ePMP 4500
The ePMP 4500 delivers up to 4 Gbps and supports up to 120 subscriber modules. Featuring 8x8 MU-MIMO, the 5 GHz ePMP 4500 can transmit to four Force 400 SM’s at the same time. This effectively quadruples the capacity of 2x2 systems and in the process, increases link budgets by 6 dB with downlink beamforming. The ePMP 4500 has an integrated 90º 8x8 MU-MIMO sector antenna. With TDD synchronization, ePMP 4500 networks can scale to thousands of end users leveraging a small number of channels.

Features

High-performance, scalable and reliable access points for fixed wireless broadband
Features MU-MIMO for up to 4 Gbps in 5 GHz
Low TCO with three-year hardware warranty
Interoperable with all Force 400 (backwards compatibility with Force 300 in future release)
Cloud or on-premises network management with cnMaestro

Details
Manufacturer's Code	C050940A821A
Channel Width	20 / 40 / 80 MHz
Proprietary Physical Layer	8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology
Channel Spacing	Configurable in 5 MHz increments
Frequency Range Wide Band Operation	4910–6135 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations)
MAC Layer (Media Access Control)	Cambium Proprietary
Ethernet Interfaces	100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP+ port
supported Powering Methods	56V 30W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input
Protocols Used	IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management	HTTPS, SNMPv2c, SSH
VLAN	802.1Q with 802.1p priority
Subscribers per Sector	Up to 120
ARQ	Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -62 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GPS Synchronization	Yes, via Internal GPS or Cambium Sync
QoS (Quality of Service)	Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range	0 to +34 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna	Integrated 8x8 MU-MIMO 90º Sector, 17 dBi gain
Surge Supression	1 Joule Integrated
Environmental	IP67
Temperature	-30°C to 55°C (-22°F to 131°F)
Weight	14.66 kg (32.32 lbs) with clamp
Dimensions (H x W x D)	643 x 487 x 157 mm (25.3 x 19.2 x 6.2 in)
Power Consumption	32W Maximum
Input Voltage	44V to 59V
Sector Antenna Connection	Integrated 90º Sector
GPS Antenna Connection	1 x 50 ohm, SMA; Integrated GPS Antenna
Encryption	128-bit AES (CCMP mode)

Details
Power Supply	56V 30W PoE Included
Mounting Hardware	Pole Mount Bracket Included

Specifications

Details
Manufacturer's Code	C050940A821A
Channel Width	20 / 40 / 80 MHz
Proprietary Physical Layer	8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology
Channel Spacing	Configurable in 5 MHz increments
Frequency Range Wide Band Operation	4910–6135 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations)
MAC Layer (Media Access Control)	Cambium Proprietary
Ethernet Interfaces	100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP+ port
supported Powering Methods	56V 30W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input
Protocols Used	IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management	HTTPS, SNMPv2c, SSH
VLAN	802.1Q with 802.1p priority
Subscribers per Sector	Up to 120
ARQ	Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -62 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GPS Synchronization	Yes, via Internal GPS or Cambium Sync
QoS (Quality of Service)	Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range	0 to +34 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna	Integrated 8x8 MU-MIMO 90º Sector, 17 dBi gain
Surge Supression	1 Joule Integrated
Environmental	IP67
Temperature	-30°C to 55°C (-22°F to 131°F)
Weight	14.66 kg (32.32 lbs) with clamp
Dimensions (H x W x D)	643 x 487 x 157 mm (25.3 x 19.2 x 6.2 in)
Power Consumption	32W Maximum
Input Voltage	44V to 59V
Sector Antenna Connection	Integrated 90º Sector
GPS Antenna Connection	1 x 50 ohm, SMA; Integrated GPS Antenna
Encryption	128-bit AES (CCMP mode)
