Name: C050910C861 - Cambium ePMP 5 GHz Force 300 CSML Connectorised Subscriber Module/PTP Wireless Bridge
Brand: Cambium Networks
SKU: C050910C861
Price: 236.9 NZD
Availability: InStock

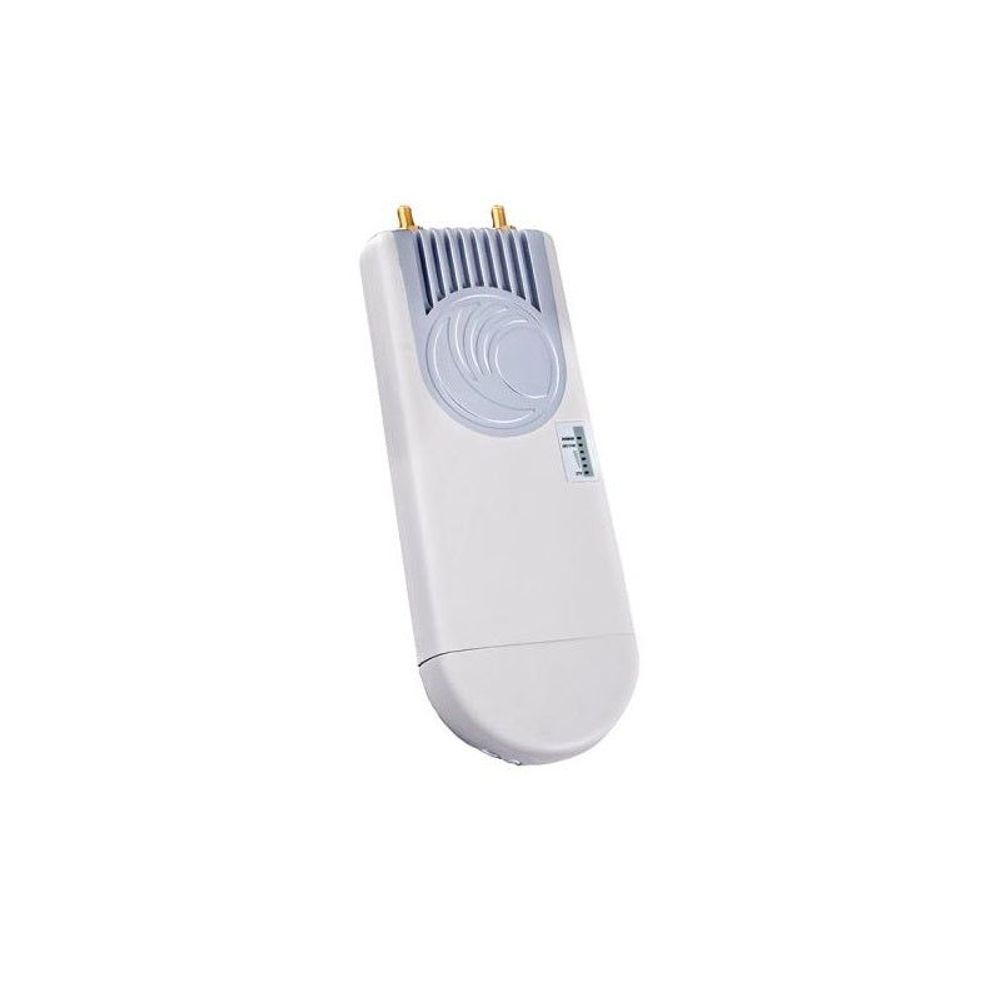

Wireless subscriber module with light gray housing, circular port, and two gold RF connectors

C050910C861 - Cambium ePMP 5 GHz Force 300 CSML Connectorised Subscriber Module/PTP Wireless Bridge

C050910C861

$236.90

Tax included.

In stock, ready to be shipped

Select quantity

Description

Cambium ePMP 5 GHz Force 300 CSML Connectorised Subscriber Module for WISP CPE and Point to Point wireless bridge.

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP Force L Series of subscriber modules (SM) meets this demand offering high performance, scalability, low latency across both point-topoint and point-to-multipoint deployments while providing a rapid return on investment.

The Force L Series has a variety of options tailored to the range and capacity needs of the wireless service provider:

The Force 300 L Series delivers up to 400 Mbps and is based on 802.11ac Wave 2 Technology enabling MU-MIMO performance when used with the ePMP 3000 Access Point.

Note: these are a bulk packed item and do not come in individual retail packaging.

Features

High-performance subscriber modules for point-to-point and point-to-multipoint fixed wireless broadband WISP applications
Up to 400 Mbps capacity leveraging the proven ePMP platform on 802.11ac models (200 Mbps on 802.11n models)
Compatible with all ePMP Access Points, including ePMP 3000 and ePMP 3000L
3-year hardware warranty
Wireless Point to Point Bridging

Details
Manufacturer's Code	C050910C831A
Frequency Range	4910 - 6200 MHz
Channel Width	20 / 40 / 80 MHz
MAC (Media Access Control) Layer	Cambium Proprietary
Physical Layer	2x2 MIMO/OFDM
Ethernet Interface	10/100/1000 BaseT
Network Management	IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
VLAN	802.1Q with 802.1p priority
Quality of Service	Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range	+3 to 27 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Type	Connectorized 2 x RP-SMA Female
Environmental	IP55
Temperature	-30°C to +60°C
Weight	0.49 kg
Wind Survival	200 km/hour (124 mi/hour)
Dimensions (H x W x D)	29.1 x 14.5 x 8.3 cm
Pole Diameter Range	25 mm – 75 mm
Power Consumption	12 W Maximum, 9 W Typical
Input Voltage	30 V Passive PoE (14-30V DC input)

Details
Power Supply	30V PoE Power Supply included
Pole Mount Bracket	Sold Separately (N000900L006A)

Specifications

Details
Manufacturer's Code	C050910C831A
Frequency Range	4910 - 6200 MHz
Channel Width	20 / 40 / 80 MHz
MAC (Media Access Control) Layer	Cambium Proprietary
Physical Layer	2x2 MIMO/OFDM
Ethernet Interface	10/100/1000 BaseT
Network Management	IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
VLAN	802.1Q with 802.1p priority
Quality of Service	Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range	+3 to 27 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Type	Connectorized 2 x RP-SMA Female
Environmental	IP55
Temperature	-30°C to +60°C
Weight	0.49 kg
Wind Survival	200 km/hour (124 mi/hour)
Dimensions (H x W x D)	29.1 x 14.5 x 8.3 cm
Pole Diameter Range	25 mm – 75 mm
Power Consumption	12 W Maximum, 9 W Typical
Input Voltage	30 V Passive PoE (14-30V DC input)
