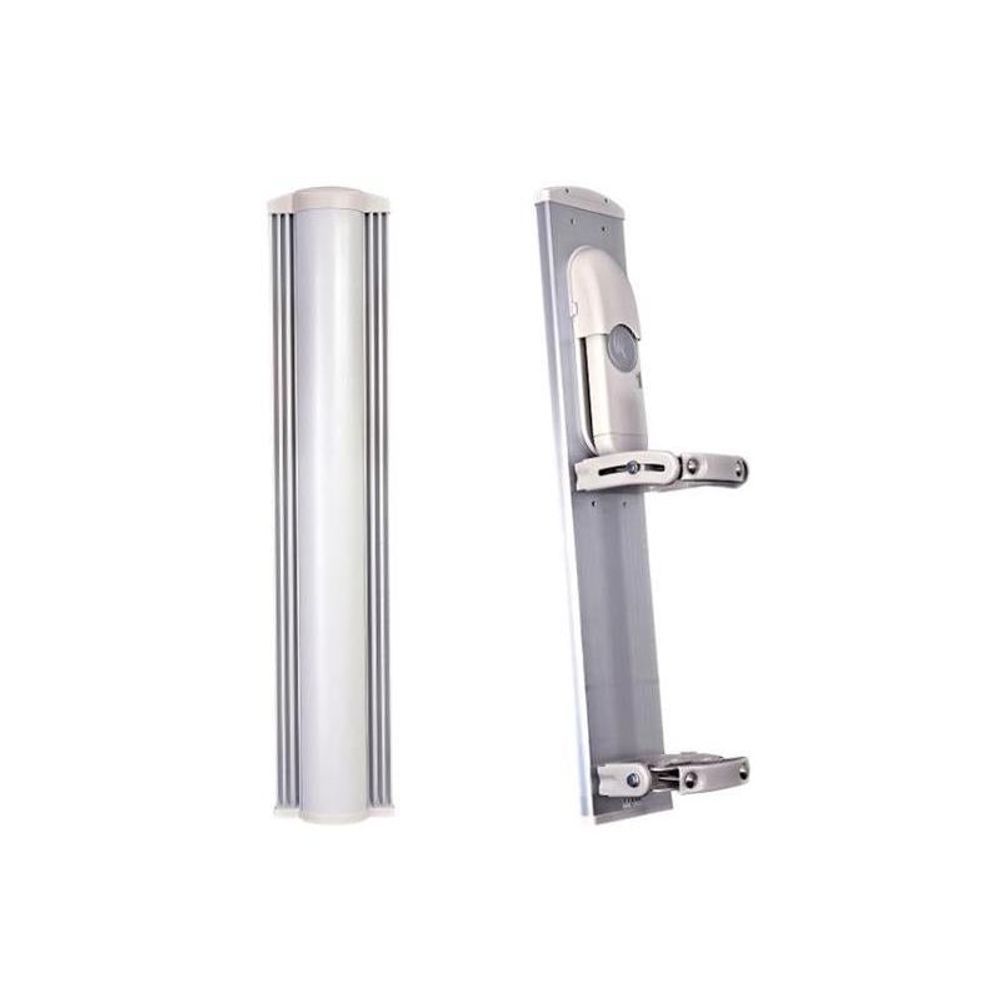

C050900D002A - Cambium ePMP1000 5GHz 120deg Sector Antenna

C050900D002A - Cambium ePMP1000 5GHz 120deg Sector Antenna

C050900D002A

$132.25

Tax included.

9 items available
Select quantity
Description
The Cambium ePMP 5 GHz and 2.4 GHz ePMP 1000 Sector Antennas offer an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP 1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
Details
Manufacturer's Product Code C050900D002A
Frequency Range 5150 – 5875 MHz
Gain 14 dBi
Polarisation Dual Linear, Horizontal / Vertical
Cross Polarisation >18 dB
Max VSWR 1.7:1 MAX
Vertical Beamwidth 90deg
Horizontal Beamwidth 120deg
Elevation Beamwidth 12deg
Connector Type (2) RP-SMA Male
Dimensions 827h x 161w x 59d (excl AP & bracket)
Wind Loading 190 km/h (118 mph)
Details
Pole Mount Yes, Included
Warranty Standard 12 Month RTB





Specifications





Details
Manufacturer's Product Code C050900D002A
Frequency Range 5150 – 5875 MHz
Gain 14 dBi
Polarisation Dual Linear, Horizontal / Vertical
Cross Polarisation >18 dB
Max VSWR 1.7:1 MAX
Vertical Beamwidth 90deg
Horizontal Beamwidth 120deg
Elevation Beamwidth 12deg
Connector Type (2) RP-SMA Male
Dimensions 827h x 161w x 59d (excl AP & bracket)
Wind Loading 190 km/h (118 mph)
Warranty
Brand

Cambium Networks

Restock ETA (if applicable)

Product Details

Specifications

  • Cambium Networks

  • HeadingC050900D002A - Cambium ePMP1000 5GHz 120deg Sector Antenna

Description
The Cambium ePMP 5 GHz and 2.4 GHz ePMP 1000 Sector Antennas offer an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP 1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
Details
Manufacturer's Product Code C050900D002A
Frequency Range 5150 – 5875 MHz
Gain 14 dBi
Polarisation Dual Linear, Horizontal / Vertical
Cross Polarisation >18 dB
Max VSWR 1.7:1 MAX
Vertical Beamwidth 90deg
Horizontal Beamwidth 120deg
Elevation Beamwidth 12deg
Connector Type (2) RP-SMA Male
Dimensions 827h x 161w x 59d (excl AP & bracket)
Wind Loading 190 km/h (118 mph)
Details
Pole Mount Yes, Included
Warranty Standard 12 Month RTB





Specifications





Details
Manufacturer's Product Code C050900D002A
Frequency Range 5150 – 5875 MHz
Gain 14 dBi
Polarisation Dual Linear, Horizontal / Vertical
Cross Polarisation >18 dB
Max VSWR 1.7:1 MAX
Vertical Beamwidth 90deg
Horizontal Beamwidth 120deg
Elevation Beamwidth 12deg
Connector Type (2) RP-SMA Male
Dimensions 827h x 161w x 59d (excl AP & bracket)
Wind Loading 190 km/h (118 mph)
Brand

Cambium Networks

Warranty
