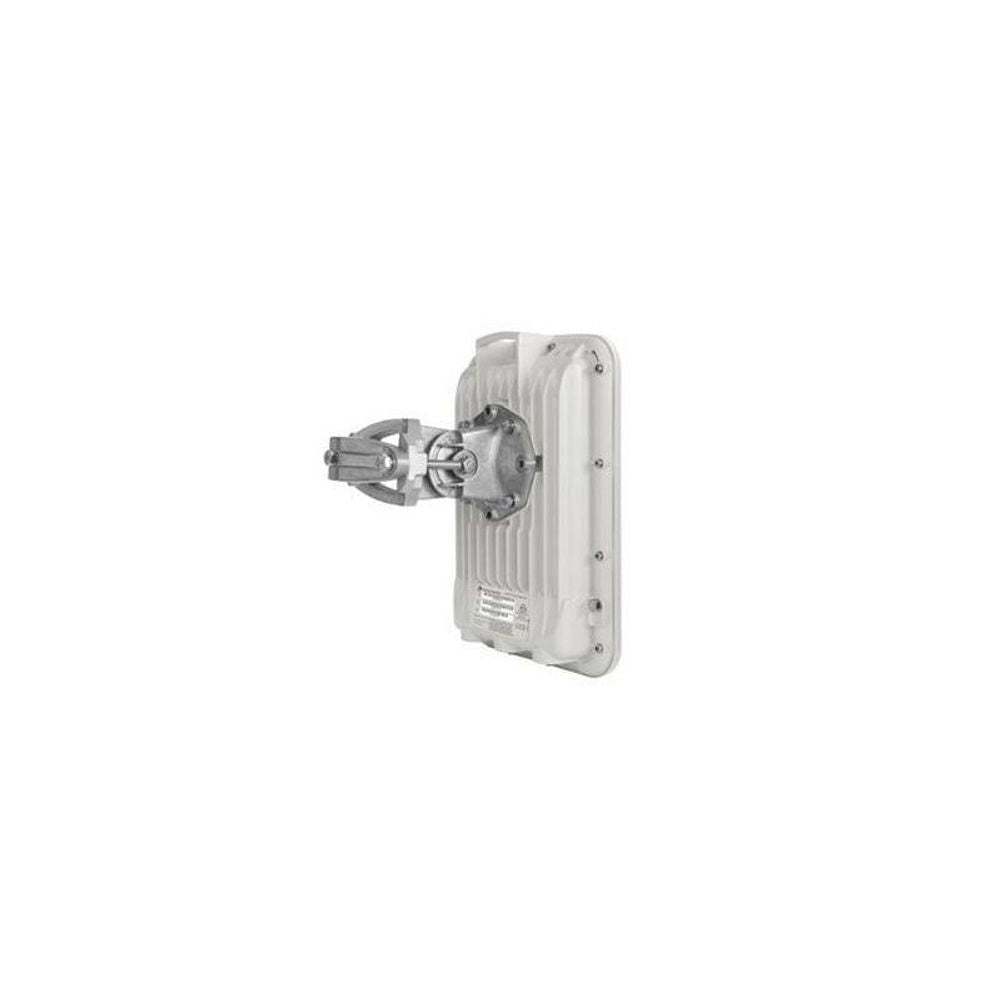

C050065B016A - Cambium PTP 650S 4.9-6.05 GHz ODU Wireless Point to Point Radio

C050065B016A - Cambium PTP 650S 4.9-6.05 GHz ODU Wireless Point to Point Radio

C050065B016A

$2,242.50

Tax included.

2 items available
Select quantity
Description
Cambium PTP 650S 4.9-6.05 GHz ODU High Reliability Wireless Point to Point Radio. Network operators have experienced massive growth in data, voice, and video traffic over the past few years. This growth has imposed new requirements for high bandwidth and secure, reliable connectivity in areas not previously covered. Heterogeneous networks of small cells are increasingly being deployed in traffic “hotspot” areas to address these increasing capacity demands. In addition, data “not spots” are being addressed in suburban and rural areas with lower capacity small cell deployments. Cambium Networks disrupts the performance-reliability continuum with the Cambium Point-to-Point (PTP) 650S Small Cell backhaul solution. With up to 450 Mbps aggregate throughput, small form factor, and support for 3G and 4G/LTE network timing, PTP650S links let you reliably and securely handle today’s needs with scalability to meet future requirements.
Details
Manufacturer's Code C050065B016A
Output Power Up to 27 dbm at bPsK; up to 23 dbm at 256 QaM
Channel Width 5, 10, 15, 20, 30, 40, and 45 MHz channels
Spectral Efficiency 10 bps/Hz maximum
Frequency Range Wide-band operation 4.9 to 6.05 GHz (allowable frequencies and bands are dictated by individual country regulations.
Network Management iPv6/iPv4 dual-stack management support, Web access via browser using HTTP or HTTPs/Tls4, snMP v1, v2c and v3, Mib-ii and proprietary PTP Mib Cambium Wireless Manager, WM 4.0/sP4 or higher, online spectrum analyzer (no impact on payload traffic or network operation)
Interfaces Gigabit Port 1: data + Poe power input; Gigabit Port 2: 802.3at Poe output port (optional); sFP port (single-mode fiber, multi-mode fiber, and copper Gigabit ethernet options available)
PoE In 55V 1.2A
Antenna gain dBi Integrated: Flat panel – 19 dbi
Max Power consumption 30W
Wind Loading 200 mph (322 kph)
IP Rating IP66 and IP67
Details
Power Supply Sold Separately (N000065L001)
Pole Mount Sold Separately (N000065L031)





Specifications





Details
Manufacturer's Code C050065B016A
Output Power Up to 27 dbm at bPsK; up to 23 dbm at 256 QaM
Channel Width 5, 10, 15, 20, 30, 40, and 45 MHz channels
Spectral Efficiency 10 bps/Hz maximum
Frequency Range Wide-band operation 4.9 to 6.05 GHz (allowable frequencies and bands are dictated by individual country regulations.
Network Management iPv6/iPv4 dual-stack management support, Web access via browser using HTTP or HTTPs/Tls4, snMP v1, v2c and v3, Mib-ii and proprietary PTP Mib Cambium Wireless Manager, WM 4.0/sP4 or higher, online spectrum analyzer (no impact on payload traffic or network operation)
Interfaces Gigabit Port 1: data + Poe power input; Gigabit Port 2: 802.3at Poe output port (optional); sFP port (single-mode fiber, multi-mode fiber, and copper Gigabit ethernet options available)
PoE In 55V 1.2A
Antenna gain dBi Integrated: Flat panel – 19 dbi
Max Power consumption 30W
Wind Loading 200 mph (322 kph)
IP Rating IP66 and IP67
Warranty
Brand

Cambium Networks

Restock ETA (if applicable)

Product Details

Specifications

  • Cambium Networks

  • HeadingC050065B016A - Cambium PTP 650S 4.9-6.05 GHz ODU Wireless Point to Point Radio

Description
Cambium PTP 650S 4.9-6.05 GHz ODU High Reliability Wireless Point to Point Radio. Network operators have experienced massive growth in data, voice, and video traffic over the past few years. This growth has imposed new requirements for high bandwidth and secure, reliable connectivity in areas not previously covered. Heterogeneous networks of small cells are increasingly being deployed in traffic “hotspot” areas to address these increasing capacity demands. In addition, data “not spots” are being addressed in suburban and rural areas with lower capacity small cell deployments. Cambium Networks disrupts the performance-reliability continuum with the Cambium Point-to-Point (PTP) 650S Small Cell backhaul solution. With up to 450 Mbps aggregate throughput, small form factor, and support for 3G and 4G/LTE network timing, PTP650S links let you reliably and securely handle today’s needs with scalability to meet future requirements.
Details
Manufacturer's Code C050065B016A
Output Power Up to 27 dbm at bPsK; up to 23 dbm at 256 QaM
Channel Width 5, 10, 15, 20, 30, 40, and 45 MHz channels
Spectral Efficiency 10 bps/Hz maximum
Frequency Range Wide-band operation 4.9 to 6.05 GHz (allowable frequencies and bands are dictated by individual country regulations.
Network Management iPv6/iPv4 dual-stack management support, Web access via browser using HTTP or HTTPs/Tls4, snMP v1, v2c and v3, Mib-ii and proprietary PTP Mib Cambium Wireless Manager, WM 4.0/sP4 or higher, online spectrum analyzer (no impact on payload traffic or network operation)
Interfaces Gigabit Port 1: data + Poe power input; Gigabit Port 2: 802.3at Poe output port (optional); sFP port (single-mode fiber, multi-mode fiber, and copper Gigabit ethernet options available)
PoE In 55V 1.2A
Antenna gain dBi Integrated: Flat panel – 19 dbi
Max Power consumption 30W
Wind Loading 200 mph (322 kph)
IP Rating IP66 and IP67
Details
Power Supply Sold Separately (N000065L001)
Pole Mount Sold Separately (N000065L031)





Specifications





Details
Manufacturer's Code C050065B016A
Output Power Up to 27 dbm at bPsK; up to 23 dbm at 256 QaM
Channel Width 5, 10, 15, 20, 30, 40, and 45 MHz channels
Spectral Efficiency 10 bps/Hz maximum
Frequency Range Wide-band operation 4.9 to 6.05 GHz (allowable frequencies and bands are dictated by individual country regulations.
Network Management iPv6/iPv4 dual-stack management support, Web access via browser using HTTP or HTTPs/Tls4, snMP v1, v2c and v3, Mib-ii and proprietary PTP Mib Cambium Wireless Manager, WM 4.0/sP4 or higher, online spectrum analyzer (no impact on payload traffic or network operation)
Interfaces Gigabit Port 1: data + Poe power input; Gigabit Port 2: 802.3at Poe output port (optional); sFP port (single-mode fiber, multi-mode fiber, and copper Gigabit ethernet options available)
PoE In 55V 1.2A
Antenna gain dBi Integrated: Flat panel – 19 dbi
Max Power consumption 30W
Wind Loading 200 mph (322 kph)
IP Rating IP66 and IP67
