Description
Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m. The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage.
Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.

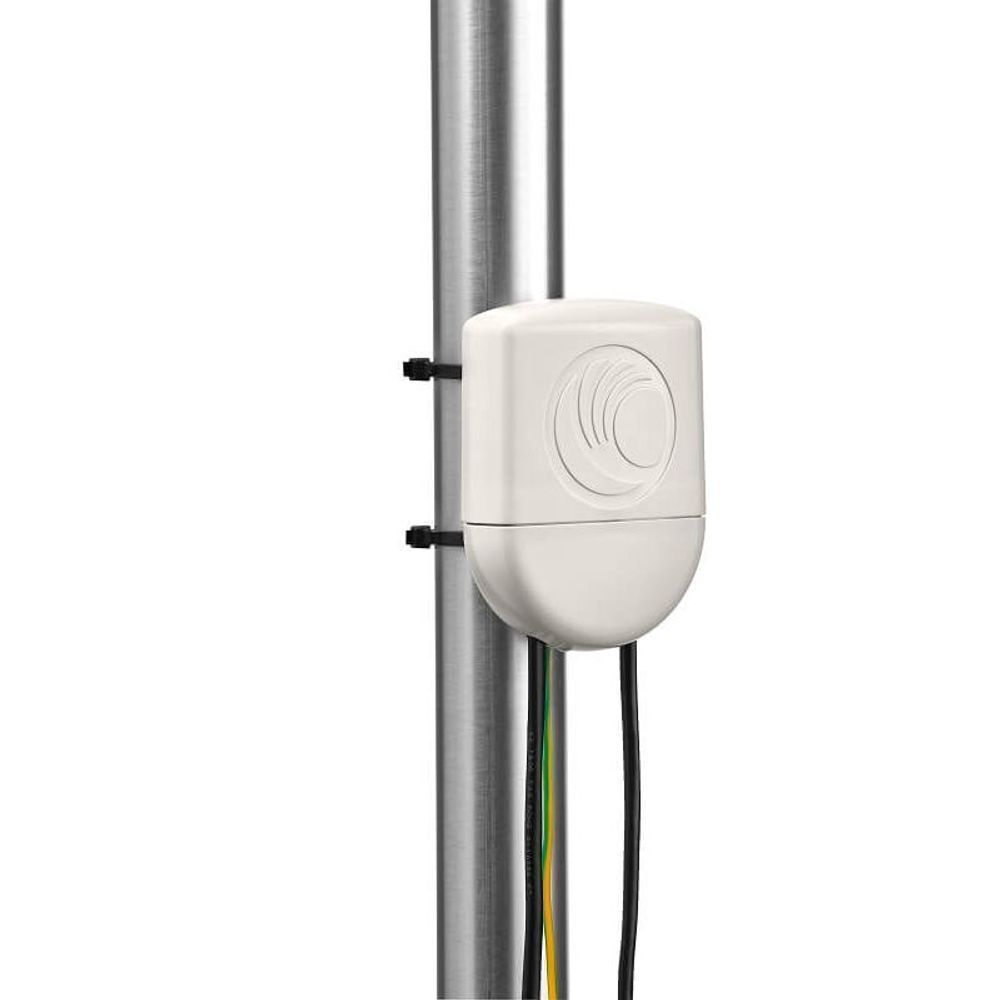

The C000000L065A Gigabit Ethernet Surge Suppressor is compatible with the PMP 450 and PMP 450b Subscriber Modules that are powered with 30V PoE injectors. It’s also compatible with the Force 180, Force 200, and other Cambium products that are powered by 30V PoE injectors. It’s compatible with both 1000BaseT (Gigabit Ethernet) and 100BaseT (Fast Ethernet). The surge suppressor ships with hardware suitable for mounting to a wall or pole.
Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.
The C000000L065A Gigabit Ethernet Surge Suppressor is compatible with the PMP 450 and PMP 450b Subscriber Modules that are powered with 30V PoE injectors. It’s also compatible with the Force 180, Force 200, and other Cambium products that are powered by 30V PoE injectors. It’s compatible with both 1000BaseT (Gigabit Ethernet) and 100BaseT (Fast Ethernet). The surge suppressor ships with hardware suitable for mounting to a wall or pole.
| Details | |
|---|---|
| Manufacturer's Product Code | C000000L065A |
| Connectors | (2) Gigabit Ethernet, RJ-45 |
| Nominal Voltage | 30V |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | TVS Diodes (Transient Voltage Suppression for longer operational life) |
| Surge Current Rating, L-G, total | 216A, 10/1000us |
| Response time | 5 nanoseconds typical |
| Dimensions | 118mm x 87.5mm x 46.5mm |
| Weight | 156gm |
| Wind Survival | 200 mph (321 km/hour) |
| Operating Temperature | -40° C to +60° C |
| Humidity | 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
| Details | |
|---|---|
| Mounting Hardware | Included |
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | C000000L065A |
| Connectors | (2) Gigabit Ethernet, RJ-45 |
| Nominal Voltage | 30V |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | TVS Diodes (Transient Voltage Suppression for longer operational life) |
| Surge Current Rating, L-G, total | 216A, 10/1000us |
| Response time | 5 nanoseconds typical |
| Dimensions | 118mm x 87.5mm x 46.5mm |
| Weight | 156gm |
| Wind Survival | 200 mph (321 km/hour) |
| Operating Temperature | -40° C to +60° C |
| Humidity | 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
