Description

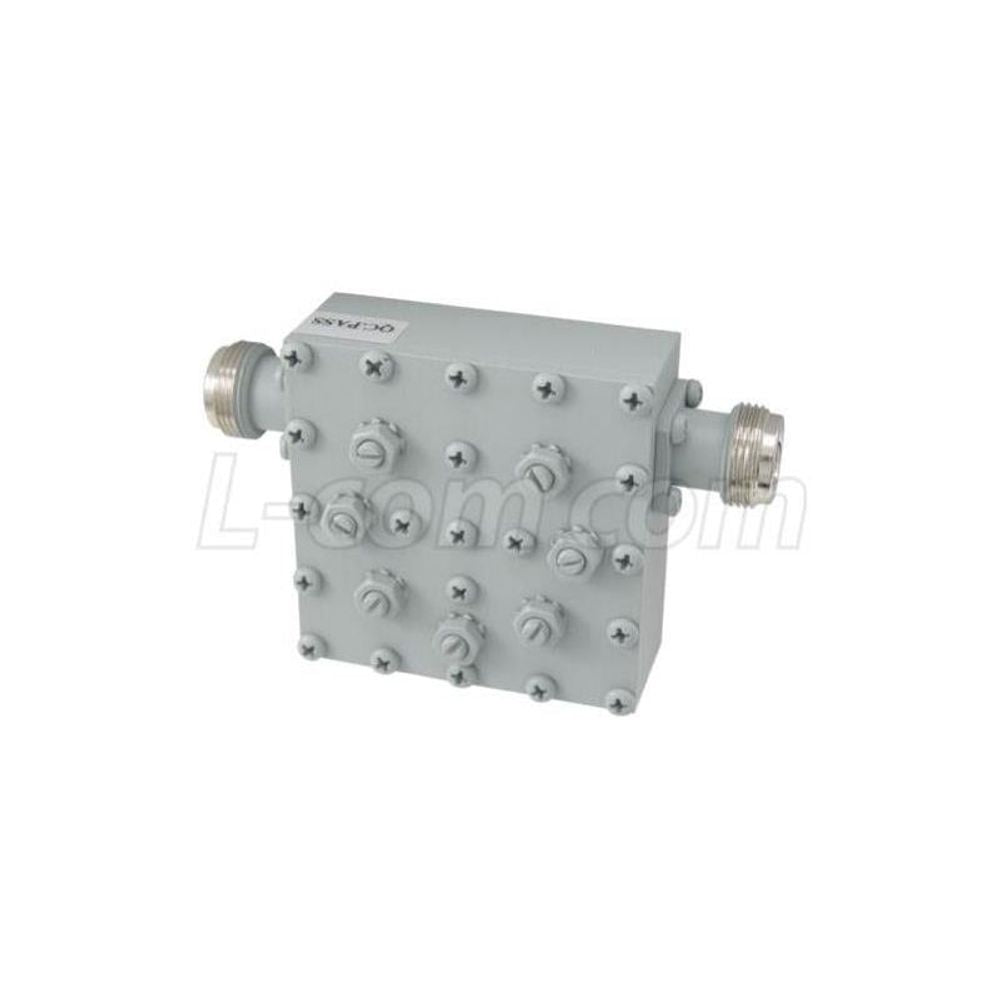

The HyperLink 2.4 GHz 4-Pole Ultra-High Q Wi-Fi full band channel filters are ideal for co-located equipment installations. These bandpass filters are designed for full band applications. By reducing interference outside the 2400 MHz ISM band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11g signals without degradation. The BPF2400 features rugged aluminium construction and is for use indoors or in weather-resistant enclosures. For outdoor applications, the BPF2400A features weatherproof construction. It is ideal for high data rate 802.11b and 802.11g Wireless LAN applications. It has N-Female Connectors, and has an optional mast mounting kit available for the outdoor model.
Features
- Ultra-High Quality Microwave Cavity Filter
- Ultra Low Insertion Loss (.25 dB nominal)
- For 2400 MHz Full Band Applications
- Reduce Interference outside the ISM Band and Improve Performance
- Provides Lightning Protection (DC Short)
| Details | |
|---|---|
| Manufacturer's Product Code | BPF2400 |
| Frequency | 2448MHz (Center Frequencies) |
| Bandwidth | 100MHz |
| Insertion Loss | 0.25 dB nominal |
| Out of Band Rejection | > 80 dB @ < 2000 MHz, > 60 dB @ > 2700 MHz |
| Connector | 2x N-Type Female |
| Operating Temperature | -40° C to +85° C |
| Dimensions | 56 x 56 x 21 mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | BPF2400 |
| Frequency | 2448MHz (Center Frequencies) |
| Bandwidth | 100MHz |
| Insertion Loss | 0.25 dB nominal |
| Out of Band Rejection | > 80 dB @ < 2000 MHz, > 60 dB @ > 2700 MHz |
| Connector | 2x N-Type Female |
| Operating Temperature | -40° C to +85° C |
| Dimensions | 56 x 56 x 21 mm |
