Name: AW3625-M-N-G - Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna with Integrated GPS
Brand: Alpha Wireless
SKU: AW3625-M-N-G
Price: 2173.5 NZD
Availability: InStock

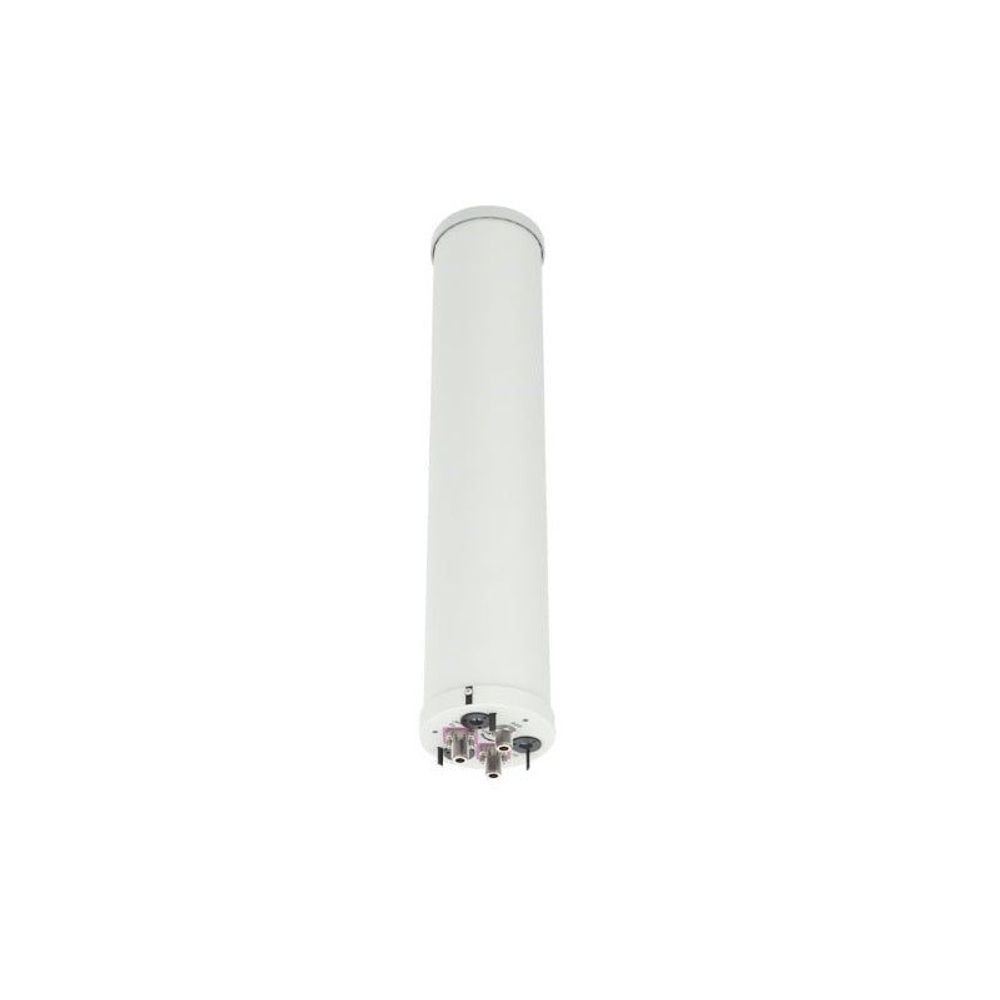

Alpha Wireless canister antenna with integrated base connectors, light gray cylindrical body

AW3625-M-N-G - Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna with Integrated GPS

AW3625-M-N-G

$2,173.50

Tax included.

2 items available

Select quantity

Description

Alpha Wireless 3300-3800 MHz Dual Slant 8.5 dBi Omnidirectional Cannister Antenna

This product was developed to offer a Tri-Sector pseudo omni solution with independent tilt control on each of the three sectors across Bands 42/43 in a small form factor cannister. It has a built in GPS antenna. Operates between 3300-3800MHz covering LTE Bands B42, 43 & 48 and 5G NR Band n78.

Alpha Wireless pseudo omni antenna provides 360° coverage whilst in an ultra-compact radome design. The wide-band antenna is designed to be installed in urban environment where low visual impact is required. There are a number of mounting options available making deployments on lamp posts, utility poles, walls and other vertical structures possible. The 2 port antenna provides 2X2 MIMO for improved data throughput with electrical variable tilt for maximum optimization.

Features

Perfect for use with Cambium PMP450i Connectorised Access Points
2x N-Type Female Connectors
Wide-band antenna that covers LTE Bands 42, 43 & 48 and 5G NR Band n78 (3300 - 3800MHz)
Optimized Pseudo omni with reduced azimuth ripple
Slim monopole design to reduce wind loading
Independent RET control for each array (x3)
Built in GPS antenna (N-Type Connector)

Details
Product Code	AW3625-M-N-G
Frequency Range	3300 - 3800MHz
Polarisation	+/- 45° Slant Linear
Gain	Basta 8.0±0.5dBi, Max 8.5dBi
Azimuth Beamwidth	360°
Elevation Beamwidth	12°
Electrical Downtilt	T0°- T10°
Electrical Downtilt Deviation	< 1°
Impedance	50 Ohms
VSWR	< 1.5
Return Loss	dB> 14
Isolation	dB> 25
Upper Sidelobe Suppression, Peak to 20º	dB> 16
Cross-Polar Discrimination	dB> 12
Maximum Effective Power Per Port	50W
Dimensions	600 x 125 mm - L x Ø
Net Weight (antenna)	3 kg
Net Weight (mount)	2 kg
Connector Type	N Type Female
Connector Quantity	2 + 1 (GPS)
Connector Position	Bottom
Frontal Windload (at Rated Wind Speed: 150km/h)	80 N
Lateral Windload (at Rated Wind Speed: 150km/h)	80 N
Survival Wind Speed	200 km/h
Radome Material	UV-Stabilised PVC
Radome Colour	RAL 7035
Product Compliance Environmental	RoHS
Lightning Protection	DC Grounded
Cold Temperature Survival	-40 ºC
Hot Temperature Survival	70 ºC
GPS Centre Frequency	1575.42MHz +/- 10MHz
GPS Antenna Gain	3 dBic @ 90°, -2dBic @ 20°
GPS Antenna Polarization	Right Hand Circular

Details
Mounting Hardware	CL-V-127 (Jubilee Clip 9.5 Stainless Steel 210mm-242mm & Mounting Kit included with Antenna)
