Name: AD-WT-5060 - Atdec Wall Mount for Display Screen - 50 kg Load Capacity - 600 x 400, 100
Brand: Atdec
SKU: AD-WT-5060
Price: 81.25 NZD
Availability: InStock

Atdec TV wall mount bracket, black steel, wide rail with VESA mounting holes

Atdec TV wall mount bracket, black metal, side view with tilt adjustment mechanism

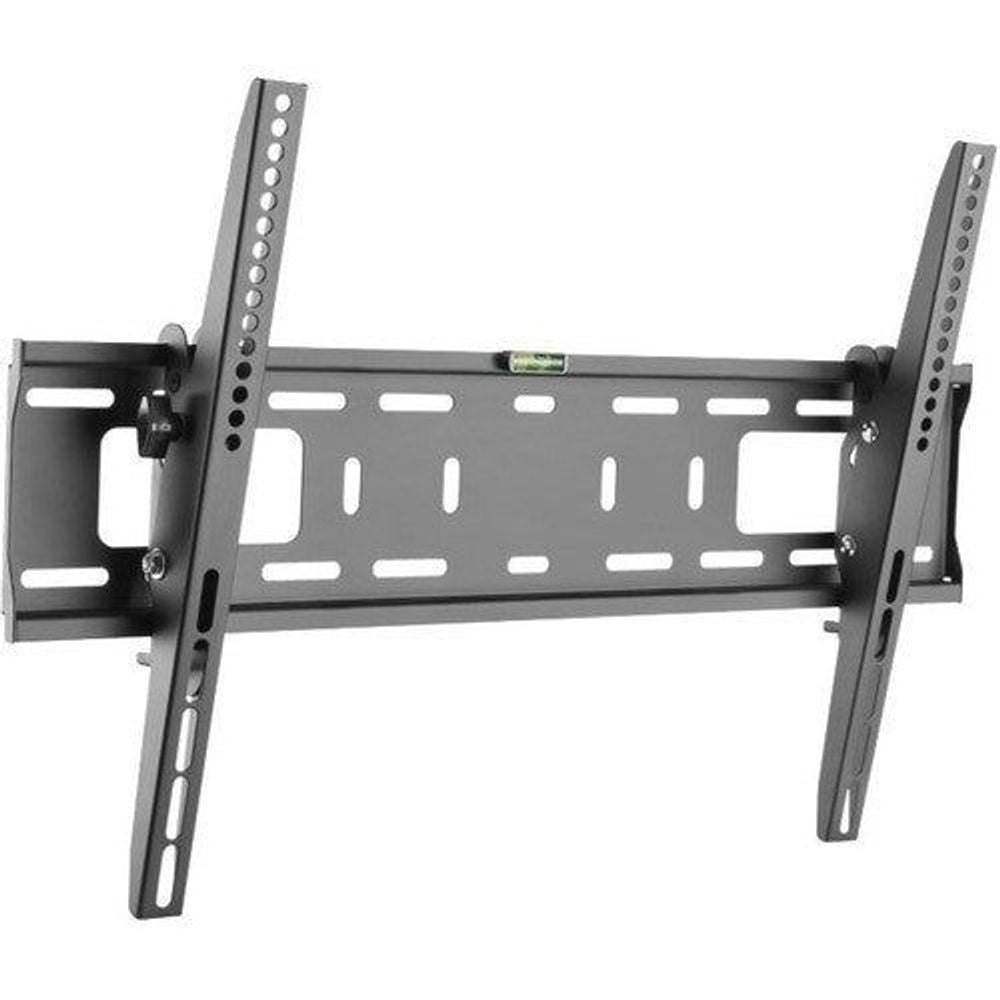

Atdec TV wall mount bracket, black steel rail with evenly spaced mounting slots

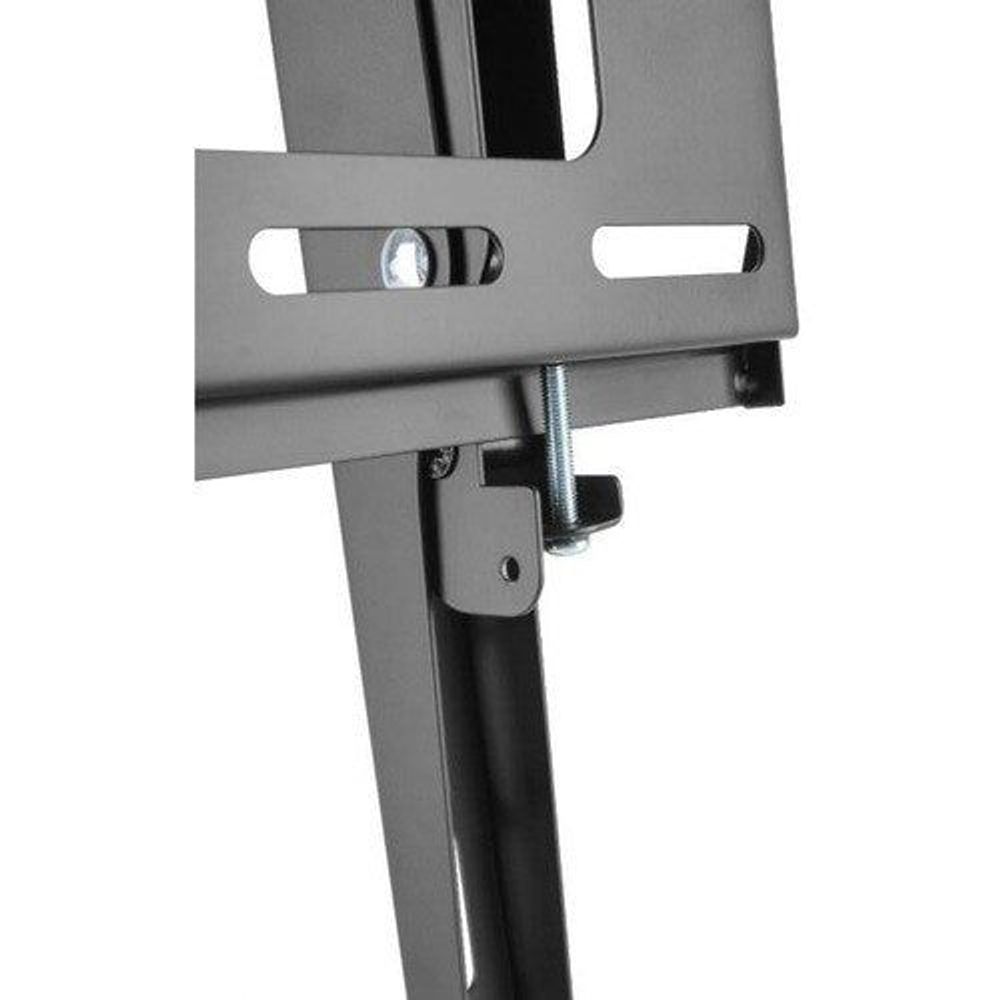

Atdec TV wall mount bracket, close-up of hinge and mounting hardware on frame

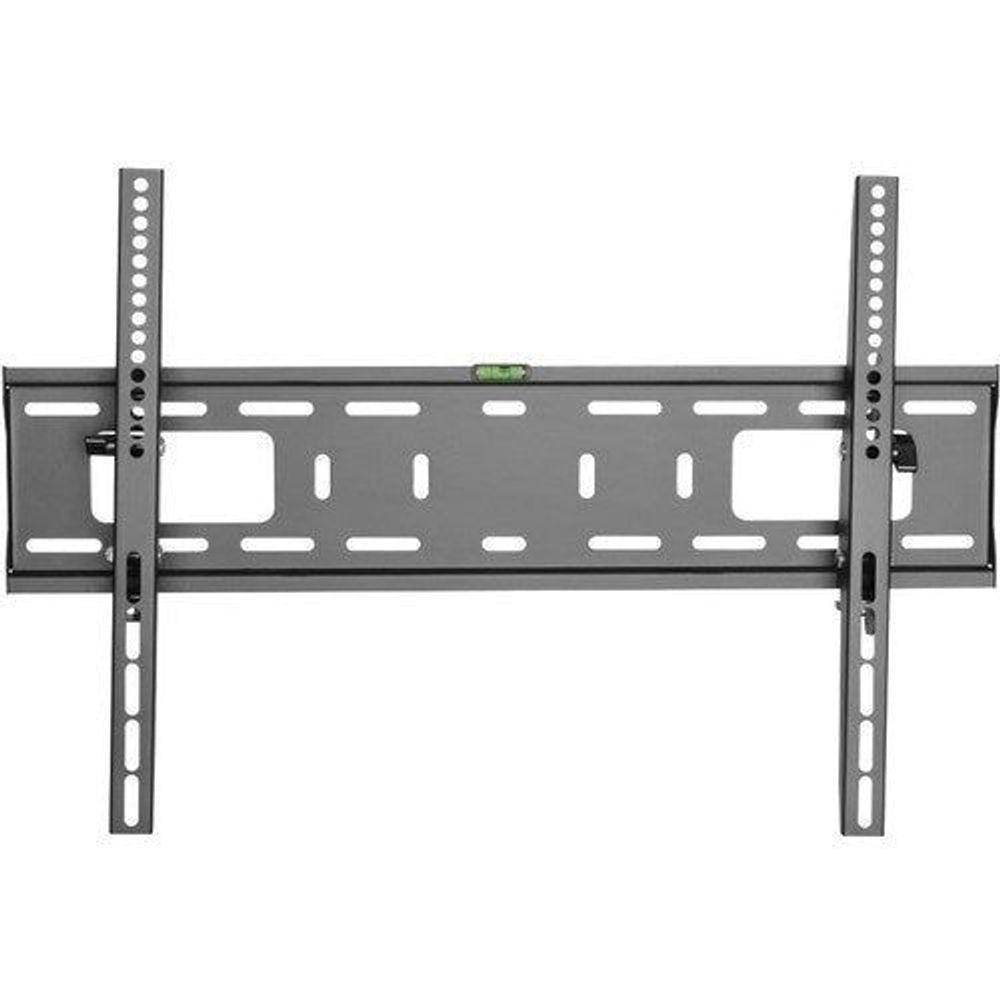

Atdec TV wall mount bracket, black steel with two vertical support rails

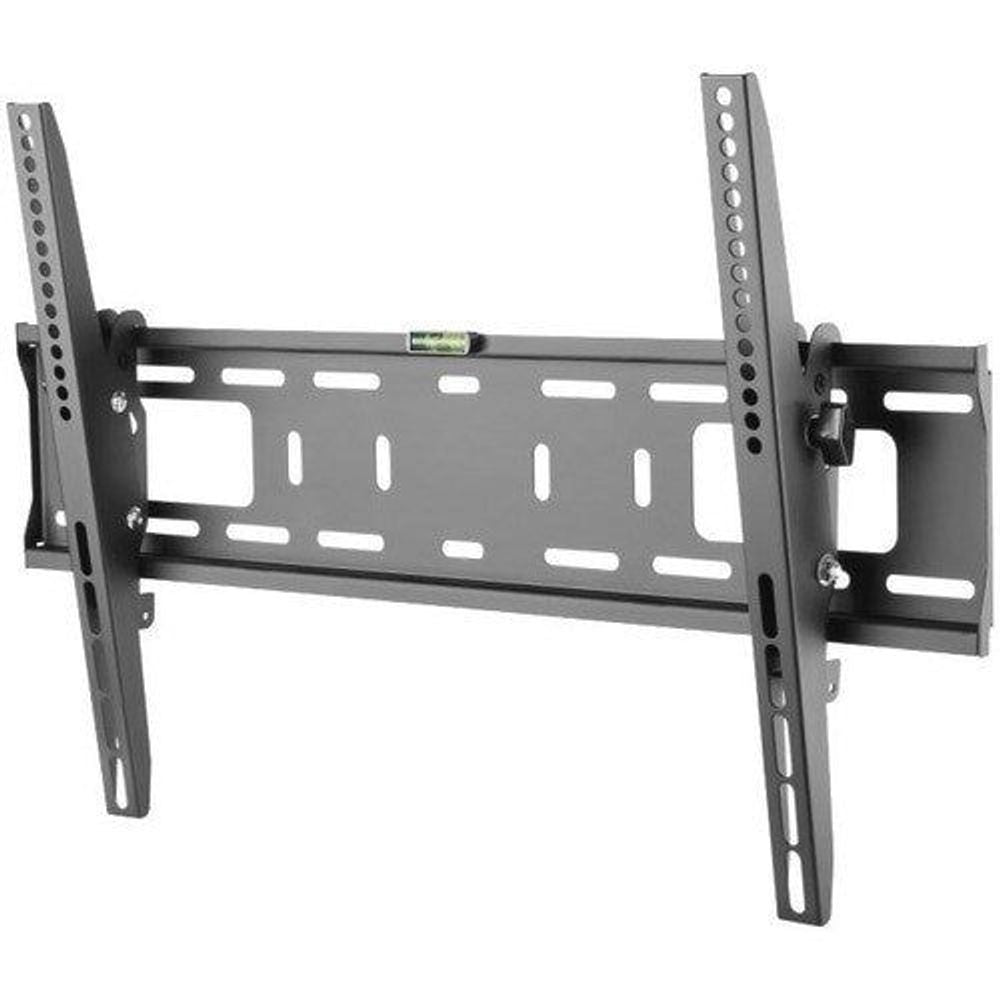

Atdec TV wall mount bracket, black steel, angled view of side arms and rail

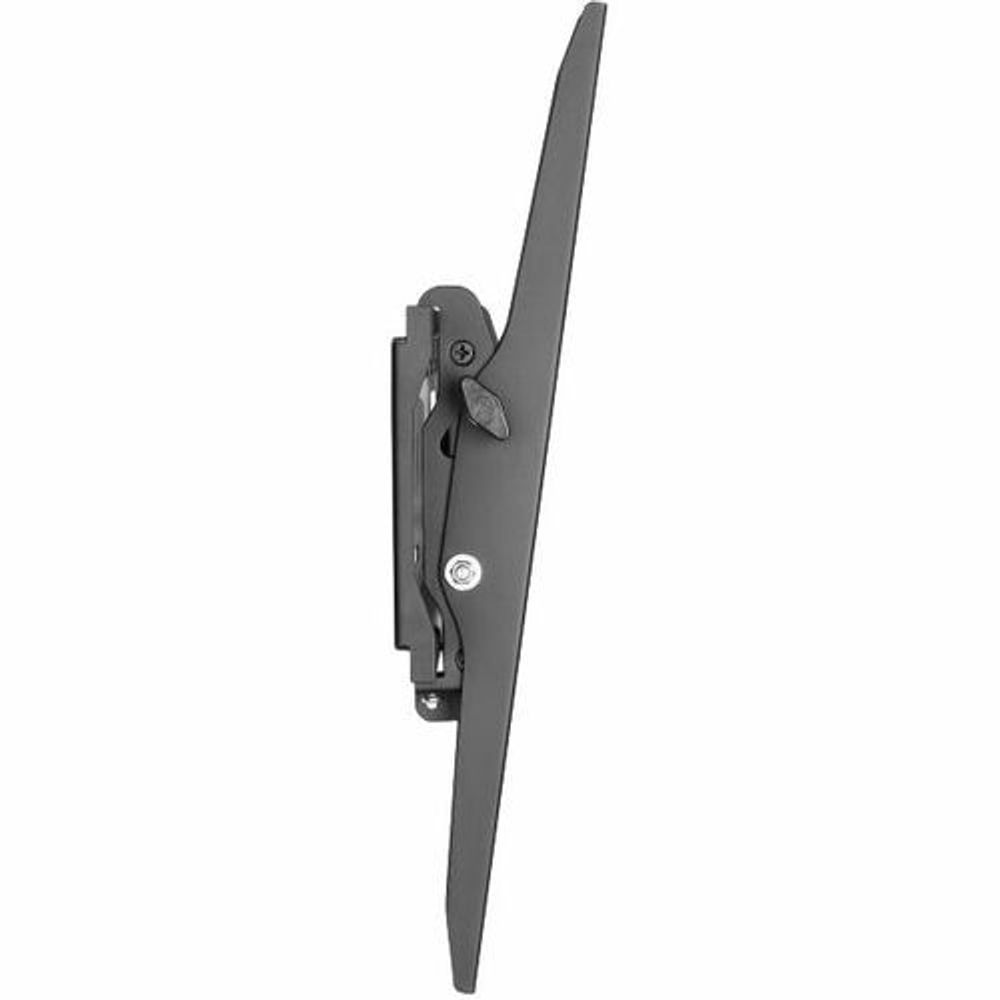

Atdec TV wall mount bracket, black metal, slim side bracket with screw points

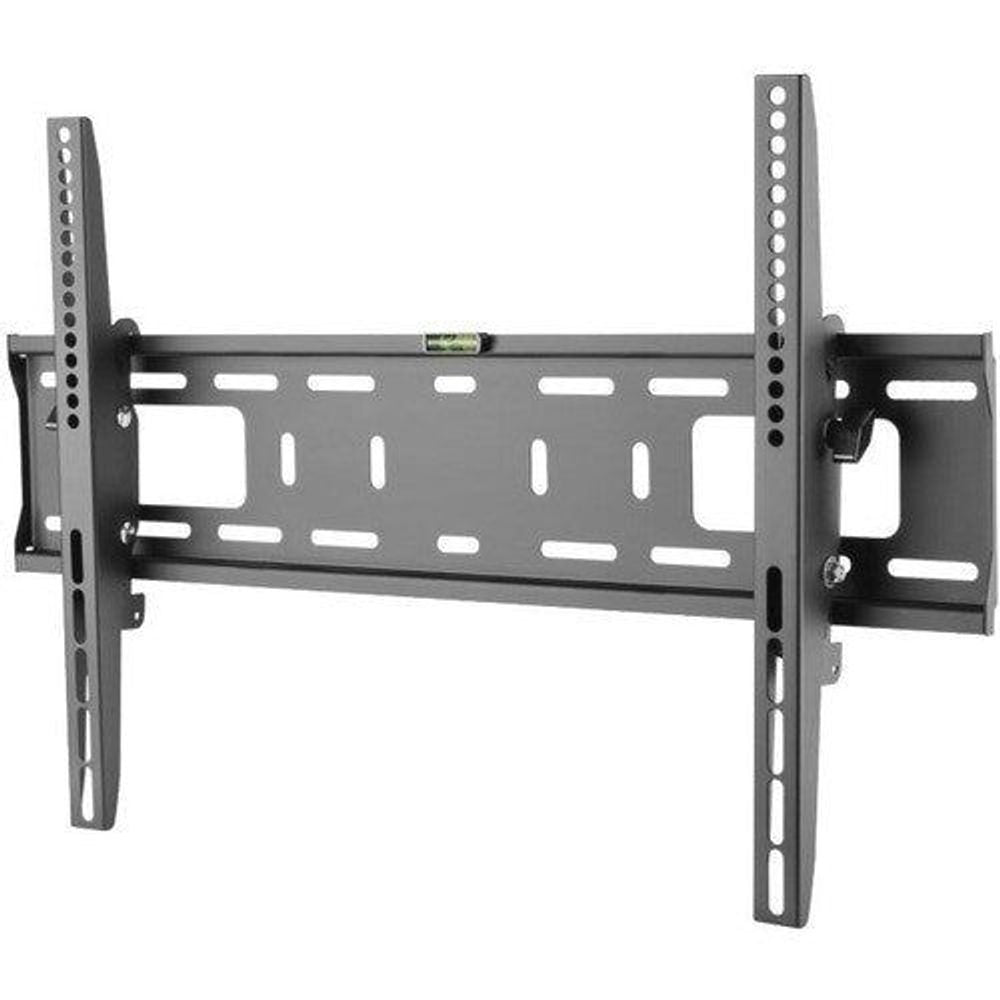

Atdec TV wall mount bracket, black steel rail and side arms with VESA holes

AD-WT-5060 - Atdec Wall Mount for Display Screen - 50 kg Load Capacity - 600 x 400, 100

AD-WT-5060

36% OFF

$81.25 $127.65

Tax included.

9 items available

Select quantity

Description

Mount for tilted displays with space for devices at rear. Brackets for 24" stud spacing. Displays to 110lbs (50kg), VESA to 600x400.

AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24" stud spacing.

This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.

The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2") space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.

AD-WT-5060 suits most types of walls (with appropriate hardware) and demonstrates Adtec's easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.

Consider AD-WT-5040 for narrower stud spacing.

Choose me for:

Stud walls with 24" spacing
Tilted display capability
Space behind display
Robust functionality & long service life
Easy, safe & tidy installation
Superseding Atdec's TH-3060-UT

Specifications

Miscellaneous

Application/Usage	Domestic
	Stud
	Commercial
	Industrial
	Wall

Physical Characteristics

VESA Mount Compatible	Yes
Mounting Pattern	400 x 400
	400 x 300
	400 x 200
	300 x 300
	300 x 200
	600 x 200
	600 x 400
	100 x 100
	200 x 100
	200 x 200
Product Material	Steel

General Information

Product Type	Wall Mount
Manufacturer Part Number	AD-WT-5060
Manufacturer Website Address	http://www.atdec.com
Manufacturer	Atdec Pty Ltd
Product Name	Tilt Wall Mount 5060
Brand Name	Atdec

Product Information

Device Supported	Display Screen
Features	-10° Tilt
	Adjustable Angle
	5° Tilt
	Tilt
	Horizontal Adjustment
	Spirit Level
	Robust
	Lateral Adjustment
Maximum Load Capacity	50 kg
Mount Pattern	Universal

Warranty

Brand

Atdec

Restock ETA (if applicable)

Product Details

Specifications

Atdec
HeadingAD-WT-5060 - Atdec Wall Mount for Display Screen - 50 kg Load Capacity - 600 x 400, 100

Description

Mount for tilted displays with space for devices at rear. Brackets for 24" stud spacing. Displays to 110lbs (50kg), VESA to 600x400.

AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24" stud spacing.

This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.

Consider AD-WT-5040 for narrower stud spacing.

Choose me for:

Stud walls with 24" spacing
Tilted display capability
Space behind display
Robust functionality & long service life
Easy, safe & tidy installation
Superseding Atdec's TH-3060-UT

Specifications

Miscellaneous

Application/Usage	Domestic
	Stud
	Commercial
	Industrial
	Wall

Physical Characteristics

VESA Mount Compatible	Yes
Mounting Pattern	400 x 400
	400 x 300
	400 x 200
	300 x 300
	300 x 200
	600 x 200
	600 x 400
	100 x 100
	200 x 100
	200 x 200
Product Material	Steel

General Information

Product Type	Wall Mount
Manufacturer Part Number	AD-WT-5060
Manufacturer Website Address	http://www.atdec.com
Manufacturer	Atdec Pty Ltd
Product Name	Tilt Wall Mount 5060
Brand Name	Atdec

Product Information

Device Supported	Display Screen
Features	-10° Tilt
	Adjustable Angle
	5° Tilt
	Tilt
	Horizontal Adjustment
	Spirit Level
	Robust
	Lateral Adjustment
Maximum Load Capacity	50 kg
Mount Pattern	Universal
