Name: TH-1040-CTL - Atdec TH-1040-CTL Pole Mount for Flat Panel Display - Black - Height Adjust
Brand: Atdec
SKU: TH-1040-CTL
Price: 535.6 NZD
Availability: OutOfStock

Black pole mount display bracket with vertical adjustable post

Black VESA mounting arm and plate with adjustment hardware

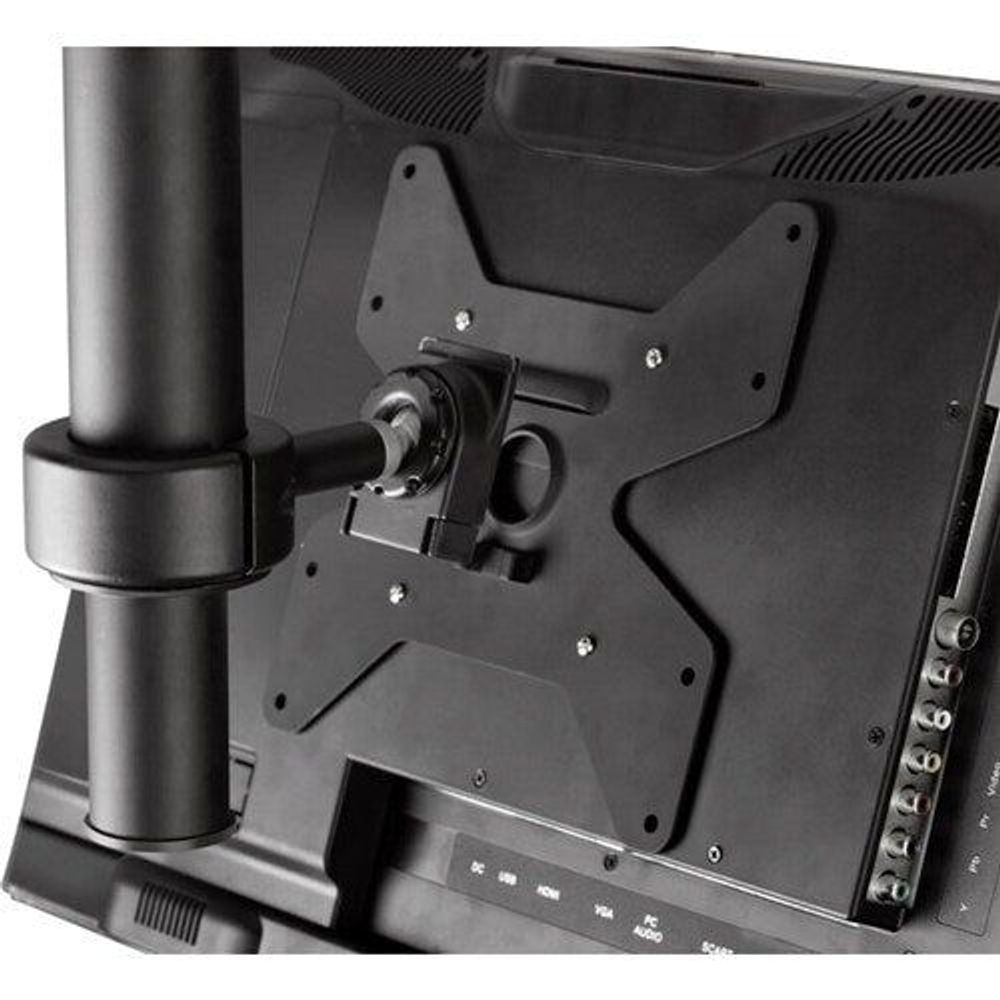

Black metal VESA plate with center mount and support arms

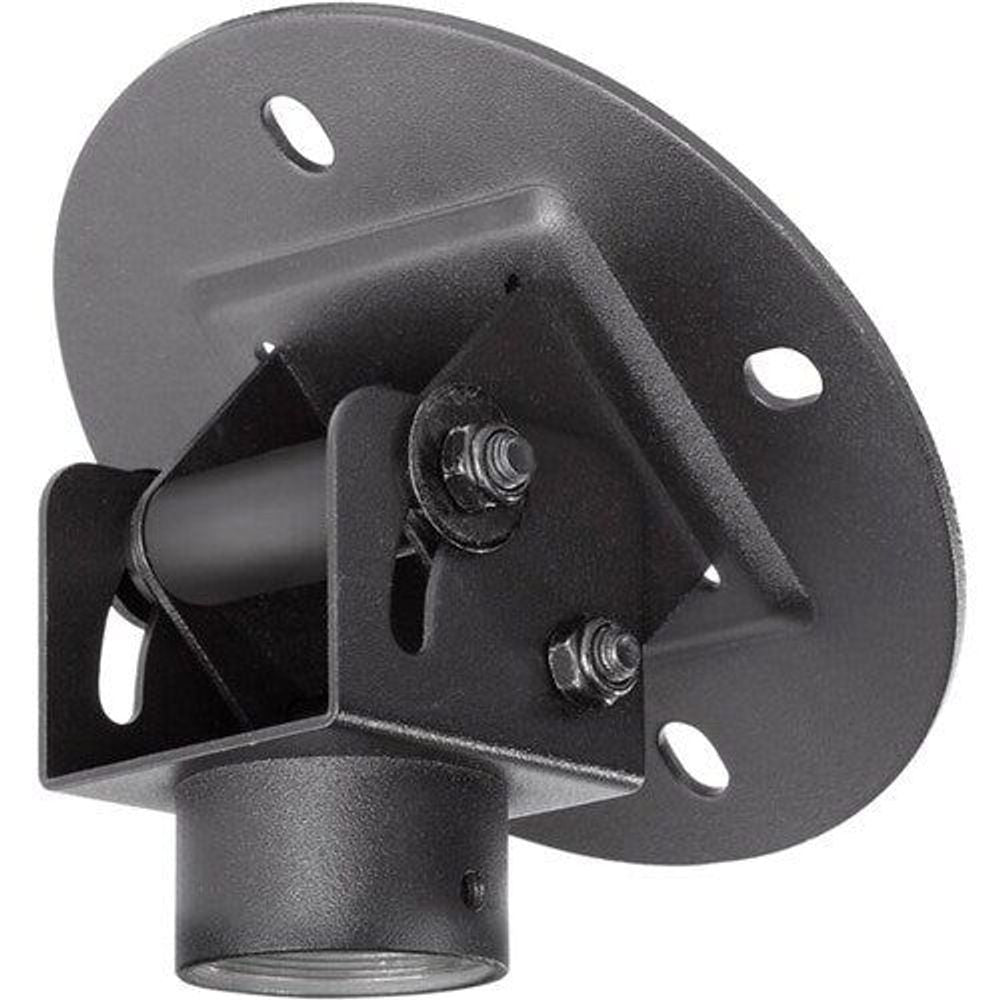

Black round mounting plate with screw holes and bracket arm

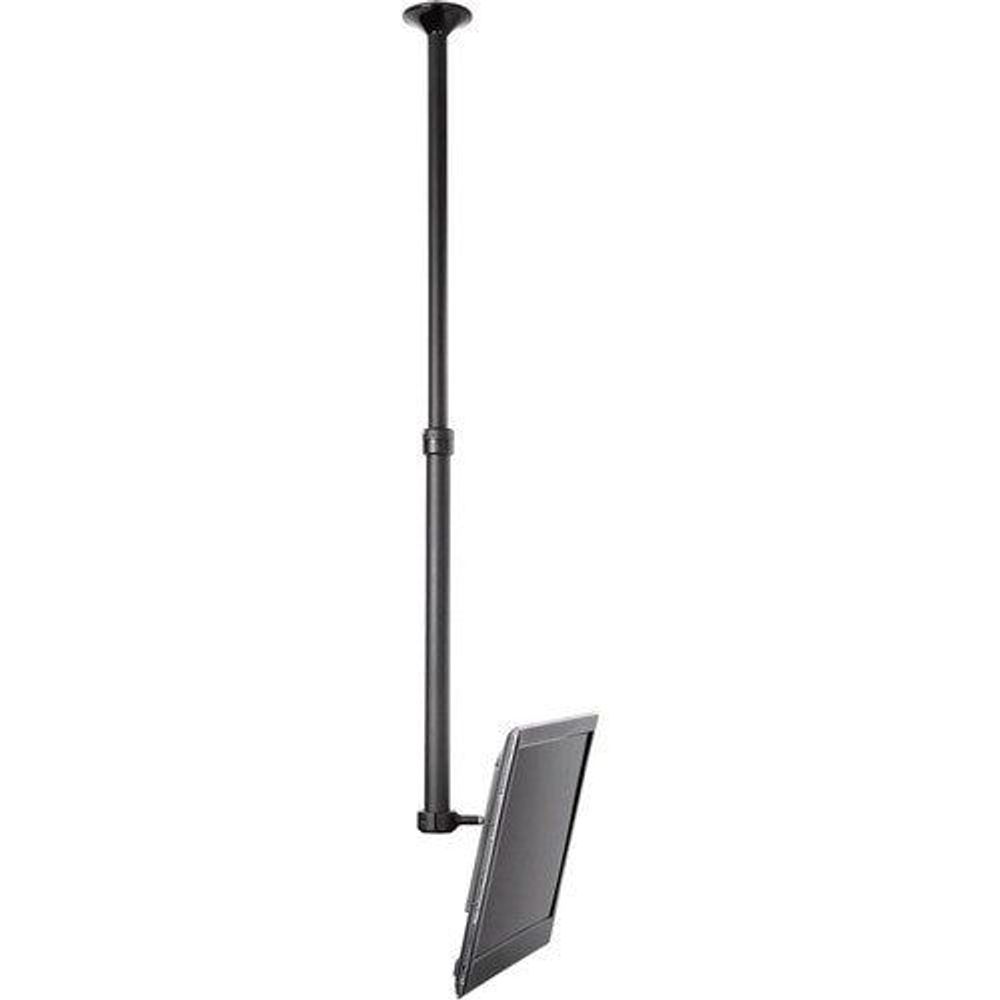

Black height-adjust pole mount with slim display bracket

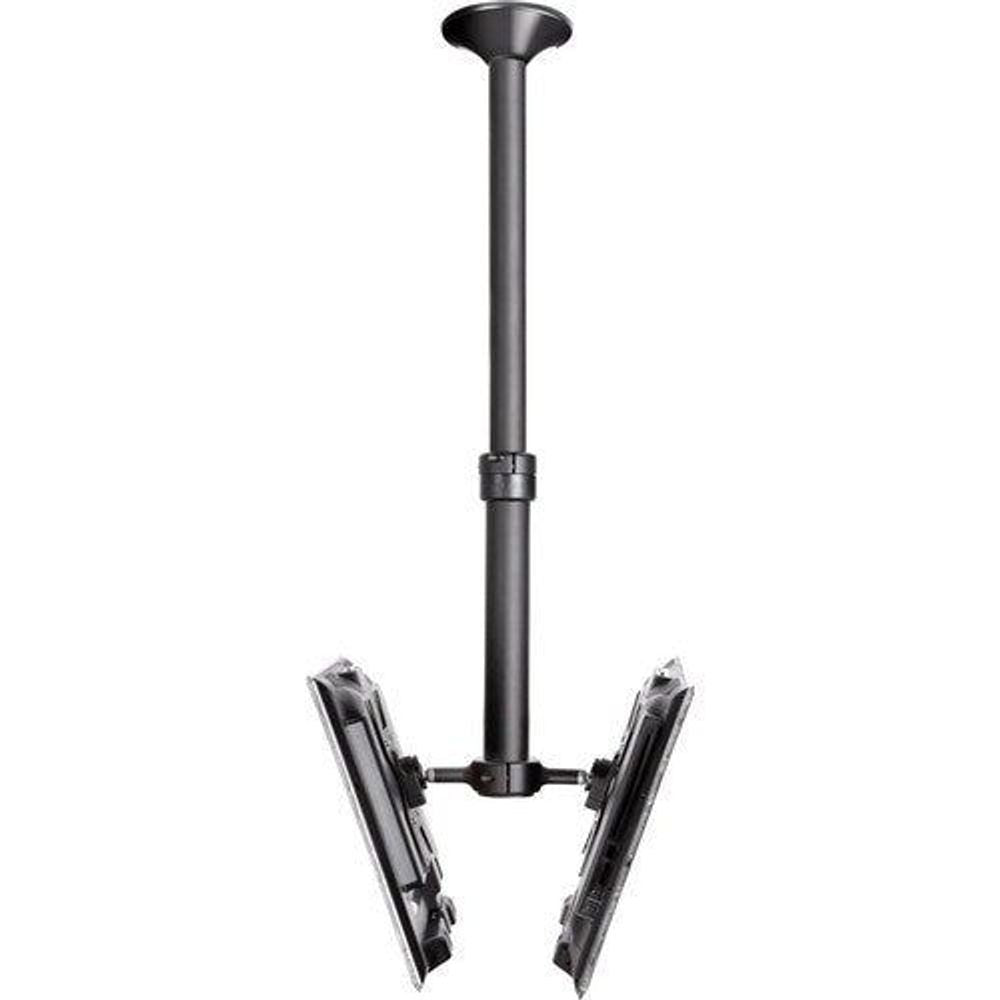

Black dual-arm display mount with vertical pole and base

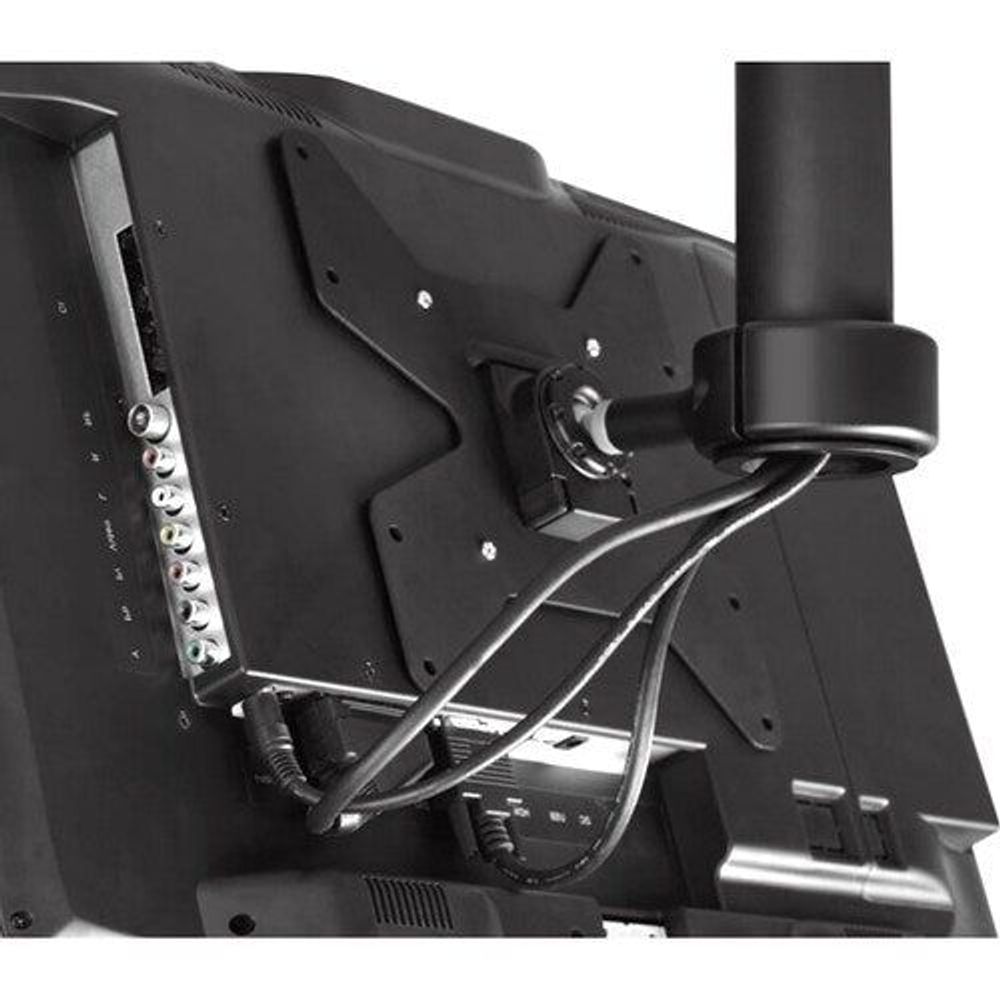

Black display mounting panel with VESA arm and cable connections

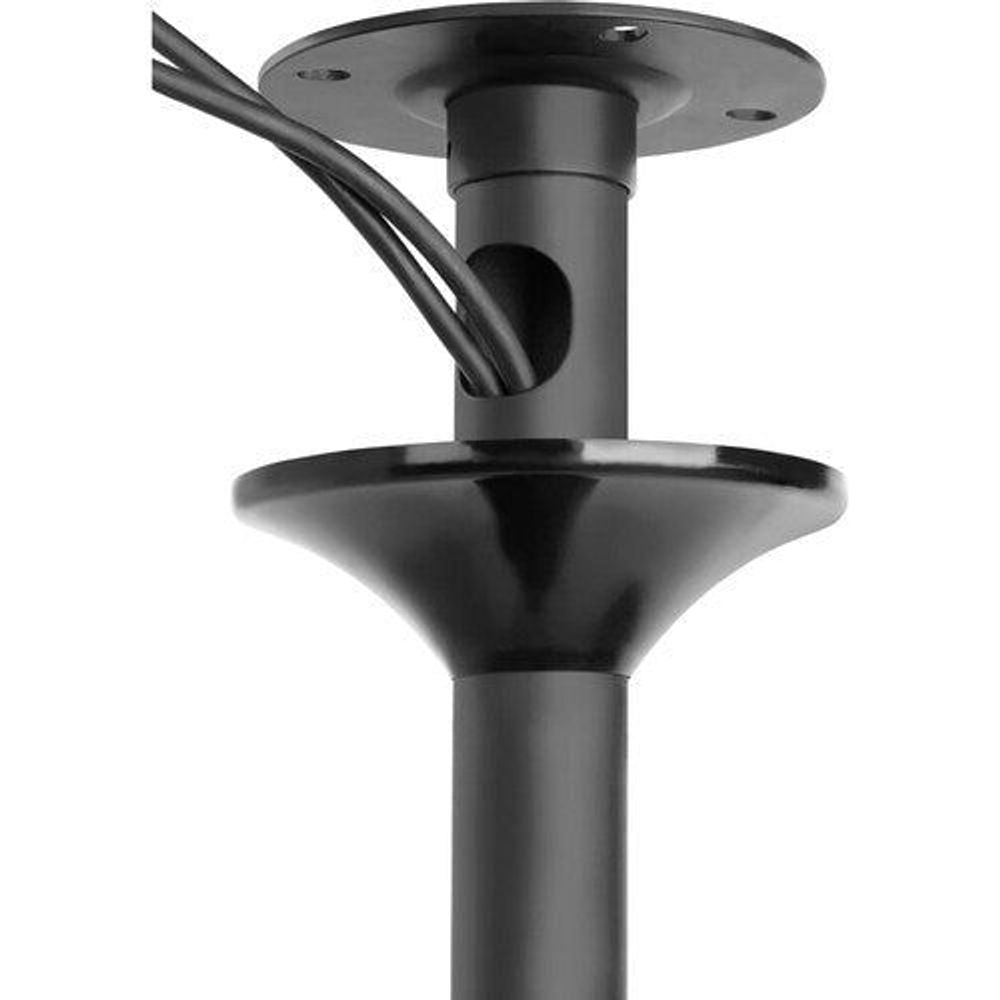

Black top mounting hub with round plate and central pole column

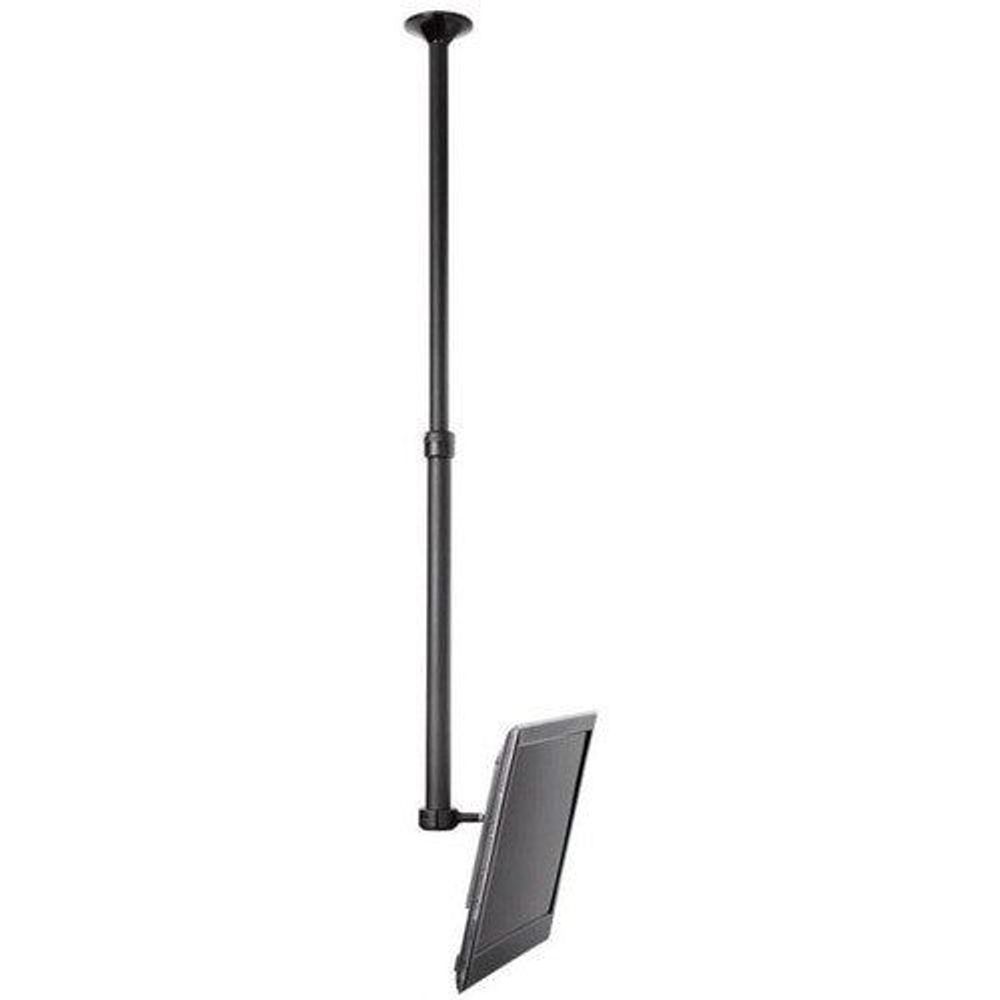

Black pole mount bracket with vertical post and display mounting arm

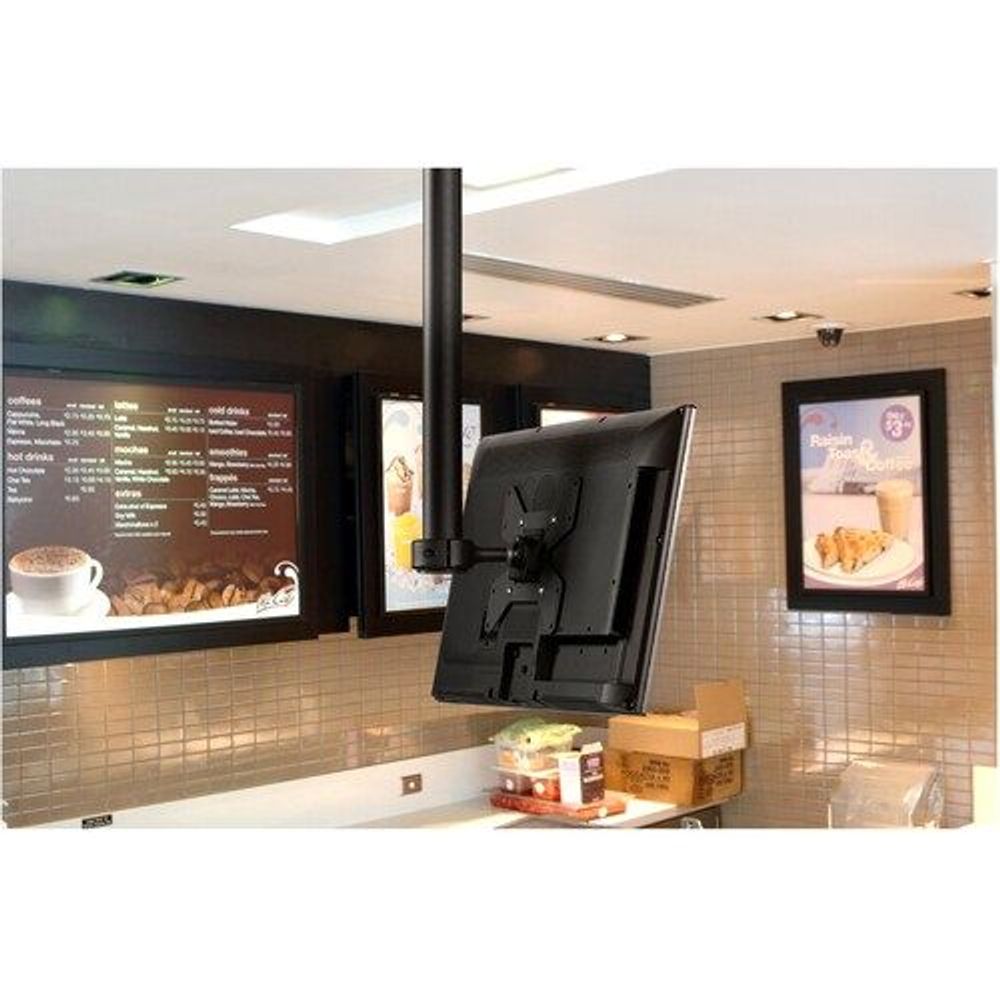

Black pole mount display bracket holding a flat screen on the post

TH-1040-CTL - Atdec TH-1040-CTL Pole Mount for Flat Panel Display - Black - Height Adjust

TH-1040-CTL

3% OFF

$535.60 $555.70

Tax included.

Out of stock

Select quantity

Description

The TH-1040-CT is a versatile ceiling mount ideal for medium size (32in-46in) displays. It offers multiple adjustment points, including 360° rotation around the pole, tilt, pan and landscape/portrait display orientation. The telescopic pole enables easy display positioning at the desired height. Installation is simple, with built-in safety features to prevent the telescopic poles separating. Cables are run through the pole for a clean and professional finish. Two options are available:

TH-1040-CTS - pole adjustment length from 15.75in to 35.43in
TH-1040-CTL - pole adjustment length from 35.43in to 70.87in

This mount can be upgraded to dual back-to-back or dual vertical configurations (TH-1040-CT-B2B accessory sold separately).

Specifications

Miscellaneous

Additional Information	Telescopic pole adjustment from: 35.43" - 70.87" (900mm to 1800mm) Secondary display height adjustment of 130.12" (765mm) Display 360 degrees rotation around the pole Quick release mechanism for easy display attachment/removal with security screw for theft resistance Ball joint mechanism allows for display angular adjustment of 20 degrees in any direction Portrait to landscape rotation
Package Contents	1 x Ceiling Plate 1 x Large VESA Plate 1 x Small VESA Plate 1 x Ceiling Plate Cover 1 x Pole Assembly 1 x Tension Tool 4 x Coach Screw 4 x Nylon Anchor 4 x M4 Washer 4 x M5 Washer 4 x M10 Washer 4 x M4 Spacer 4 x M5 Spacer 4 x M6 Spacer 1 x Security Screw 1 x Set Screw 1 x 2mm Allen Key 1 x 2.5mm Allen Key 1 x 3mm Allen Key 1 x 5mm Allen Key 4 x M4 x 16mm Display Mounting Screws 4 x M4 x 25mm Display Mounting Screws 4 x M5 x 16mm Display Mounting Screws 4 x M5 x 25mm Display Mounting Screws 4 x M6 x 16mm Display Mounting Screws 4 x M6 x 30mm Display Mounting Screws
Compatibility	LED LCD
Assembly Required	Yes

Product Information

Device Supported	Flat Panel Display
Features	360° Rotation
	Tilt
	Swivel
	Quick Release Mechanism
	Anti-theft
	Cable Management
	Pan
Maximum Load Capacity	24.95 kg
Maximum Screen Size Supported	160 cm (63")
Number of Displays Supported	1
Height Adjustable	Yes

General Information

Product Type	Pole Mount
Manufacturer Part Number	TH-1040-CTL
Manufacturer Website Address	http://www.atdec.com
Manufacturer	Atdec Pty Ltd
Product Model	TH-1040-CTL
Product Name	TH-1040-CTL Ceiling Telescopic Long Pole Mount
Brand Name	Atdec

Physical Characteristics

VESA Mount Compatible	Yes
Mounting Pattern	100 x 100
	200 x 200
	75 x 75
	200 x 100
Product Color	Black
Product Material	Aluminium
	Plastic
	Steel
