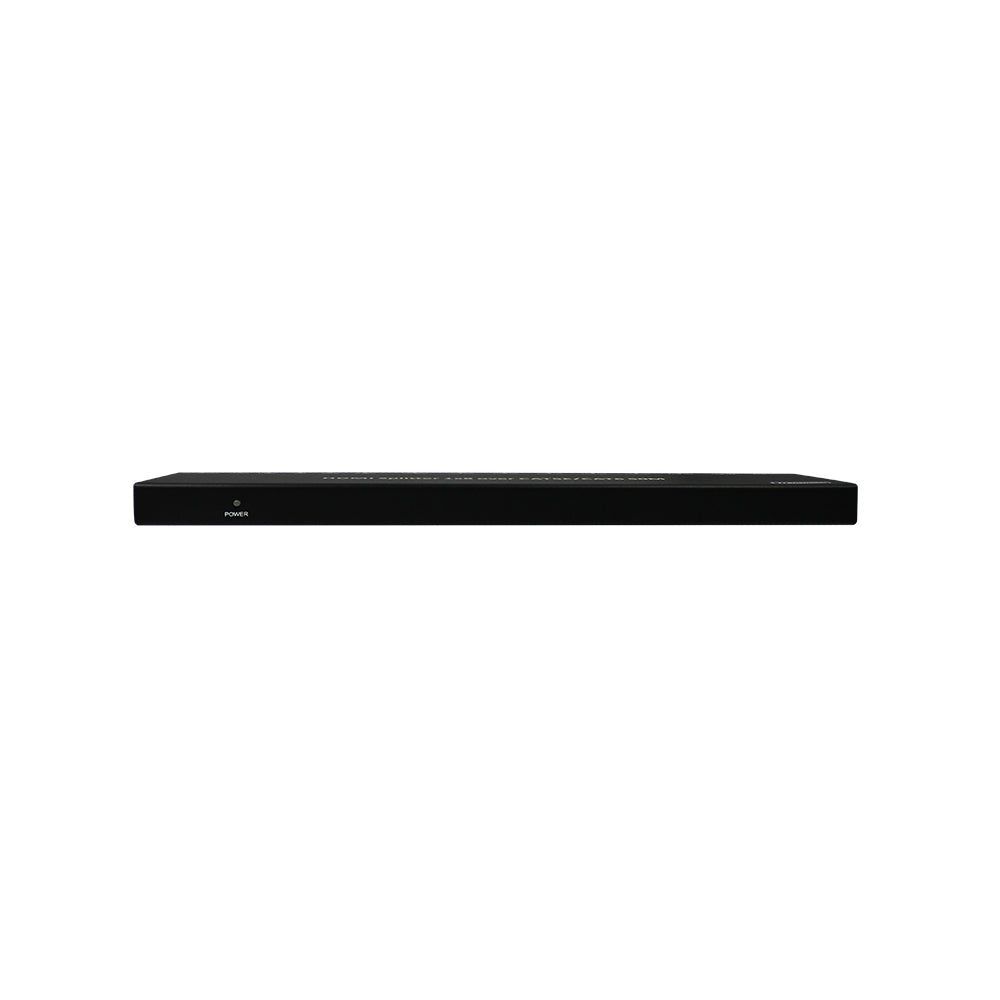

8 Way HDMI Splitter-Extender ( ARC-SP18EX ) – Arco

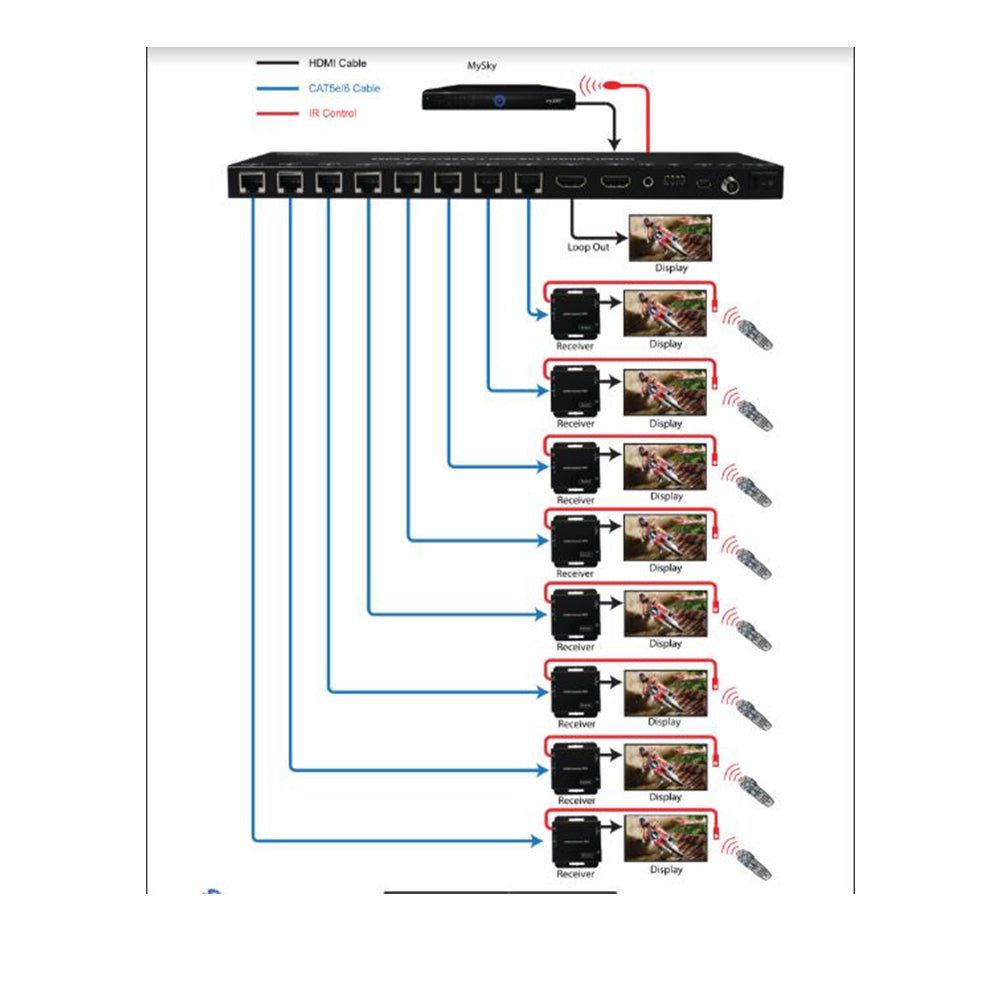

The 8 way HDMI Splitter-Extender distribution hub featuring pass through HDMI connections, eight extended distance, Ethernet-enabled CAT outputs and display control capability. Each output transmits AV and returns control signals up to 50 metres. Features include EDID management, return IR, PoE for powering remote receivers and supports resolution up to 1080p@60Hz.

Features
Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
Full HD support: 1080p@60Hz@24 bit/pixels.
Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
Operates for TMDS clock frequencies up to 148.5MHz.
Support Power over cable function.
Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission.
UTP cable termination follows the standard of IEEE-568B.
Supports EDID control via EDID selector.
Specifications
HDMI Compliance HDMI 1.3
HDCP Compliance HDCP1.2
Video Bandwidth 1.65G
Video Resolutions up to 1080P@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS- HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Inputs 1x HDMI Type A [19-pin female]

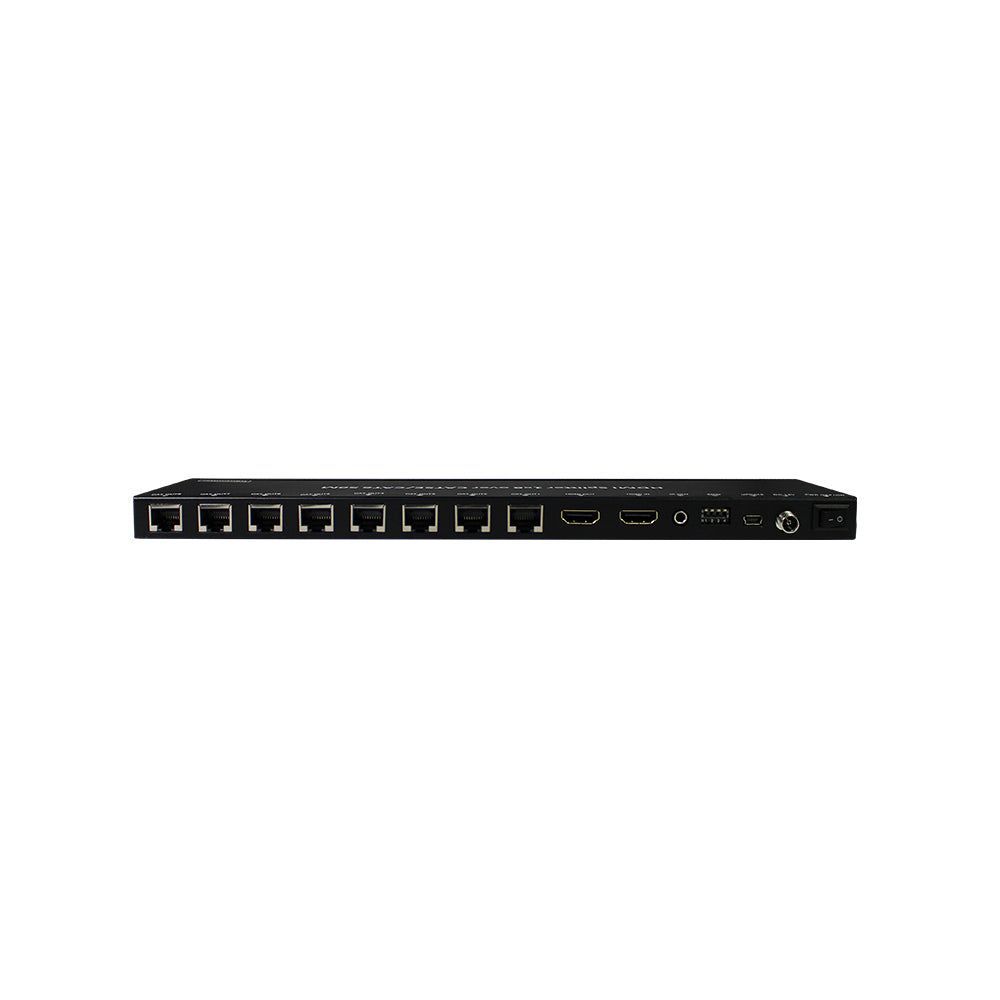

Outputs 1x HDMI Type A [19-pin female], 8x CAT[RJ45], 1x IR OUT[3.5mm Stereo Mini-jack]
Housing Metal Enclosure
Dimensions 295mm [W] x 83mm [D] x 17mm [H]
