Digital Modulator DVB-T With IR Return Path (ARC-HDM-IR) – Arco

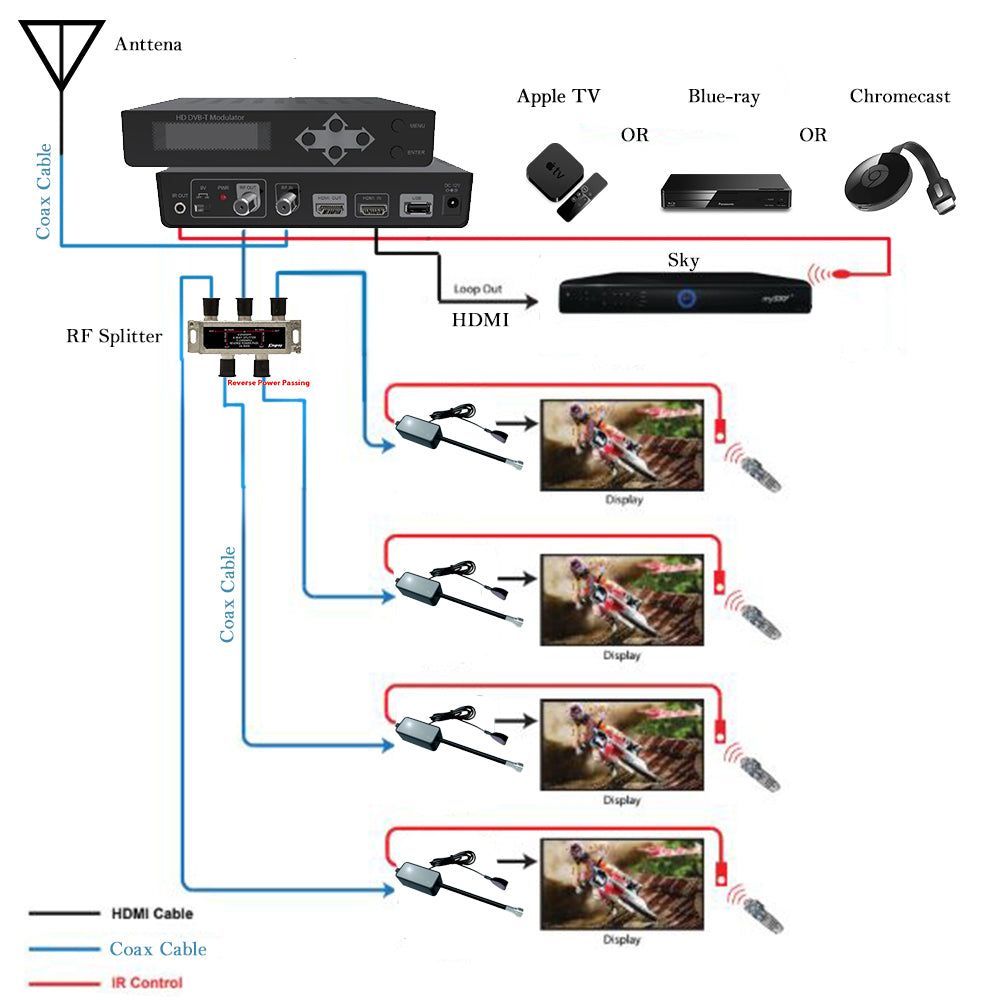

The Digital Modulator DVB-T is able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input. It is an H264 encoding, DVB-T modulation integrated device to convert HDMI signal to DVB-T RF out. It has been equipped with one channel HDMI input, one HDMI out(HDMI pass-through), and one DVB-T RF out. The Digital Modulator DVB-T adjusts the compression rate to the available bandwidth, using the modulation DVB-T parameters. It converts HDMI signal to DVB-T RF out with IR return path to allow channel changing from other rooms. Able to control remote control signals easily from coaxial cable. Long transmission distance and Simple Plug-and-Play installation

What’s in the Box
One DVB-T Modulator with IR return path
One power adaptor
One IR Emitter
Specifications
Input Channel  1
Video HDMI
Video System 480i/p, 576i/p, 720p, 1080i/p
Audio system HDMI
Connections
HDMI IN HDMI IN
HDMI OUT  HDMI PASS THROUGH
RF Output (9VDC) RF outputs ( providing accessory power supply 9 volts DC for IR Pass)
DC Switch Power supply 9 volts DC for IR Pass
RF Input RF Combiner
USB Firmware upgrade
IR Out IR Emitter output

  **IR Receiving Eye Sold Separately
