ARC-1204A - IR Repeater Kit (ARC-1204A ) – Arco

ArcoSKU: ARC-1204A

Price:
Sale price$98.66 NZD

Tax included

Stock:
Only 11 units left

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days

Description
IR Repeater Kit (ARC-1204A ) – Arco

The ARC-1204A - IR Repeater Kit (ARC-1204A ) – Arco is a convenient and powerful device for controlling audio equipment. It features six emitter output connections, a convenient IR confirmation LED, a status power receptacle with LED indicator, and a three conductor 1/8” receptacle for interfacing with many brands of freestanding IR receivers.

The kit also includes a CFL friendly IR target, a blue IR confirmation LED, a wide band IR 3 m cable with 3.5 mm stereo mini plug, and a 12V DC 30mA max. power supply. The emitter is round shaped with a transparent housing, a 10ft cable length, and a 3.5mm standard mono plug. It also has a self-adhesive tape for quick and easy fixing on any hard, clean and dry surface.

Specifications

Connecting Block

Six emitter output connections

Convenient IR confirmation LED

Status power receptacle with LED indicator

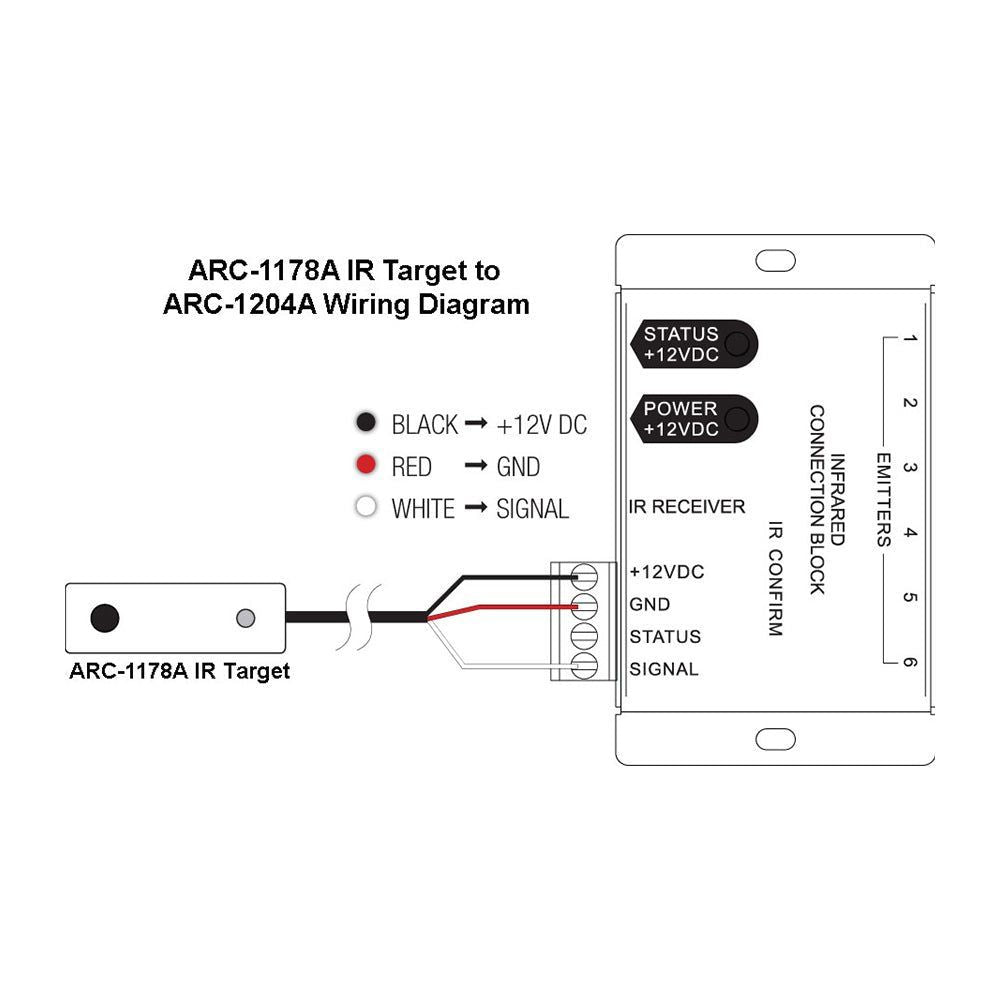

3 conductor 1/8?? receptacle for interfacing with many brands of free standing IR receivers

Compact size for mounting near audio equipment

82 (W) x 60 (H) x 27 (D) mm

110 g

IR Target

CFL friendly – allows installation in areas with compact fluorescent lighting.

Blue IR confirmation LED

Wide band IR

3 m cable with 3.5 mm stereo mini plug

Receive Frequency Range: 34 kHz ~ 60 kHz

Transmit Frequencies: 38 kHz ~ 56 kHz

Range: 12 meters @ 38 kHz, 7.6 meters @ 56kHz

Power: 12V DC 30mA max.

45 (L) x 14 (W) x 13 (H) mm

Cord Length: 3 meters

Connector Type: 3.5mm TRS mini plug

IR Emitter

Round shape, with elegant & compact size

Transparent housing

10ft cable length

3.5mm standard mono plug

With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface

12 V 200 mA power supply
