Name: Antec FLUX PRO Full Tower Case
Brand: Antec
SKU: CASE-DP-FLUXPRO
Price: 437.57 NZD
Availability: OutOfStock

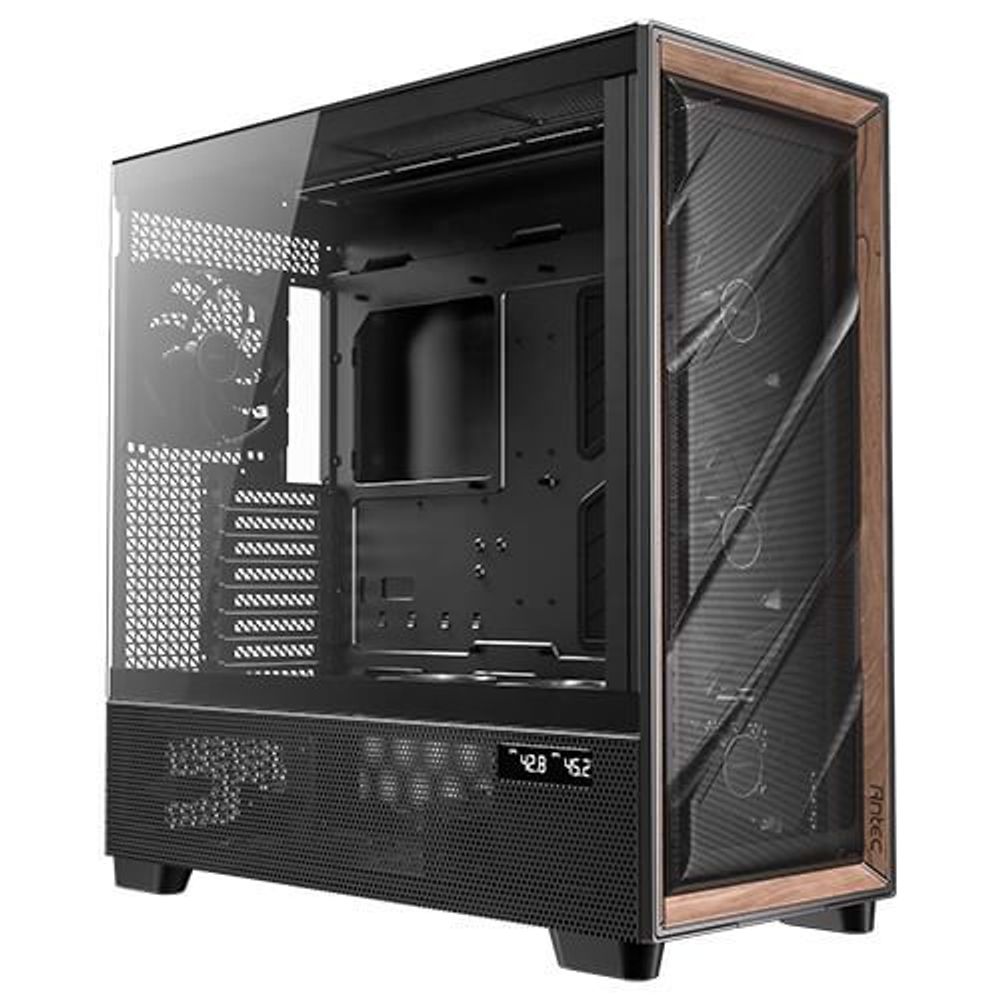

Full tower PC case with open side panel, dark interior, wood-trim frame

Full tower PC case with open side panel, dark interior and wood-trim edge

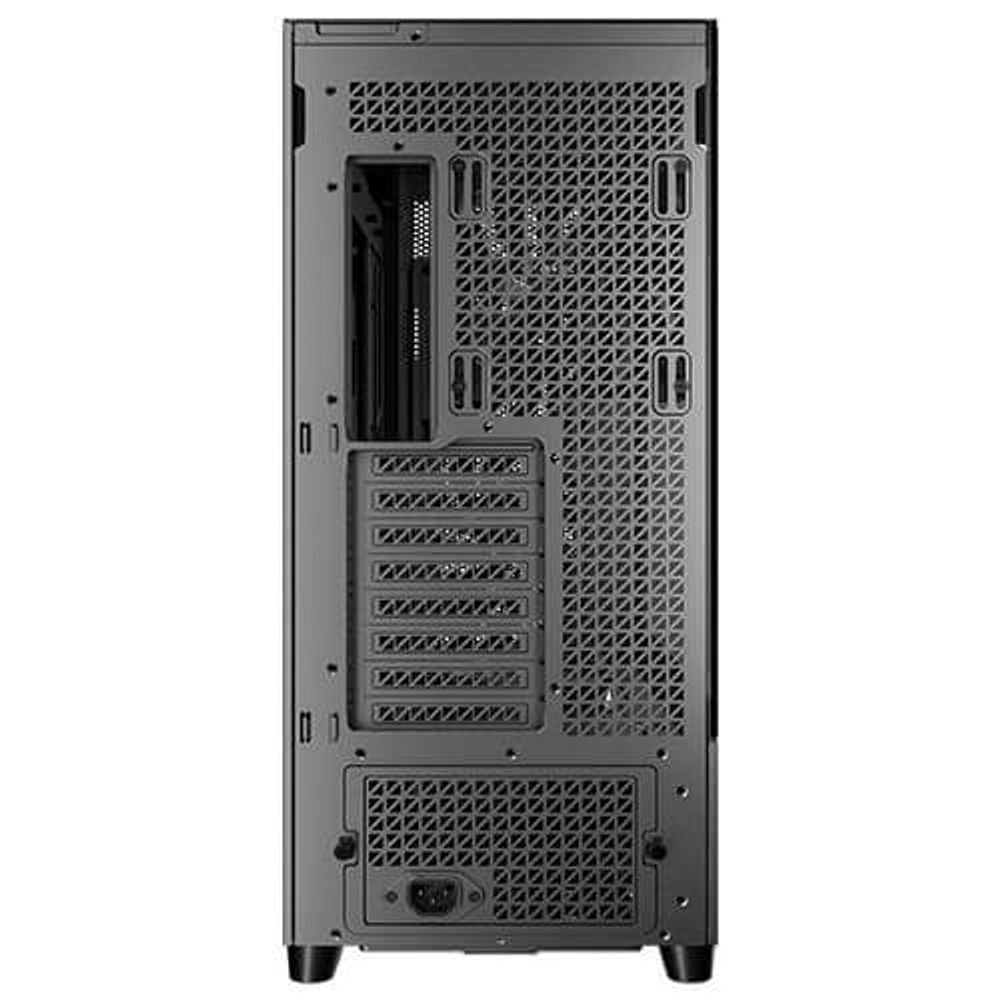

Full tower PC case rear panel with expansion slots and port cutouts

Full tower PC case open chassis showing motherboard tray and drive bays

Full tower PC case with tempered-glass front panel and black mesh interior

Full tower PC case with tempered-glass side panel and wood-trim frame

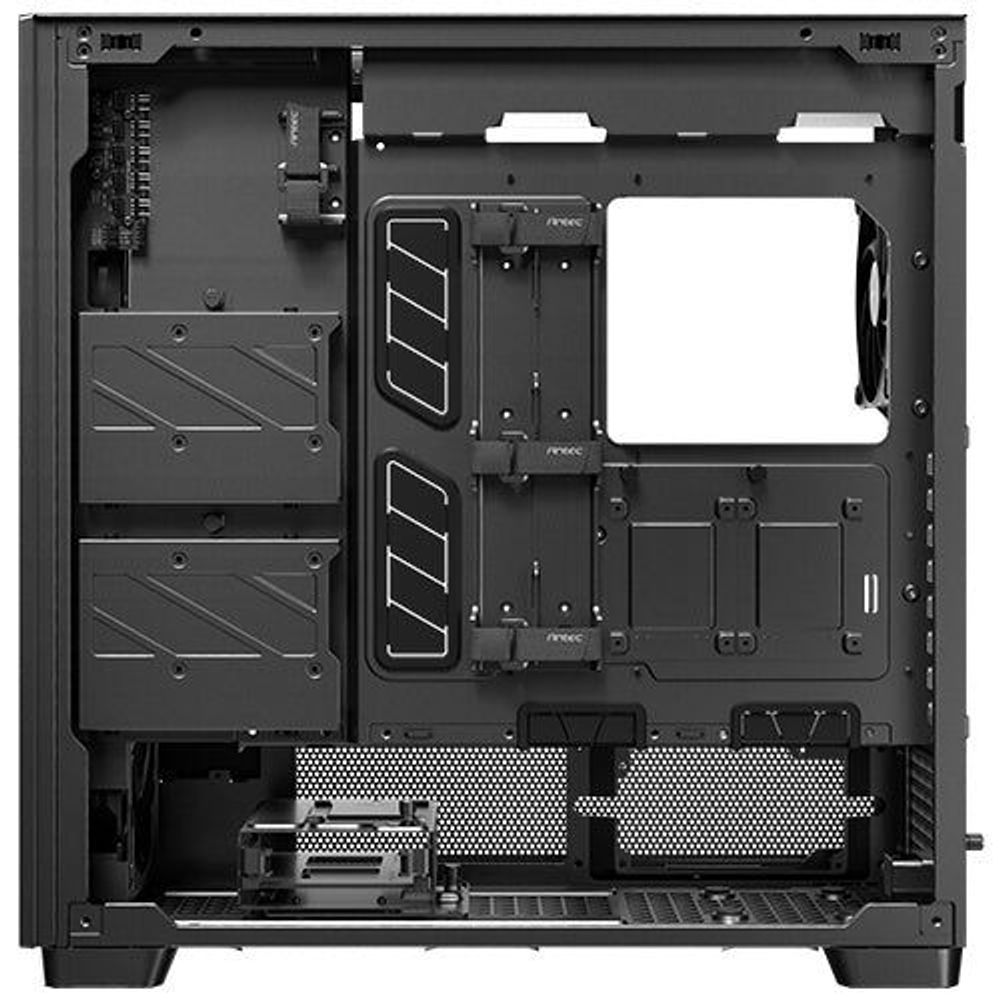

Full tower PC case interior view with cable paths and metal mounting brackets

Full tower PC case front base with vented mesh and rubber feet

Full tower PC case with open side showing drive bays and motherboard area

Full tower PC case with open front showing interior metal panels and fan area

Full tower PC case interior view with front mesh and mounted drive area

Full tower PC case front panel with fine perforated mesh

Full tower PC case bottom view with raised motherboard mounting area

Full tower PC case with tinted glass front and bronze accent frame

Full tower PC case side view with tinted window and bronze-trim ventilation

Full tower PC case open side with visible fans and perforated intake panels

Full tower PC case with open rear panel showing expansion slots and vented PSU area

Full tower PC case with front door open showing fan mounts and internal frame

Full tower PC case interior view with left-side fan and vented chassis panels

Full tower PC case with tempered-glass side and included cooling fans

Antec FLUX PRO Full Tower Case

CASE-DP-FLUXPRO

$437.57

Tax included.

Out of stock

Select quantity

Description

Flow Luxury

F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow

Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical
Cooling

Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal
Cooling

Air intake via the front mesh provides smooth venting channel throughout the case.

Premium Wood

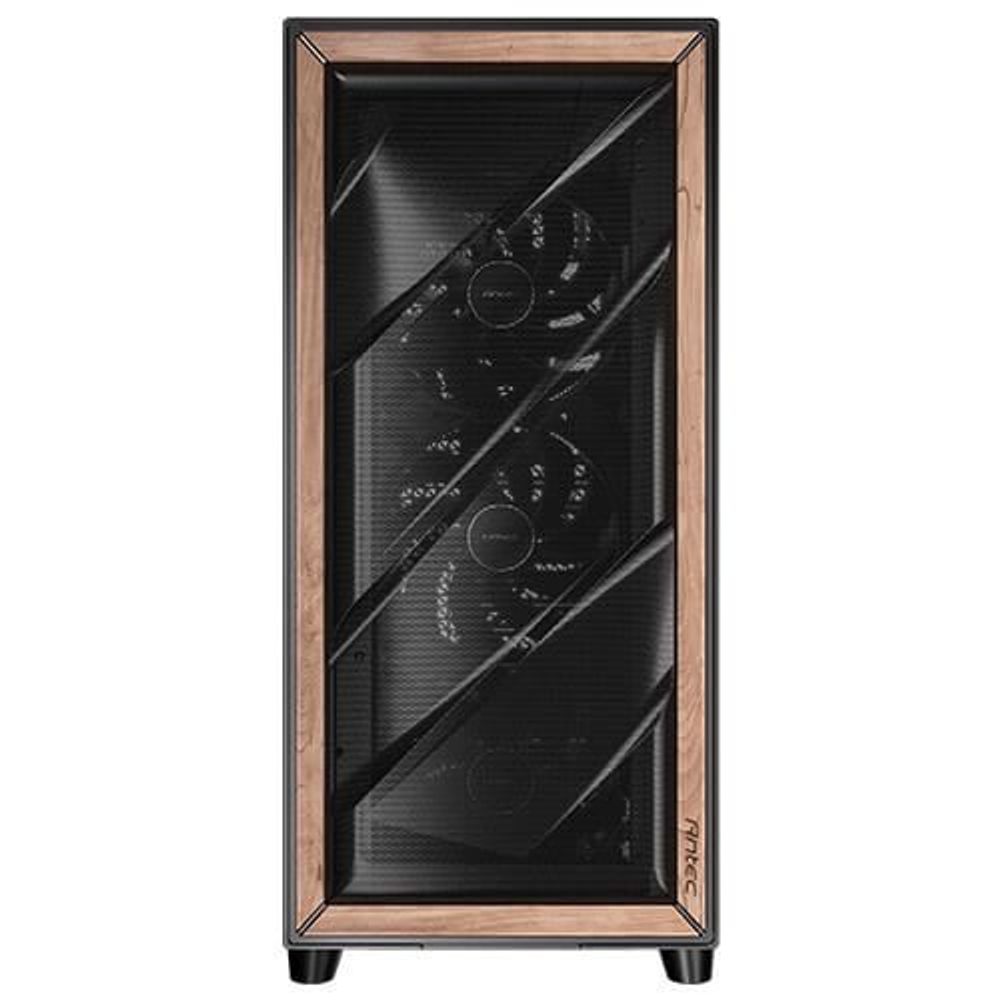

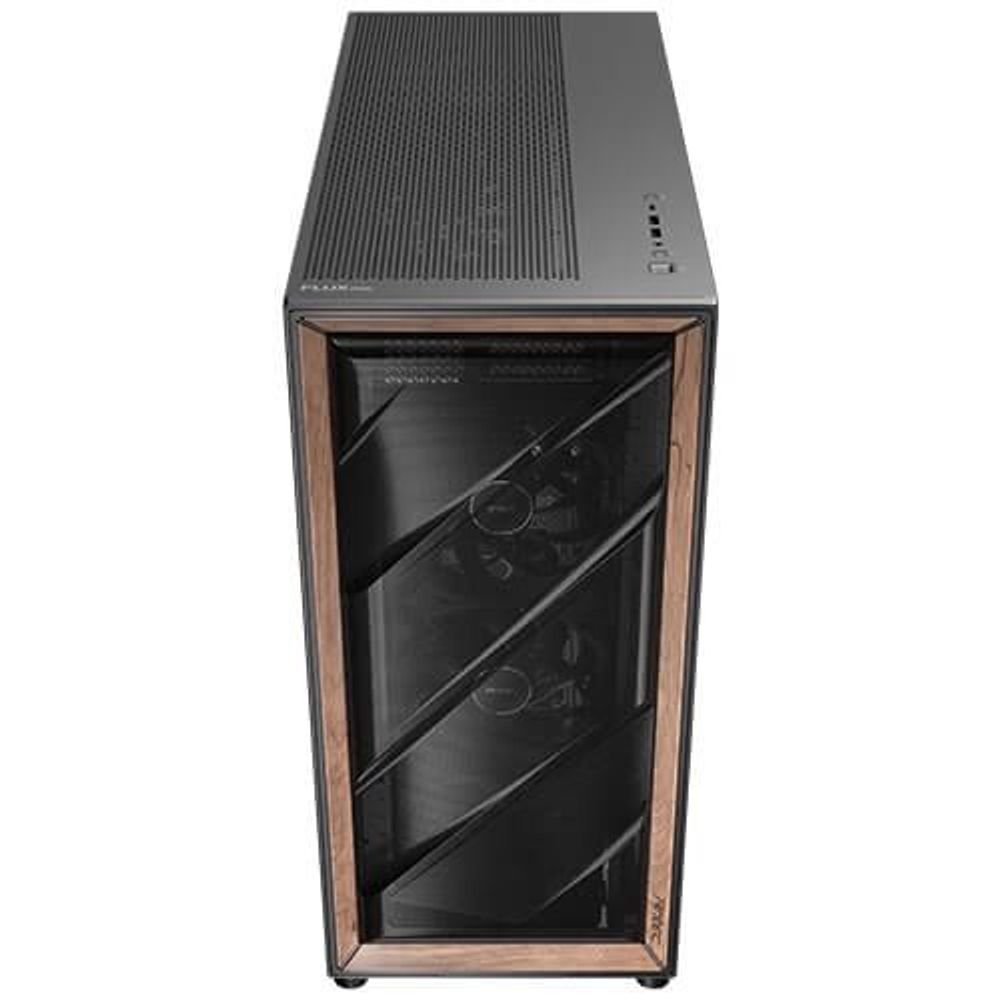

Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the includedextension cable is available. Plug in the cable connectorfrom the right side, routing has never been easier.

Support 180mm long PSU.

PSU Installation

Left side of PSU chamber is detachable, making it easy to install the power supply.

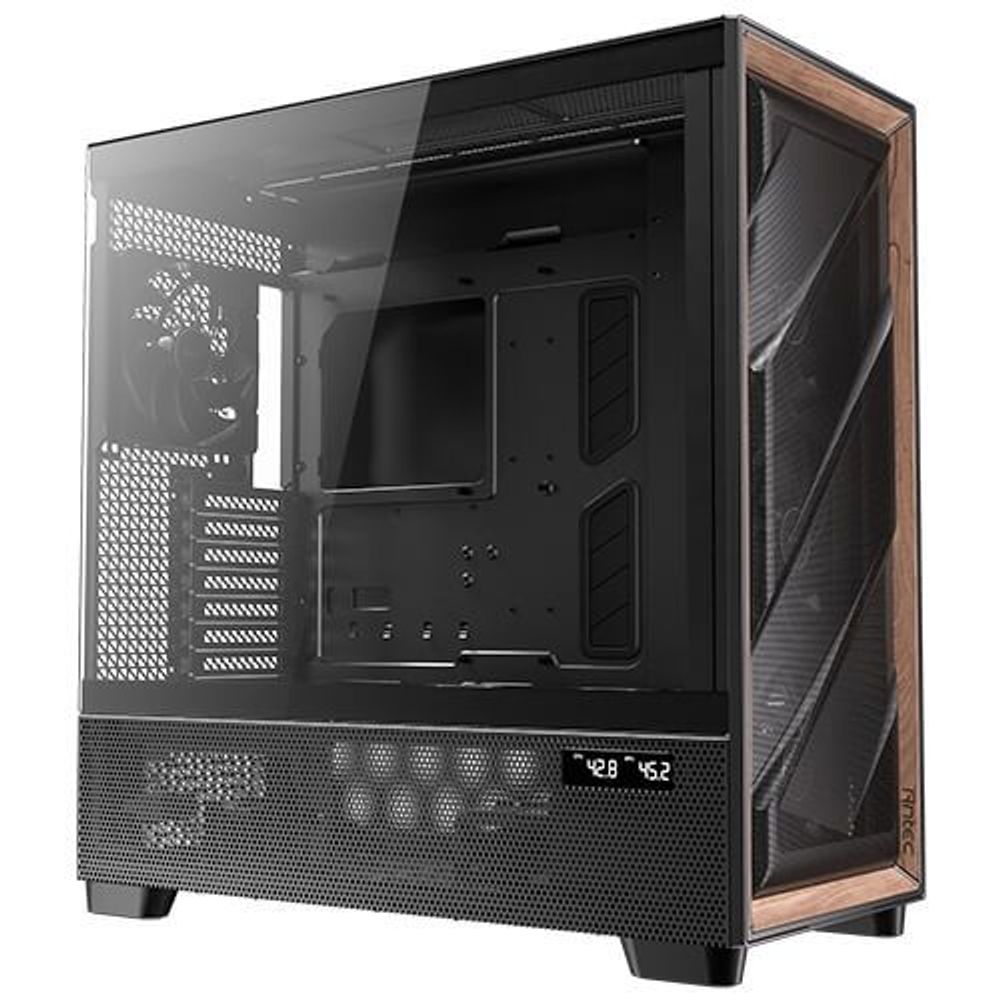

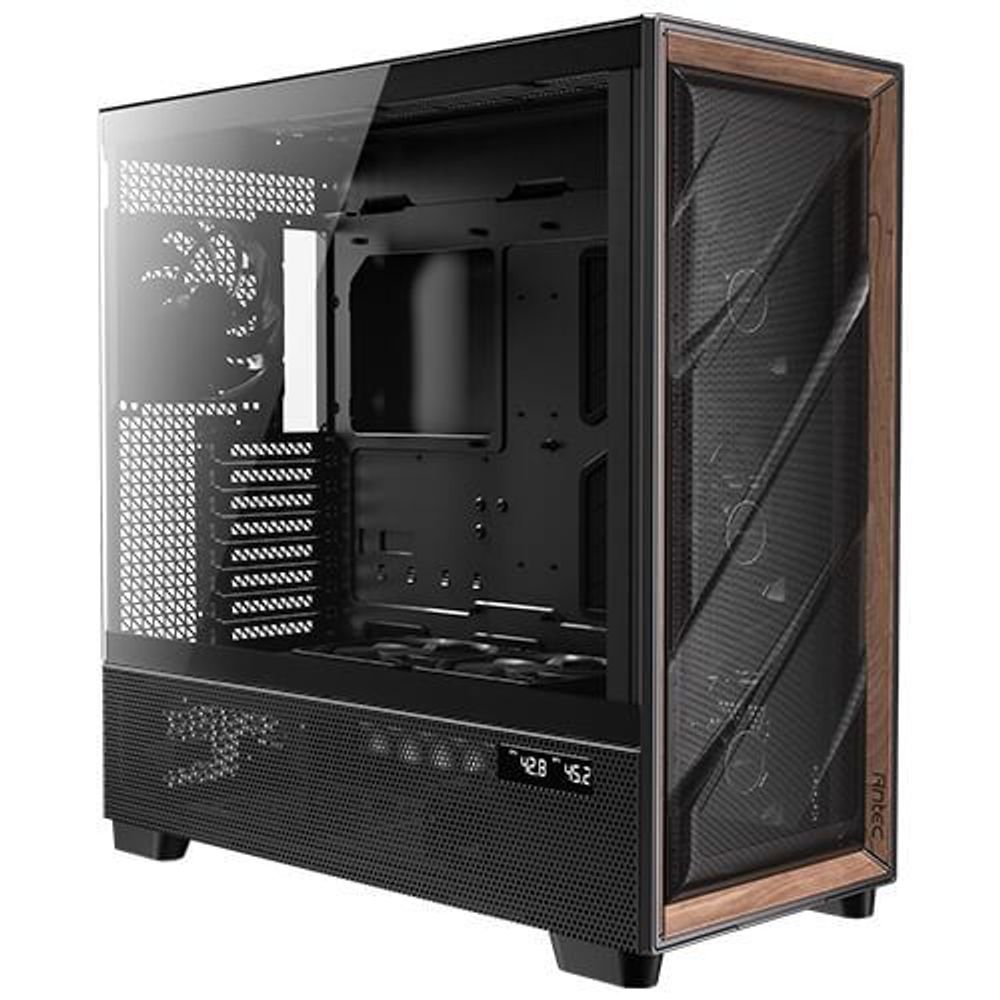

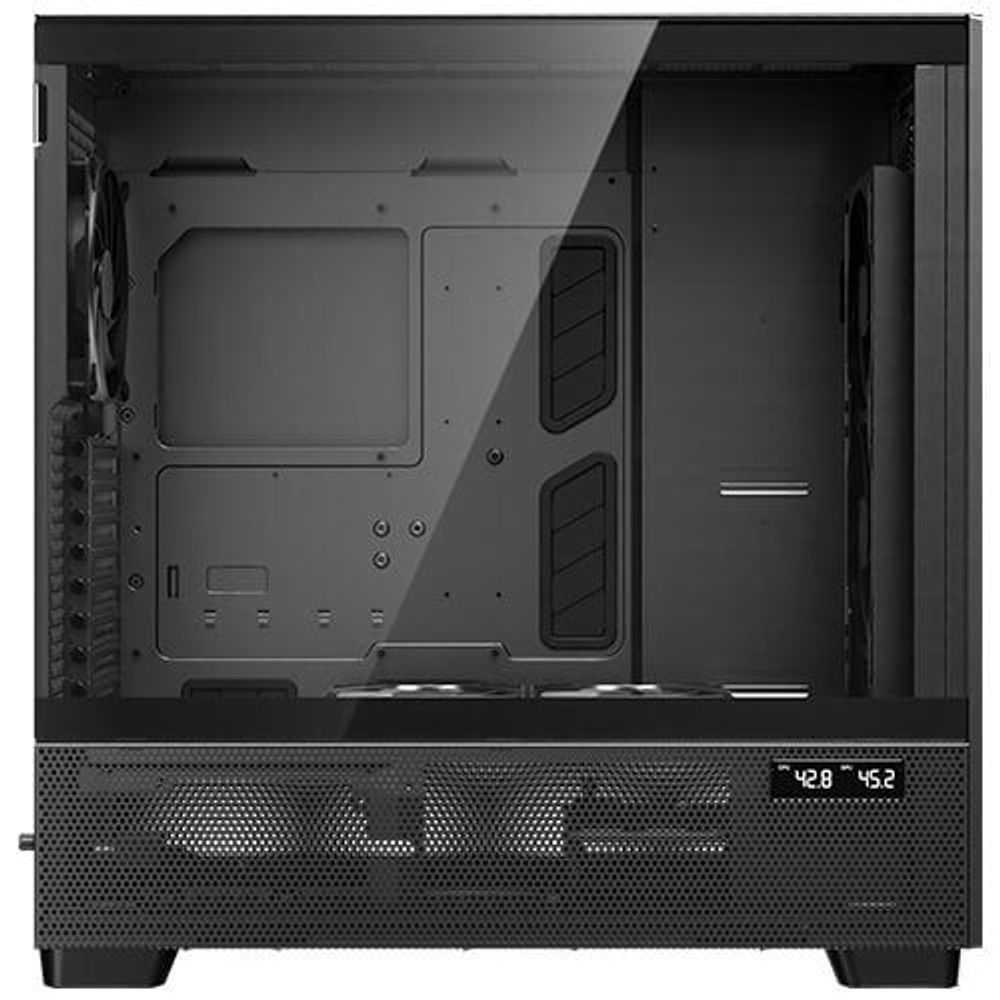

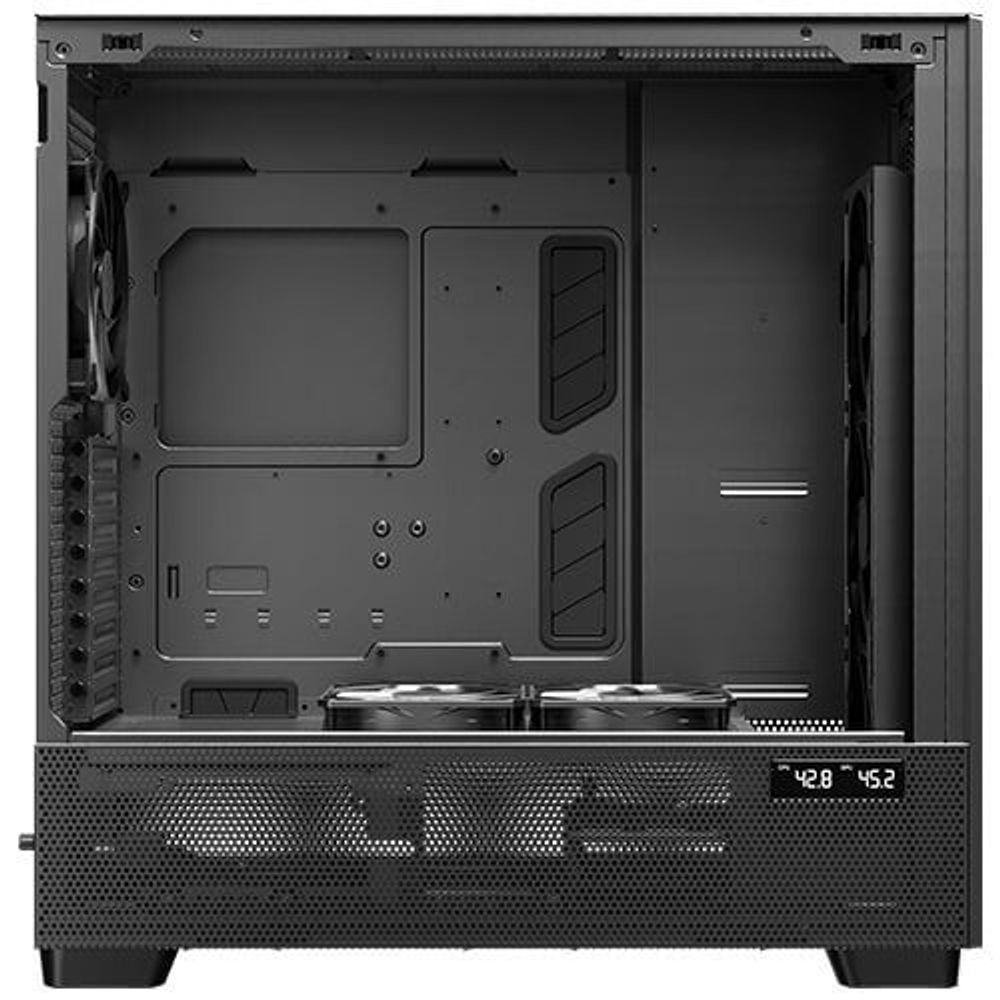

CPU/GPU Dual Temperature Display

Intuitive hardware temperature display design with 4 different modes:

GPU & CPU On
GPU & CPU Off
Only CPU On
Only GPU On

*Antec iUnity software must be installed.

Removable Top Cooling Bracket

Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

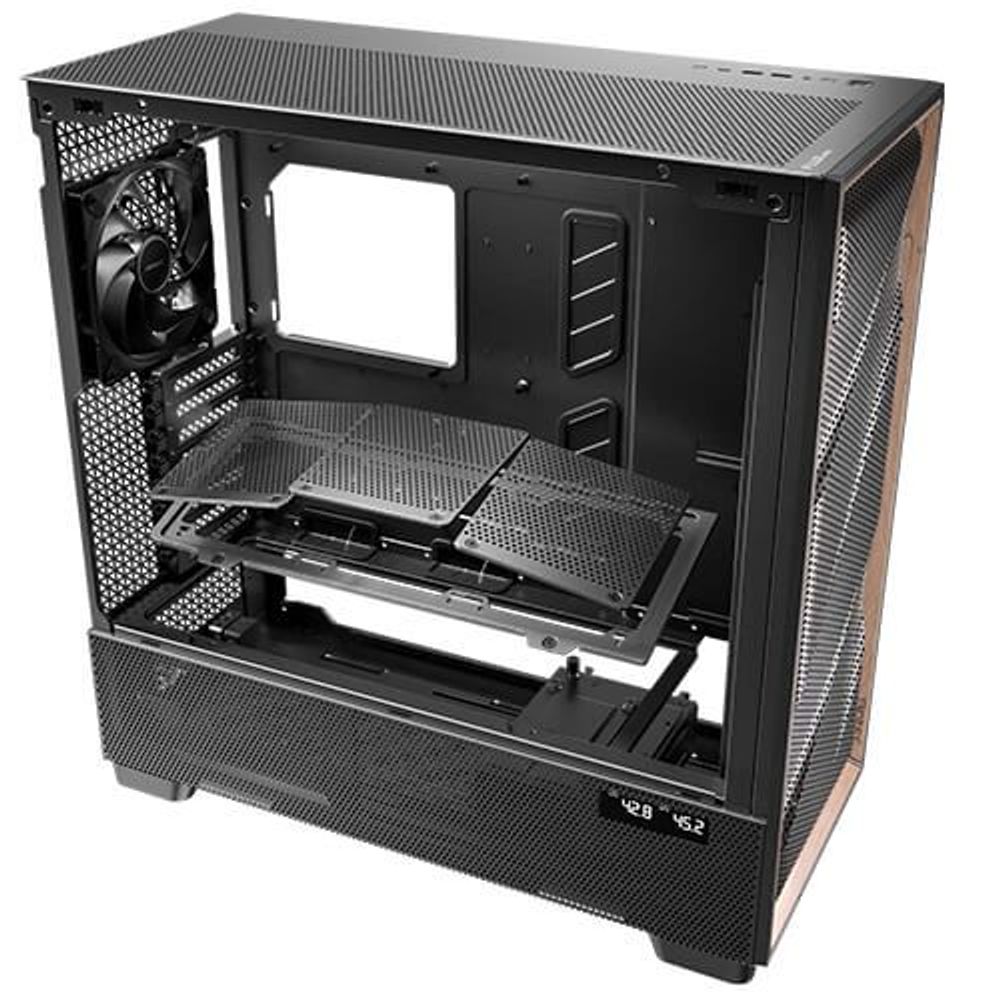

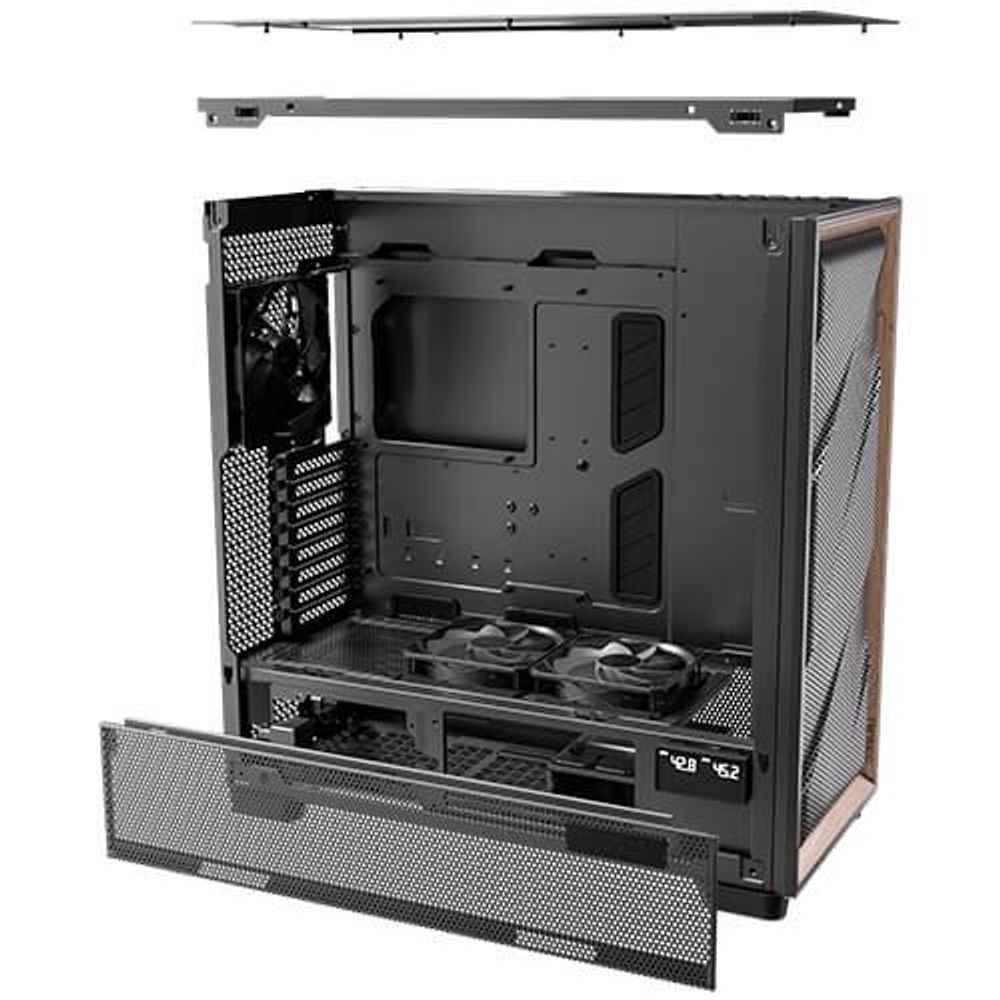

Removable Cooling Bracket on Top of PSU Shroud

When fans (2 available) are installed on the case bottom, remove the top shroud bracket to maximize the airflow, fulfilling the optimal vertical cooling scheme.

Removable Cooling Bracket on Top of PSU Shroud

Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.

Removable Front Cooling Bracket

Vertically adjustable to 5 positions to fit the huge top AIO.
Full cut-out design for enhanced air intake.
Can install fans or radiators.

SPECIFICATIONS

main spec

Dimensions	530 x 245 x 545 mm (DWH)
Form Factor	Full Tower
Materials	Steel + Plastic + Glass + Wood
Mainboard Support	E-ATX (≤285mm), ATX, Micro-ATX, ITX
Front Access & Controls	Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1
Side Panel	4mm Tempered Glass

Drive Bays

Expansion Slots	8
3.5" /2.5"	4/4
2.5"	2

Fan Support

Front	3 x 120mm / 3 x 140mm
Top	3 x 120mm / 3 x 140mm
Power Supply Shroud	3 x 120mm
Bottom	2 x 120mm / 2 x 140mm
Rear	1 x 120mm / 1 x 140mm

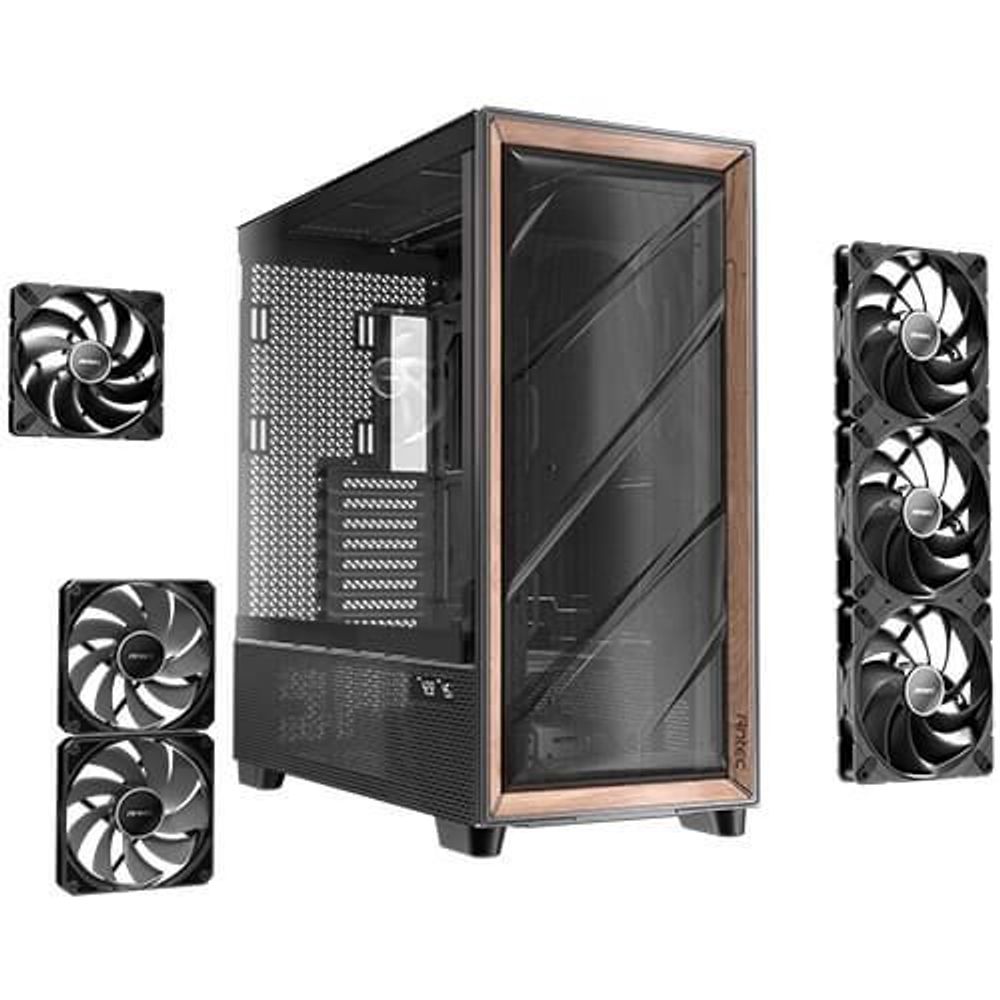

Included Fan(s)	3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud + 1 x 140mm Tranquil PWM fan in rear

Radiator Support

Front	120 / 140 / 240 / 280 / 360 / 420mm
Top	120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud	120 / 240 / 360mm
Bottom	120 / 240mm
Rear	120 / 140mm

Clearance

Max GPU Length	≤ 455mm
Max CPU Cooler Height	≤ 190mm
Max PSU Length	(Include cable) ≤ 180 / 300mm (with HDD) (Include cable) ≤ 470mm (without HDD) (Not Include cable) ≤ 180mm (Side Mount)

Miscellaneous

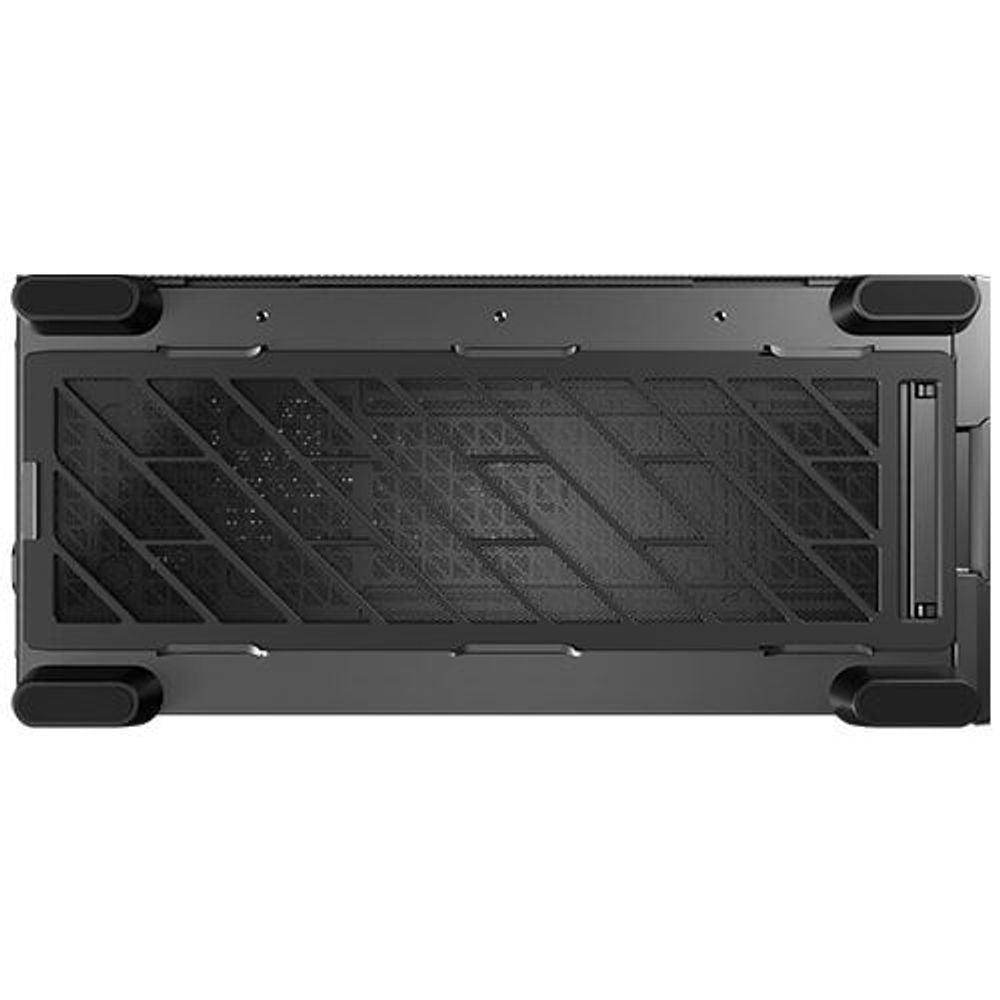

Dust Filter	Bottom
Net Weight	13.60 Kg
Gross Weight	16.65 Kg
Warranty	2 Years
