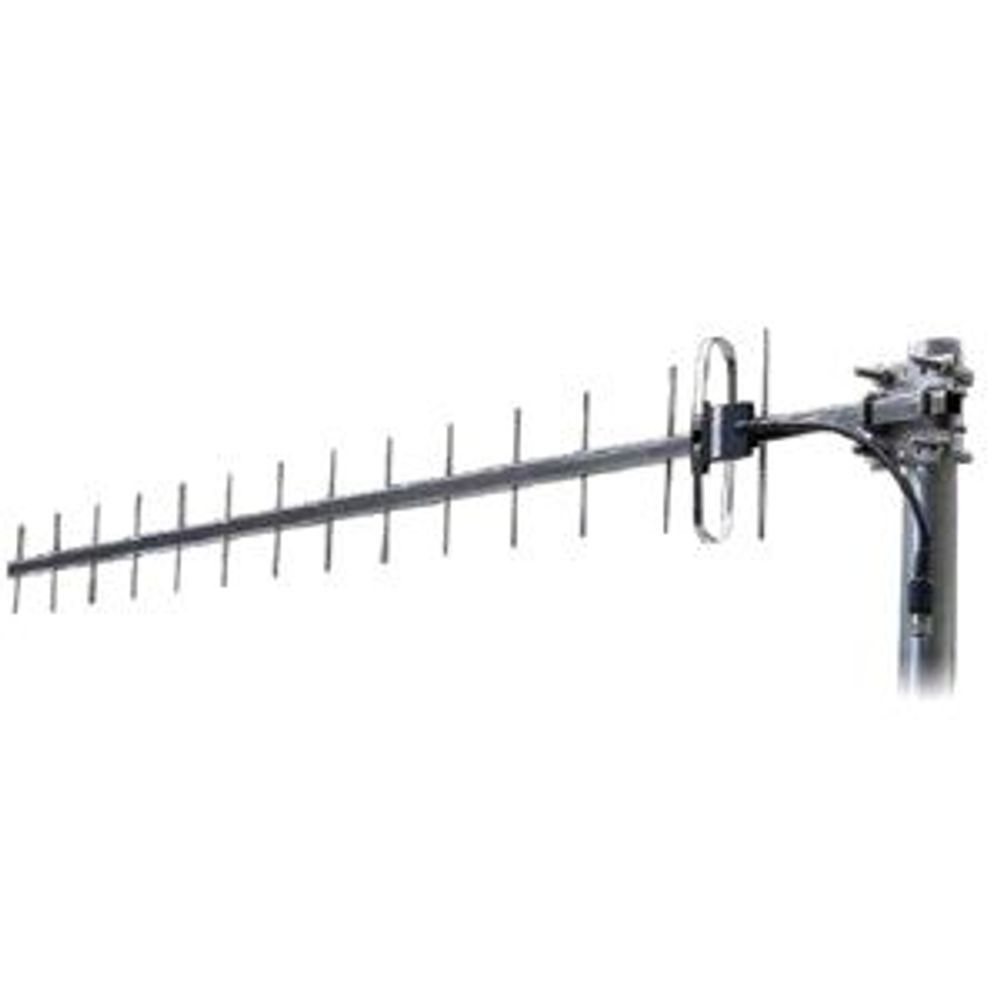

Name: ANT-55 - 13dBi 860MHz to 960MHz Stainless Steel Yagi Antenna
Brand: Tech Supply Shed
SKU: ANT-55
Price: 140.30 NZD
Availability: InStock

ANT-55 - 13dBi 860MHz to 960MHz Stainless Steel Yagi Antenna

ANT-55

$140.30

Tax included.

In stock, ready to be shipped

Select quantity

Description

13dBi 860MHz to 960MHz Stainless Steel Yagi Antenna. Constructed of Stainless Steel for outstanding service life. Individual elements are braised to the main beam for permanent attachment. These antennas have high gain and good front to back performance to minimize external interference. They can be mounted in vertical or horizontal polarisation. They come standard with an 18” pigtail cable terminated with an N Female connector. Great for Non line of sight and IoT applications like LoRaWAN and SigFox.

Features

High Gain Directional Antenna
Available in 9, 11 and 13dBi gain models
Stainless Steel Construction, Low Wind Loading
Vertical or Horizontal Polarization mounting options
18” Pigtail with Type N Female Connector Standard
DC Ground for lightning protection
Applications: 900 MHz ISM Band Applications, Non Line of Sight Applications, IoT LoRaWAN and SigFox, Point to Multi-point Systems, Rural Broadband Initiative GSM Antenna (RBI project New Zealand)

Details
Manufacturer's Product Code	ANT-55
Frequency Range	860-960MHz
Gain	13dBi
Impedance	50 Ohm
Vertical Beamwidth	30deg
Horizontal Beamwidth	30deg
Connector Type	N-Type Female
Dimensions	1.63m
Pole Mount Diameter	25-50mm

Details
Pole Mount	Included

Specifications

Details
Manufacturer's Product Code	ANT-55
Frequency Range	860-960MHz
Gain	13dBi
Impedance	50 Ohm
Vertical Beamwidth	30deg
Horizontal Beamwidth	30deg
Connector Type	N-Type Female
Dimensions	1.63m
Pole Mount Diameter	25-50mm
