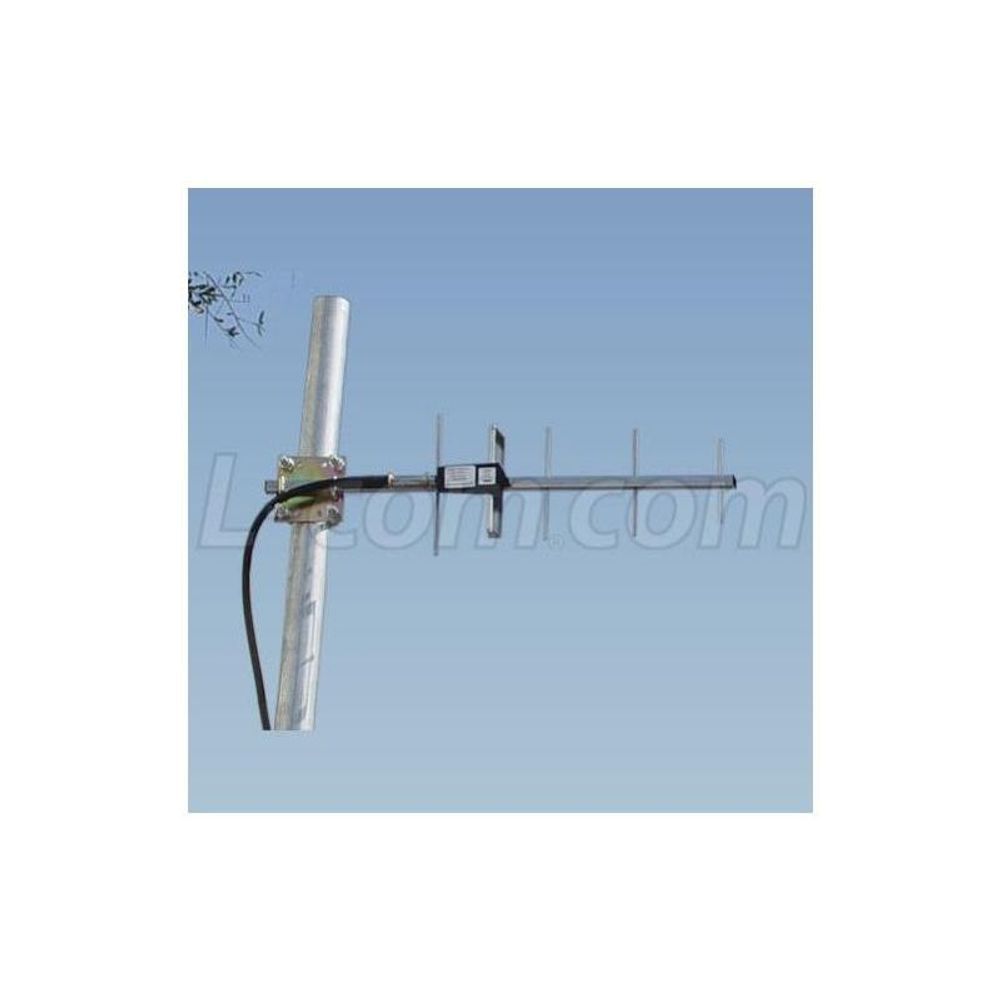

Name: ANT-54 - 9dBi 860-960MHz Stainless Steel Yagi Antenna
Brand: Tech Supply Shed
SKU: ANT-54
Price: 73.60 NZD
Availability: InStock

ANT-54 - 9dBi 860-960MHz Stainless Steel Yagi Antenna

ANT-54

$73.60

Tax included.

In stock, ready to be shipped

Select quantity

Description

900 MHz 9 dBi N-Female Stainless Steel Yagi Antenna. They are ideally suited for directional applications in the 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links, 900 MHz Cellular, Non Line of Sight (NLOS) applications and point to multi-point systems. These antennas comes with a 45cm coax lead terminated with an N-Female connector. It can be installed for either vertical or horizontal polarisation. Great for Non line of sight and IoT applications like LoRaWAN and SigFox.

Features

Applications: 900 MHz ISM Band Applications, Non Line of Sight Applications, IoT LoRaWAN and SigFox, Point to Multi-point Systems, Rural Broadband Initiative GSM Antenna (RBI project New Zealand)

Details
Manufacturer's Product Code	ANT-54
Frequency Range	860-960MHz
Gain	9dBi
Polarisation	Horizontal or Vertical mounting options
Vertical Beamwidth	48deg
Horizontal Beamwidth	54deg
Connector Type	N-Type Female
Dimensions	500mm
Pole Mount Diameter	25-50mm

Details
Pole Mount	Included

Specifications

Details
Manufacturer's Product Code	ANT-54
Frequency Range	860-960MHz
Gain	9dBi
Polarisation	Horizontal or Vertical mounting options
Vertical Beamwidth	48deg
Horizontal Beamwidth	54deg
Connector Type	N-Type Female
Dimensions	500mm
Pole Mount Diameter	25-50mm
