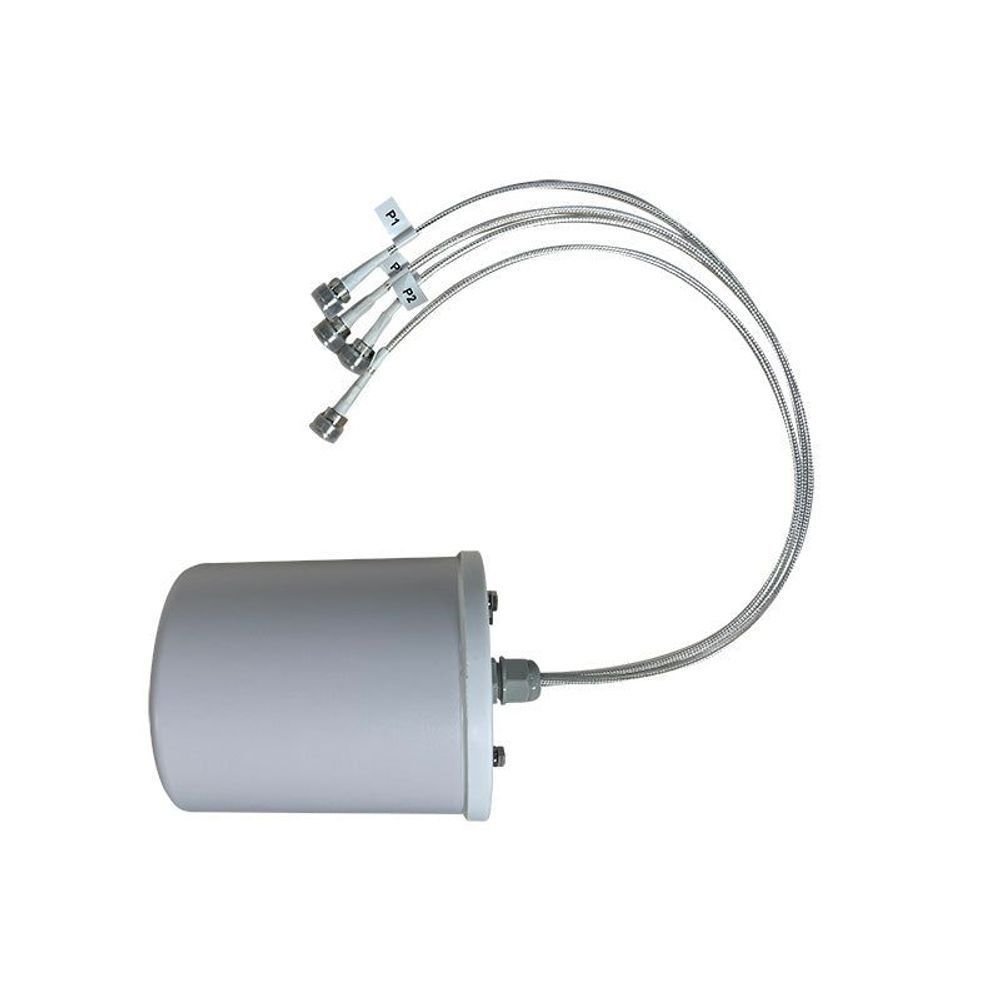

Name: ANT-293 - MIMO Omnidirectional Antenna 617-960/1710-2700/3300-4000/4900-6000 MHz, 3-5dBi, 4 x N-Female, with Right Angle Bracket, Pigtail-35cm Cable
Brand: Tech Supply Shed
SKU: ANT-293
Price: 112.70 NZD
Availability: InStock

ANT-293 - MIMO Omnidirectional Antenna 617-960/1710-2700/3300-4000/4900-6000 MHz, 3-5dBi, 4 x N-Female, with Right Angle Bracket, Pigtail-35cm Cable

ANT-293

$112.70

Tax included.

In stock, ready to be shipped

Select quantity

Description

5G/4G/LTE Cellular MIMO Dual Pol Vertical Omnidirectional Antenna, 617-960/1710-2700/3300-4000/4900-6000 MHz, 3-5dBi, 4 x N-Female, with Right Angle Bracket, Pigtail-35cm Cable

Suitable for LTE/4G/5G Cellular Applications.

Details
Manufacturer's Product Code	ANT-293
Frequency range (MHz)	617-960; 1710-2700; 3300-4000; 4900-6000
Polarization	2 x Vertical
Maximum Gain (dBi)	3-5dBi
Horizontal beam width	360 deg
Typical Vertical beam width	28 - 85 deg
Impedance	50 Ohm
VSWR	2.5
Maximum power (W)	50 Watts
Connectors	4 x N Female
Cable Length (cm)	50cm
Antenna size (mm)	82 x 200mm
Packing size (mm)	330 x 105 x 90
Weight (kg)	0.8 (Include bracket)
Radome material	UPVC
Radome colour	White
Operating humidity	5 - 95 %
Operating temperature (?)	-40 - 60
Application	Outdoor
Rated wind velocity (m/s)	40
Suitable pole diameter (mm)	25 - 50 mm
Mounting kit	L Clamp included

Details
Pole Mount	U-Bolt and clamps Included

Specifications

Details
Manufacturer's Product Code	ANT-293
Frequency range (MHz)	617-960; 1710-2700; 3300-4000; 4900-6000
Polarization	2 x Vertical
Maximum Gain (dBi)	3-5dBi
Horizontal beam width	360 deg
Typical Vertical beam width	28 - 85 deg
Impedance	50 Ohm
VSWR	2.5
Maximum power (W)	50 Watts
Connectors	4 x N Female
Cable Length (cm)	50cm
Antenna size (mm)	82 x 200mm
Packing size (mm)	330 x 105 x 90
Weight (kg)	0.8 (Include bracket)
Radome material	UPVC
Radome colour	White
Operating humidity	5 - 95 %
Operating temperature (?)	-40 - 60
Application	Outdoor
Rated wind velocity (m/s)	40
Suitable pole diameter (mm)	25 - 50 mm
Mounting kit	L Clamp included
