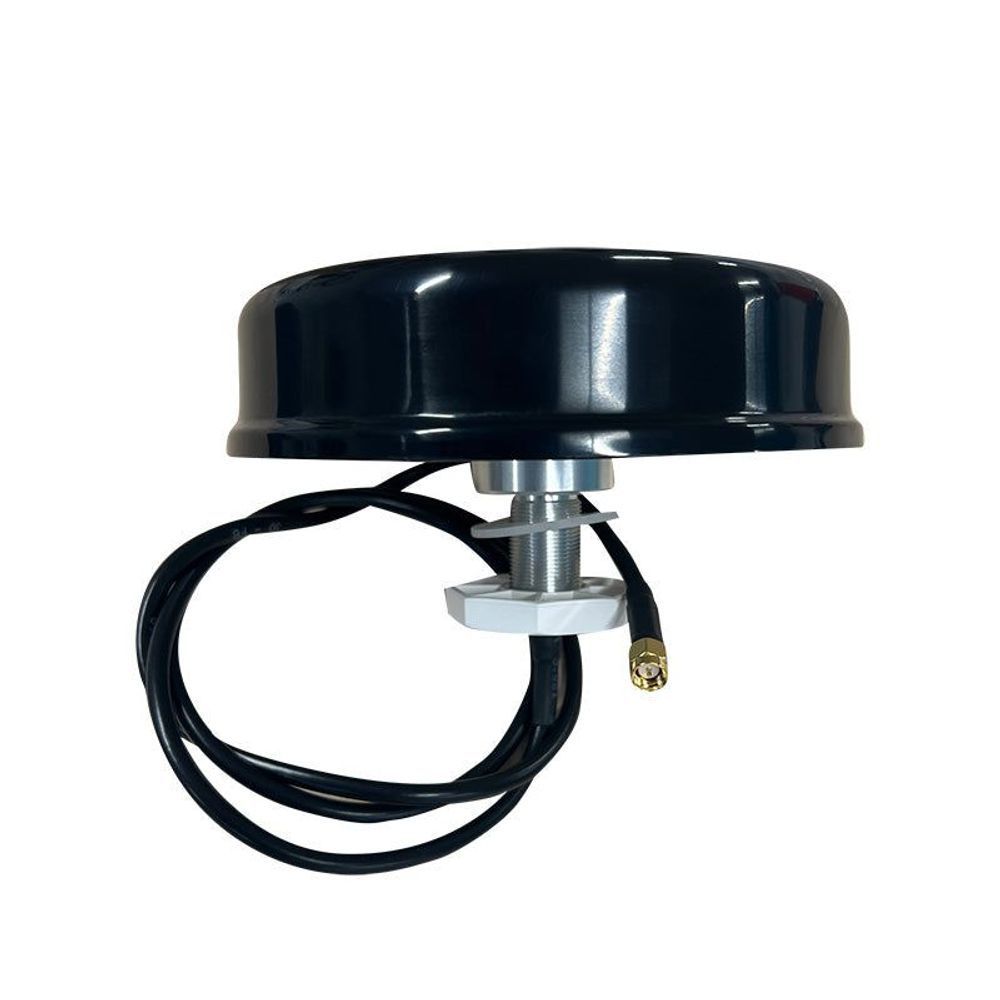

Name: ANT-292 - 3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP68
Brand: Tech Supply Shed
SKU: ANT-292
Price: 113.85 NZD
Availability: InStock

ANT-292 - 3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP68

ANT-292

$113.85

Tax included.

In stock, ready to be shipped

Select quantity

Description

3dBi 698 - 2700MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable IP65

Features

Perfect for Cellular 4G/LTE IoT applications

Details
Manufacturer's Product Code	ANT-292
Frequency Range	698 - 960/1710 - 2700MHz
Bandwidth	262/990MHz
Polarization	Vertical
Gain	3dBi @ 698 - 960MHz; 5dBi @ 1710 - 2700MHz
Horizontal Beam Width	360deg Omni
Vertical Beam Width	68 to 35 deg
Impedance	50 Ohm
VSWR	=2.5
Maximum Input Power	50W
Connector Type	SMA Male
Cable Length	1000mm
Antenna Size	145 x 40mm
Antenna Weight	0.3 Kg
Radome material	ABS
Radome colour	Black
Operating Temperature	-40 to+85 degC
Relative Humidity	5 - 95 %
Rated Wind Velocity(m/s)	60
Salt Spray Resistance	96Hour Neutral (GB/T 2423.17-2008)
waterproofing grade	IP65
Mounting	20mm through hole Nut tightening

Details

Specifications

Details
Manufacturer's Product Code	ANT-292
Frequency Range	698 - 960/1710 - 2700MHz
Bandwidth	262/990MHz
Polarization	Vertical
Gain	3dBi @ 698 - 960MHz; 5dBi @ 1710 - 2700MHz
Horizontal Beam Width	360deg Omni
Vertical Beam Width	68 to 35 deg
Impedance	50 Ohm
VSWR	=2.5
Maximum Input Power	50W
Connector Type	SMA Male
Cable Length	1000mm
Antenna Size	145 x 40mm
Antenna Weight	0.3 Kg
Radome material	ABS
Radome colour	Black
Operating Temperature	-40 to+85 degC
Relative Humidity	5 - 95 %
Rated Wind Velocity(m/s)	60
Salt Spray Resistance	96Hour Neutral (GB/T 2423.17-2008)
waterproofing grade	IP65
Mounting	20mm through hole Nut tightening
