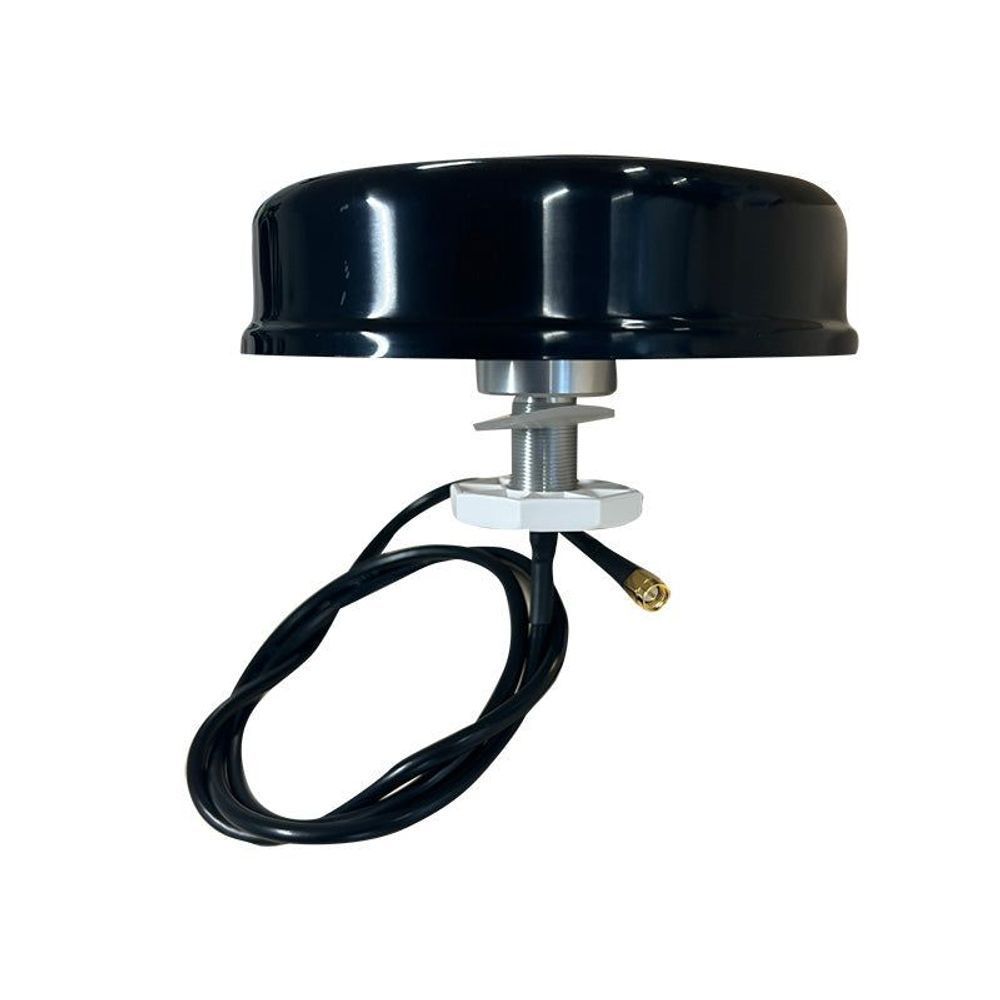

ANT-291 - 5dBi 900 - 928 MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black

ANT-291 - 5dBi 900 - 928 MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black

ANT-291

$111.55

Tax included.

In stock, ready to be shipped
Select quantity
Description
900 - 928 MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable.

Features
  • ISM 900MHz band suitable for AU915 and AS923 LoRaWAN IoT solutions
Details
Manufacturer's Product Code ANT-291
Frequency Range 900 - 928 MHz
Bandwidth 28Mhz
Polarization Vertical
Gain(dBi) 5
Horizontal Beam Width 360 deg Omni
Vertical Beam Width 35 deg
Impedance 50 Ohm
VSWR =1.5
Maximum Input Power 100W
Connector Type SMA Male
Cable Length 1000mm
Antenna Size 145 x 40 mm
Antenna Weight 0.28 kg
Radome material ABS
Radome colour Black
Operating Temperature (?) -40 to+85
Relative Humidity(%) 5 - 95
Rated Wind Velocity(m/s) 60
Salt Spray Resistance 96Hour Neutral (GB/T 2423.17-2008)
waterproofing grade IP65
Mounting 20mm through hole Nut tightening
