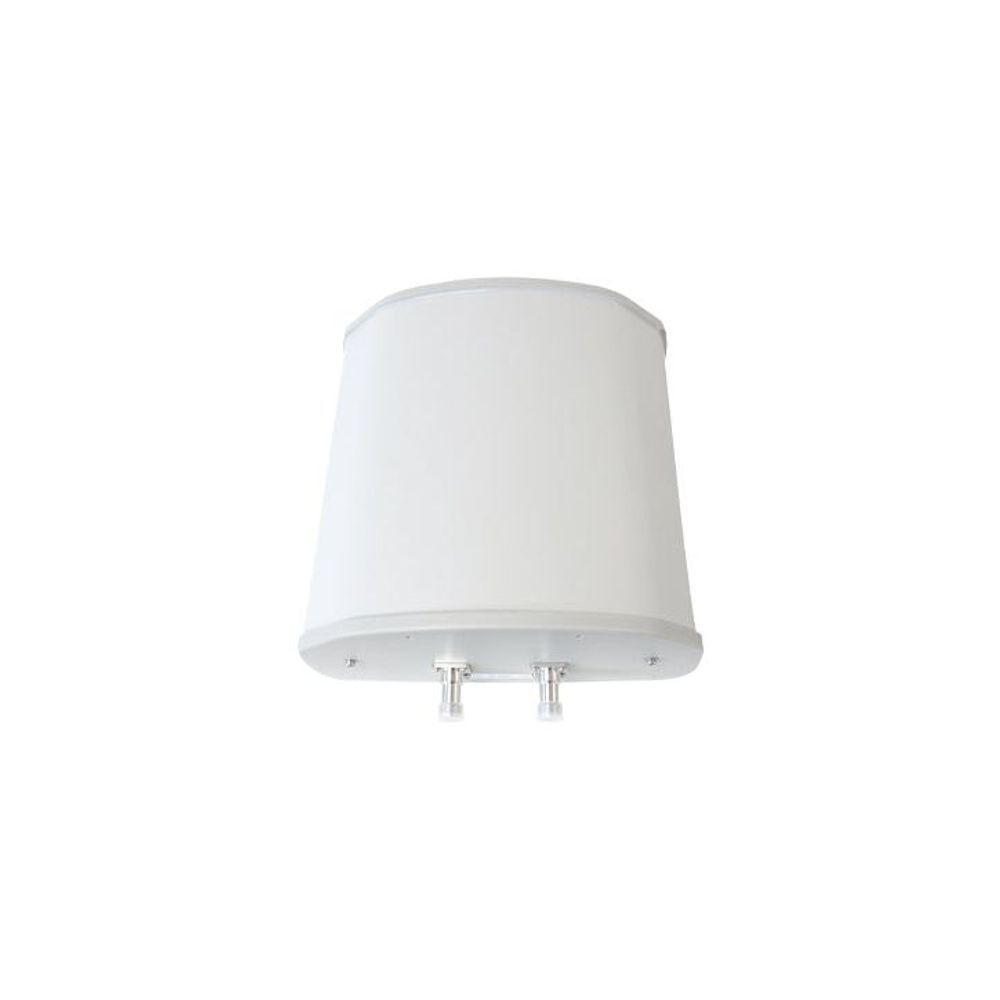

Name: ANT-284 - 850MHz - 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna
Brand: Tech Supply Shed
SKU: ANT-284
Price: 146.05 NZD
Availability: InStock

ANT-284 - 850MHz - 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna

ANT-284

$146.05

Tax included.

In stock, ready to be shipped

Select quantity

Description

850MHz to 940MHz 8.5 dBi 65 Deg Dual Slant Sector Antenna for ISM, GSM, LoRaWAN IoT, SigFox and 900MHz Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features two integral N-Female bulkhead type connectors. Also included with this Sector Antenna is a mast mounting kit, consisting of a heavy-duty galvanised steel pole mount bracket, this kit allows installation on masts up to 80 mm in diameter.

Features

Suitable for LoRaWAN and Sigfox 865MHz, 868MHz and 915MHz, 923MHz IoT applications
Sealed Fiberglass Radome, Strong Protection against the elements
All Weather Operation
Heavy duty galvanised pole mount
supports EU868, AU915, AS923

Details
Manufacturer's Product Code	ANT-284
Frequency range	850-940 MHz
Polarization	±45deg
Gain (dBi)	8.5
Electrical Downtilt	0deg
Horizontal BW	65 deg
Vertical	BW
Front-to-back ratio	=25 dB
Isolation	=28 dB
Impedance	50 Ohm
VSWR	=1.5
Intermodulation IM3 (2×33dBm carrier)	=-150 dBc
Maximum power	300 W
Lighting protection	DC Grounding
Connector	2 x N-Female
Connector position	Bottom
Height/width/depth (mm)	270270137
Packing size (mm)	390220370
Antenna Weight	2.8 Kg
Radome material	UPVC
Radome colour	Gray
Mechanical tilt	-16 to +16 deg
Operating temperature	-40-60 degC
Rated wind velocity (m/s)	60
Suitable pole diameter	50-85 mm
Mounting kit	Heavy Duty Galvanised pole mount

Details
Pole Mount	Included

Specifications

Details
Manufacturer's Product Code	ANT-284
Frequency range	850-940 MHz
Polarization	±45deg
Gain (dBi)	8.5
Electrical Downtilt	0deg
Horizontal BW	65 deg
Vertical	BW
Front-to-back ratio	=25 dB
Isolation	=28 dB
Impedance	50 Ohm
VSWR	=1.5
Intermodulation IM3 (2×33dBm carrier)	=-150 dBc
Maximum power	300 W
Lighting protection	DC Grounding
Connector	2 x N-Female
Connector position	Bottom
Height/width/depth (mm)	270270137
Packing size (mm)	390220370
Antenna Weight	2.8 Kg
Radome material	UPVC
Radome colour	Gray
Mechanical tilt	-16 to +16 deg
Operating temperature	-40-60 degC
Rated wind velocity (m/s)	60
Suitable pole diameter	50-85 mm
Mounting kit	Heavy Duty Galvanised pole mount
