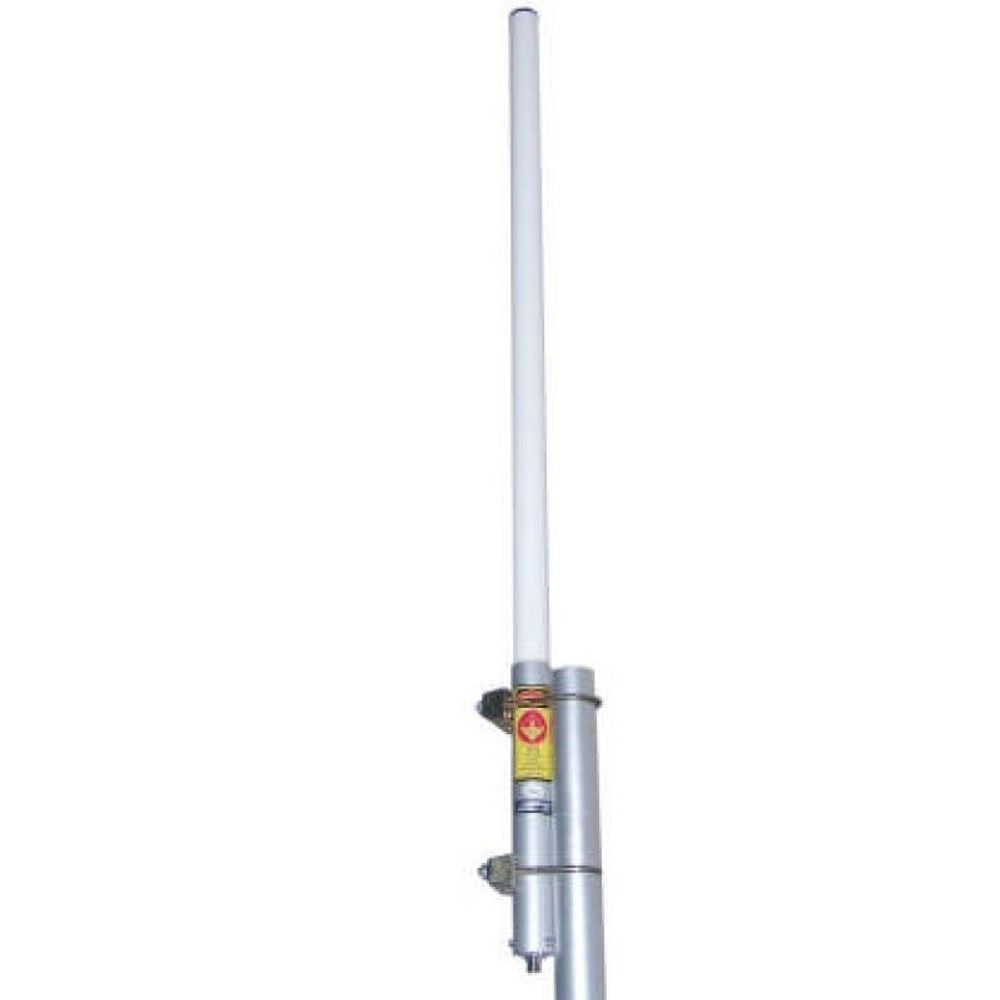

Name: ANT-282 - 900MHz 9dBi Fiberglass Omni Antenna with N-Female
Brand: Tech Supply Shed
SKU: ANT-282
Price: 104.65 NZD
Availability: OutOfStock

ANT-282 - 900MHz 9dBi Fiberglass Omni Antenna with N-Female

ANT-282

$104.65

Tax included.

Out of stock

Select quantity

Description

885 to 960MHz 9dBi Fiberglass Omni Antenna with N-Female for ISM, GSM, LoRaWAN IoT and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female connector and a mast mounting kit consisting of a pair of heavy-duty steel bracket and U-bolts, this kit allows installation on masts up to 50 mm in diameter. Suitable for LoRaWAN and Sigfox IoT Solutions.

Oversized item, due to the size of this product it is excluded from our free freight option. Freight will be added to the invoice once confirmed and amount will depend on your location.

Features

Fiberglass radome & superior performance
Rugged all weather industrial grade design
Lightweight fiberglass radome
Integral N-Female connector
Heavy-duty steel mounting bracket
LPWAN, LoRaWAN, IoT, M2M, GSM and SCADA applications

Details
Manufacturer's Product Code	ANT-282
Freq Range	885 to 960MHz
Gain	9dBi
Horz Beamwidth	360 deg
Vert Beamwidth	13 deg
VSWR	=1.5
Impedance	50 Ohm
Polarization	Vertical
Max.Power	100 Watts
Connector	N Female
Length	165cm
Weight	1.2 Kg
Ratedwind Velocity m/s	60
Radome	Fiberglass
Pole Mount Diameter	50mm

Details
Pole Mount	2 x U-Bolt and clamps Included
