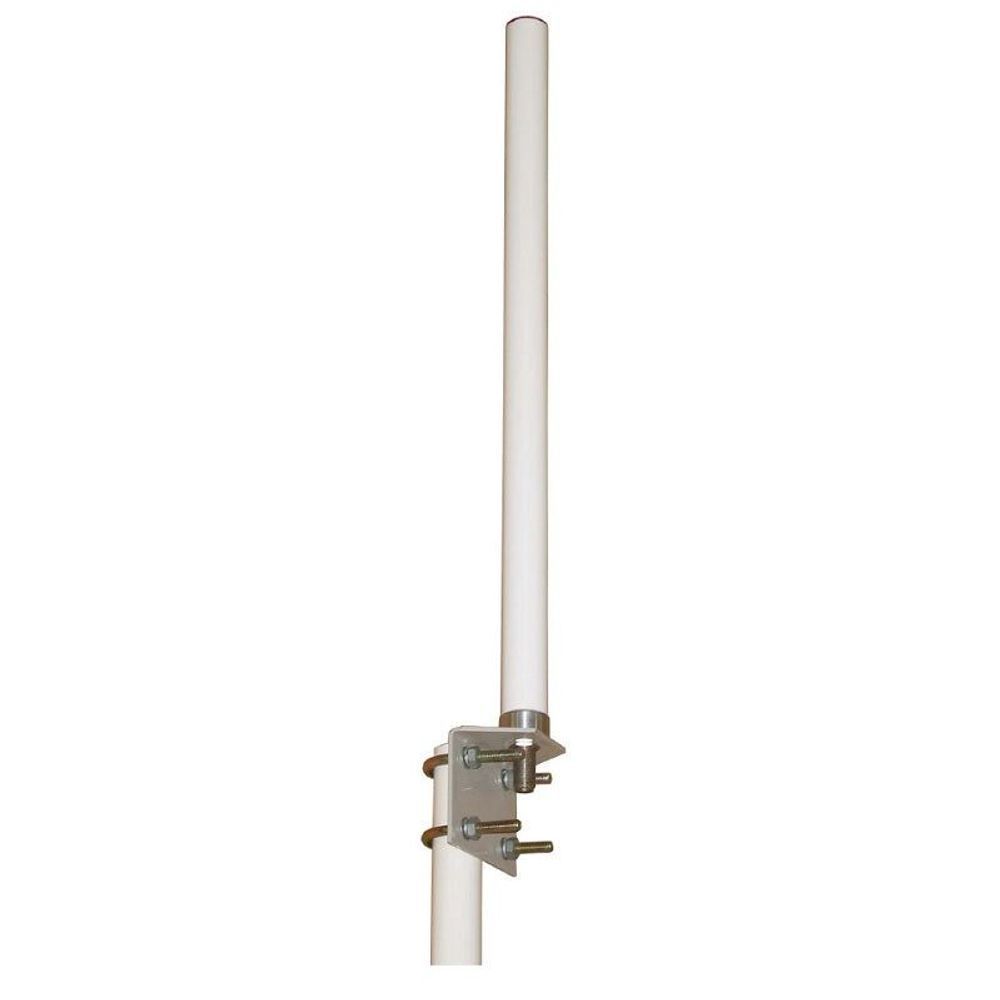

ANT-281 - 824 - 960 MHz 6dBi Fiberglass Omni Antenna with N-Female

ANT-281 - 824 - 960 MHz 6dBi Fiberglass Omni Antenna with N-Female

ANT-281

$97.75

Tax included.

In stock, ready to be shipped
Select quantity
Description
824MHz to 960MHz 6dBi Fiberglass Omni Antenna with N-Female for ISM, GSM, LoRaWAN IoT and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included with the Omni Antenna is a mast mounting kit, consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 50 mm in diameter.
Features
  • Sealed Fiberglass Radome, Strong Protection against the elements
  • All Weather Operation
  • Stable Steel Mounting Kit
  • Suitable for LoRaWAN and Sigfox 865MHz and 923MHz IoT applications
Details
Manufacturer's Product Code ANT-281
Freq Range 824 to 960MHz
Gain 6dBi
Horz Beamwidth 360 deg
Vert Beamwidth 30 deg
VSWR =1.5
Impedance 50 Ohm
Polarization Vertical
Max.Power 100 Watts
Connector N Female
Dimensions 3.6cm x 57.5cm
Weight 0.67 Kg
Ratedwind Velocity m/s 60
Radome Fiberglass
Pole Mount Diameter 50mm
Details
Pole Mount Included





Specifications





Details
Manufacturer's Product Code ANT-281
Freq Range 824 to 960MHz
Gain 6dBi
Horz Beamwidth 360 deg
Vert Beamwidth 30 deg
VSWR =1.5
Impedance 50 Ohm
Polarization Vertical
Max.Power 100 Watts
Connector N Female
Dimensions 3.6cm x 57.5cm
Weight 0.67 Kg
Ratedwind Velocity m/s 60
Radome Fiberglass
Pole Mount Diameter 50mm
Warranty
Brand

Tech Supply Shed
