Name: ANT-280 - 850MHz to 940MHz 10 dBi 120 Deg Sector Antenna
Brand: Tech Supply Shed
SKU: ANT-280
Price: 335.80 NZD
Availability: InStock

ANT-280 - 850MHz to 940MHz 10 dBi 120 Deg Sector Antenna

ANT-280

$335.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

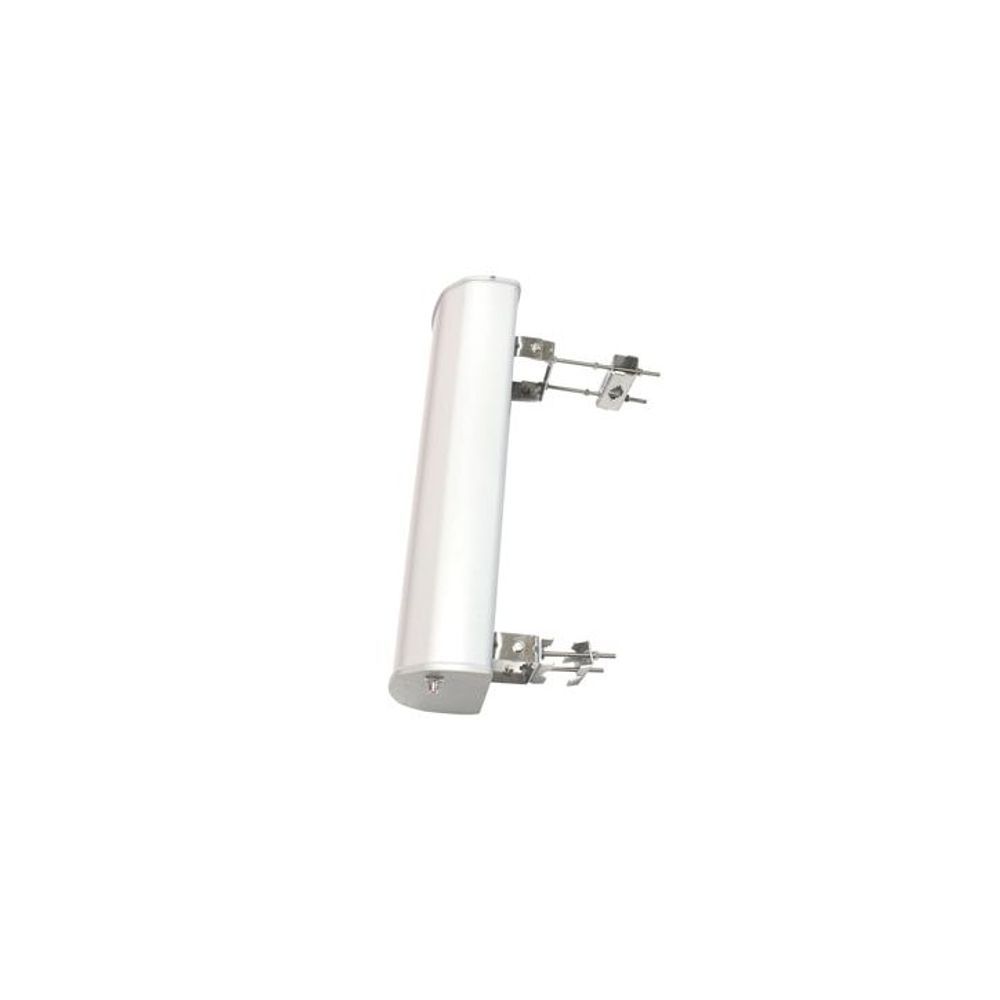

850MHz to 940MHz 10 dBi 120 Degree Sector Antenna for ISM, GSM, LoRaWAN IoT, SigFox and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and 900MHz mobile applications where high gain and wide coverage is desired. This antenna features a integral N-Female type connector. Also included with this Sector Antenna is a dual mast mounting kit, consisting of a heavy-duty stainless steel pole mount brackets, this kit allows installation on masts up to 75 mm in diameter.

Features

Suitable for LoRaWAN and Sigfox 865MHz, 868MHz and 915MHz, 923MHz IoT applications
Sealed Fiberglass Radome, Strong Protection against the elements
All Weather Operation
Stable Steel Mounting Kit

Details
Manufacturer's Product Code	ANT-280
Frequency Range	850MHz to 940MHz
Polarization	Vertical Single Polarisation
Gain	10dBi
Electrical Downtilt	0 Degrees
Half-power beam width	Horizontal: 120deg, Vertical: 27 deg
Front-to-back ratio	above 18dB
Impedance	50 Ohm
VSWR	Lower than1.5
Maximum power	500W
Lighting protection	DC Ground
Connector	N Female
Connector position	Bottom
Height/width/depth	650mm × 270mm × 137mm
Packing size	750mm × 350mm × 250mm
Weight	5.5Kg
Radome material	UPVC
Radome colour	Gray
Mechanical tilt	0~10 degrees
Operating temperature	-40~60 degC
Rated wind velocity	60 m/s
Suitable pole diameter	50~75 mm
Mounting kit	Dual Stainless Steel Pole Mount

Details
Pole Mount	Included

Specifications

Details
Manufacturer's Product Code	ANT-280
Frequency Range	850MHz to 940MHz
Polarization	Vertical Single Polarisation
Gain	10dBi
Electrical Downtilt	0 Degrees
Half-power beam width	Horizontal: 120deg, Vertical: 27 deg
Front-to-back ratio	above 18dB
Impedance	50 Ohm
VSWR	Lower than1.5
Maximum power	500W
Lighting protection	DC Ground
Connector	N Female
Connector position	Bottom
Height/width/depth	650mm × 270mm × 137mm
Packing size	750mm × 350mm × 250mm
Weight	5.5Kg
Radome material	UPVC
Radome colour	Gray
Mechanical tilt	0~10 degrees
Operating temperature	-40~60 degC
Rated wind velocity	60 m/s
Suitable pole diameter	50~75 mm
Mounting kit	Dual Stainless Steel Pole Mount
