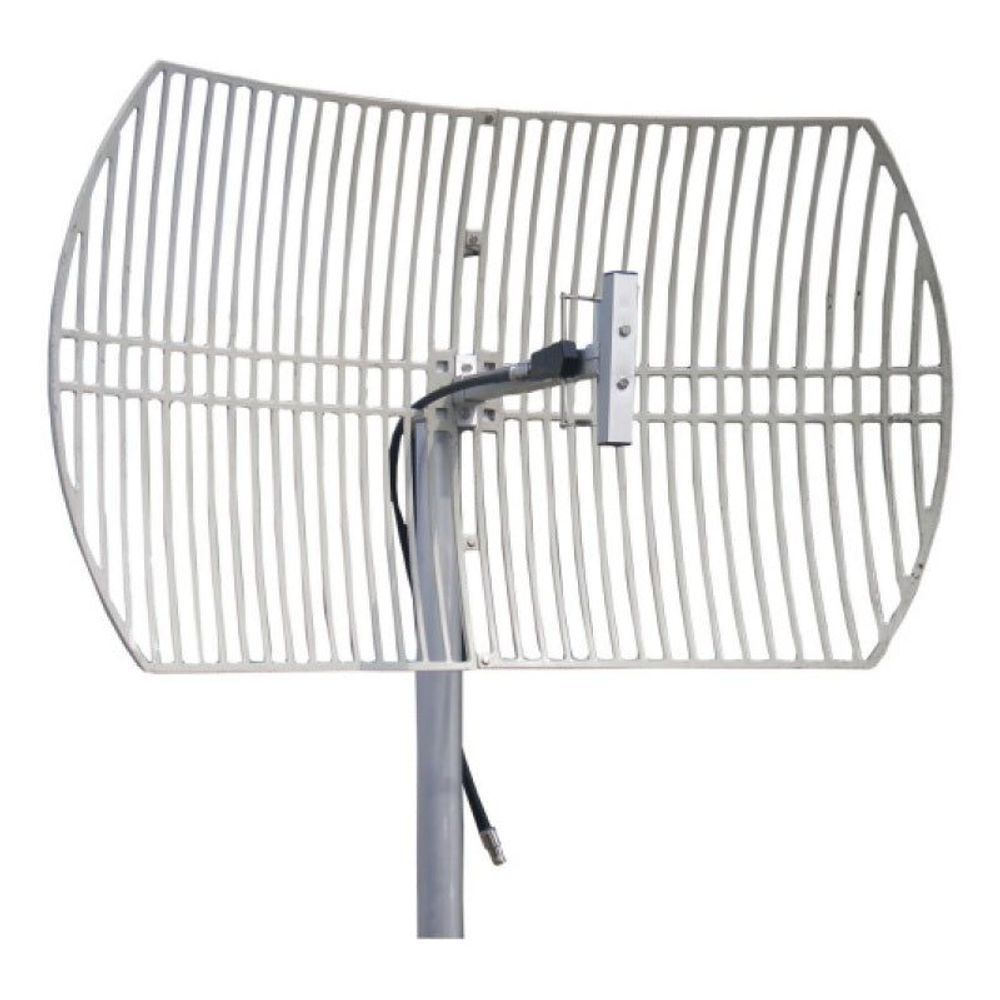

ANT-279 - 860MHz - 960MHz 15dBi Parabolic Grid Antenna - N Female

ANT-279 - 860MHz - 960MHz 15dBi Parabolic Grid Antenna - N Female

ANT-279

$198.95

Tax included.

19 items available
Select quantity
Description
860 - 960MHz 15dBi Parabolic Grid Antenna - N-Female for ISM 900MHz, GSM, LoRaWAN IoT, SigFox and Wireless LAN Systems. It is ideally suited for Point to multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female type connectors Also included with this Grid Antenna is a mast mounting kit, consisting of a heavy-duty galvanised steel pole mount bracket, this kit allows installation on masts up to 80 mm in diameter.
Features
  • Broadband Directional Antenna with High Gain, Low VSWR
  • Die cast aluminum grid with UV stable light gray powder coat finish
  • Suitable for LoRaWAN and Sigfox 865MHz, 868MHz and 915MHz, 923MHz IoT applications
Details
Manufacturer's Product Code ANT-279
Frequencey Range 860 - 960MHz
Gain 15dBi
Vertical Beamwidth 30deg
Horizontal Beamwidth 19deg
F/B Ratio 25dB
VSWR =2.0
Impedance 50Ohm
Polarization Vertical or Horizontal
Max. Power 100W
Connector Type N Female
Dimension 0.6m x 0.9m
Weight 3.6Kg(with bracket)
Pole Diameter 40 - 50mm
Details
Pole Mount Included





Specifications





Details
Manufacturer's Product Code ANT-279
Frequencey Range 860 - 960MHz
Gain 15dBi
Vertical Beamwidth 30deg
Horizontal Beamwidth 19deg
F/B Ratio 25dB
VSWR =2.0
Impedance 50Ohm
Polarization Vertical or Horizontal
Max. Power 100W
Connector Type N Female
Dimension 0.6m x 0.9m
Weight 3.6Kg(with bracket)
Pole Diameter 40 - 50mm
