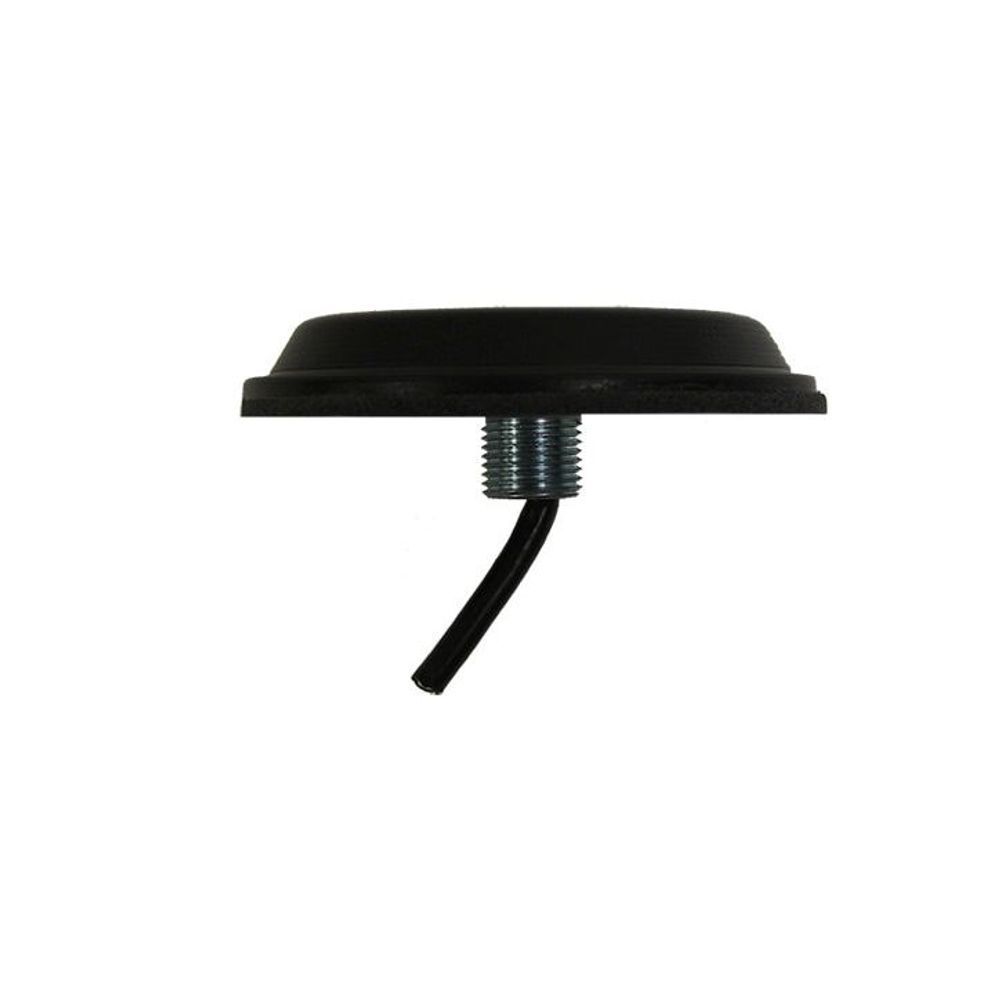

Name: ANT-275 - 3dBi 865-870 MHz Heavy Duty Outdoor Omni Antenna With 3 FT Cable RF-195 SMA Male
Brand: Tech Supply Shed
SKU: ANT-275
Price: 125.35 NZD
Availability: InStock

ANT-275 - 3dBi 865-870 MHz Heavy Duty Outdoor Omni Antenna With 3 FT Cable RF-195 SMA Male

ANT-275

$125.35

Tax included.

3 items available

Select quantity

Description

Mobile Mark 3dBi 865-870 MHz Heavy Duty Outdoor Omni Antenna With 3 FT Cable RF-195 SMA Male. The HD3-868 is a Low Profile Heavy Duty ISM & LoRaWAN IoT Antenna. It has 3 dBi peak gain. It has a frequency range of 865 to 870 MHz.

The HD3 Series Antennas are Ground Plane Dependent, therefore a ground plane is required. In addition, it is ideal for ISM & LoRaWAN IoT M2M capability in environments where the antenna is subject to wear and tear.

The product comes standard with 3 feet (91.4cm) of cable, but custom cable lengths are available. These heavy duty ISM antennas are enclosed in a heavy-duty radome made out of black ASA plastic, which provides a durable housing that is also UV resistant.

Features

Sleek profile with small SMA connectors
Models for ISM or RFID applications
Designed to work with a Ground Plane
Perfect for IN865 and EU868 LoRaWAN applications

Details
Manufacturer's Product Code	HD3-868-3C-BLK-36
Frequency	865 - 870 MHz
Gain	3 dBi peak
VSWR	less than 2:1
Impedance	50 Ohm nominal
Maximum Power	10 watts
Operating Temp	-40degC to +80degC
Polarization	Vertical
Dimensions	.625” H x 3.52” W ( 1.59cm x 8.94cm )
Radome Material	Black ASA UV Resistant
Mounting	5/8 - 18 x .50 threaded stud
Net Weight	8 oz ( 226g )
Pigtail Cable	RG-58, 1 foot ( 30.5cm )
Pigtail Connector	SMA Plug ( Male )
Shock & Vibration	EN 61373, IEEE1478, MIL-810G
Water Ingress	IP67

Details
Mounting	Hex Nut Included

Specifications

Details
Manufacturer's Product Code	HD3-868-3C-BLK-36
Frequency	865 - 870 MHz
Gain	3 dBi peak
VSWR	less than 2:1
Impedance	50 Ohm nominal
Maximum Power	10 watts
Operating Temp	-40degC to +80degC
Polarization	Vertical
Dimensions	.625” H x 3.52” W ( 1.59cm x 8.94cm )
Radome Material	Black ASA UV Resistant
Mounting	5/8 - 18 x .50 threaded stud
Net Weight	8 oz ( 226g )
Pigtail Cable	RG-58, 1 foot ( 30.5cm )
Pigtail Connector	SMA Plug ( Male )
Shock & Vibration	EN 61373, IEEE1478, MIL-810G
Water Ingress	IP67
