Name: ANT-274 - 3dBi 902-928 MHz Heavy Duty Omni Antenna With 3 FT Cable RF-195 SMA Male
Brand: Tech Supply Shed
SKU: ANT-274
Price: 195.50 NZD
Availability: OutOfStock

ANT-274 - 3dBi 902-928 MHz Heavy Duty Omni Antenna With 3 FT Cable RF-195 SMA Male

ANT-274

$195.50

Tax included.

Out of stock

Select quantity

Description

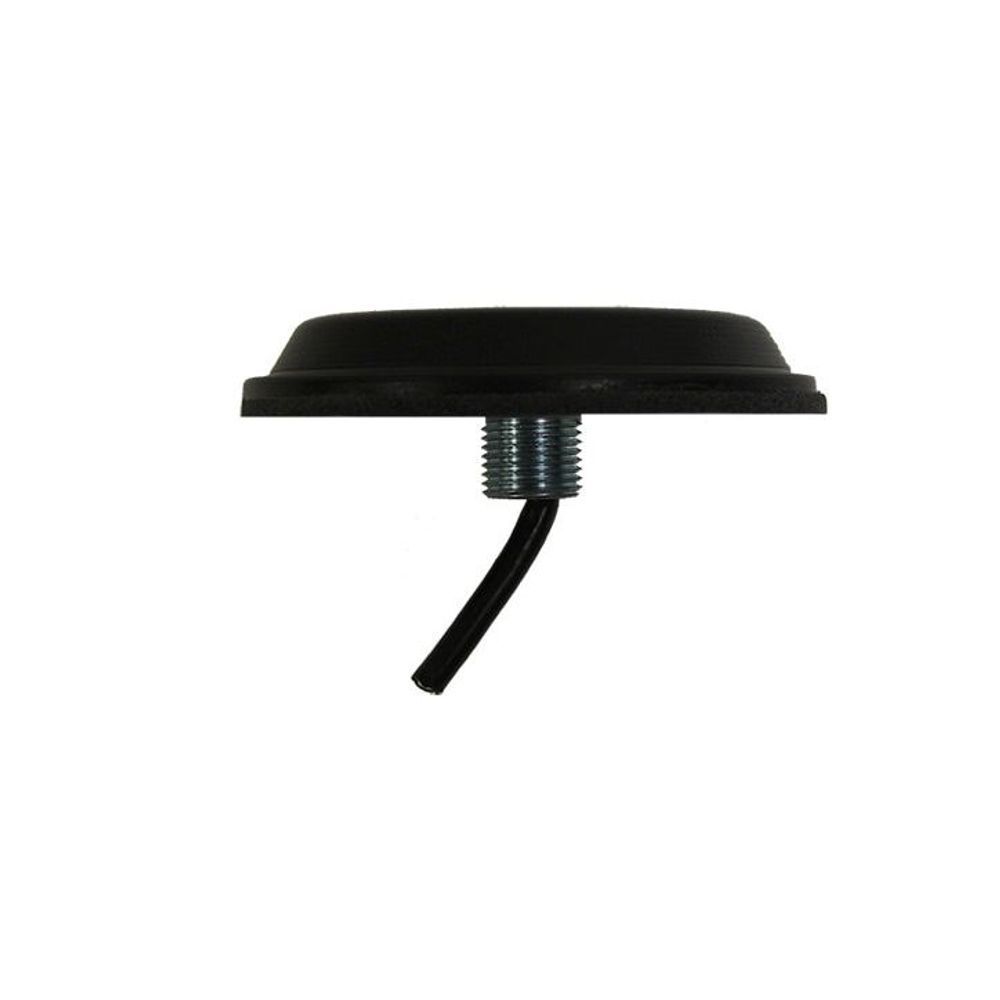

Mobile Mark 3dBi 902-928 MHz Heavy Duty Outdoor Omni Antenna With 3 FT Cable RF-195 SMA Male, The HD3-915 is a Low Profile Heavy Duty ISM & LoRaWANT IoT Antenna. It has 3 dBi peak gain. It has a frequency range of 902 to 928 MHz.

The HD3 Series Antennas are Ground Plane Dependent, therefore a ground plane is required. In addition, it is ideal for ISM & LoRaWAN IoT M2M capability in environments where the antenna is subject to wear and tear.

The product comes standard with 3 feet (91.4cm) of cable, but custom cable lengths are available. These heavy duty ISM antennas are enclosed in a heavy-duty radome made out of black ASA plastic, which provides a durable housing that is also UV resistant.

Features

Sleek profile with small SMA connectors
Models for ISM or RFID applications
Designed to work with a Ground Plane
Perfect for AU915 and AS923 LoRaWAN applications

Details
Manufacturer's Product Code	HD3-915-3C-BLK-36
Frequency	902 - 928 MHz
Gain	3 dBi peak
VSWR	less than 2:1
Impedance	50 Ohm nominal
Maximum Power	10 watts
Operating Temp	-40degC to +80degC
Polarization	Vertical
Dimensions	.625” H x 3.52” W ( 1.59cm x 8.94cm )
Radome Material	Black ASA UV Resistant
Mounting	5/8 - 18 x .50 threaded stud
Net Weight	8 oz ( 226g )
Pigtail Cable	RG-58, 1 foot ( 30.5cm )
Pigtail Connector	SMA Plug ( Male )
Shock & Vibration	EN 61373, IEEE1478, MIL-810G
Water Ingress	IP67

Details
Mounting	Hex Nut Included

Specifications

Details
Manufacturer's Product Code	HD3-915-3C-BLK-36
Frequency	902 - 928 MHz
Gain	3 dBi peak
VSWR	less than 2:1
Impedance	50 Ohm nominal
Maximum Power	10 watts
Operating Temp	-40degC to +80degC
Polarization	Vertical
Dimensions	.625” H x 3.52” W ( 1.59cm x 8.94cm )
Radome Material	Black ASA UV Resistant
Mounting	5/8 - 18 x .50 threaded stud
Net Weight	8 oz ( 226g )
Pigtail Cable	RG-58, 1 foot ( 30.5cm )
Pigtail Connector	SMA Plug ( Male )
Shock & Vibration	EN 61373, IEEE1478, MIL-810G
Water Ingress	IP67
