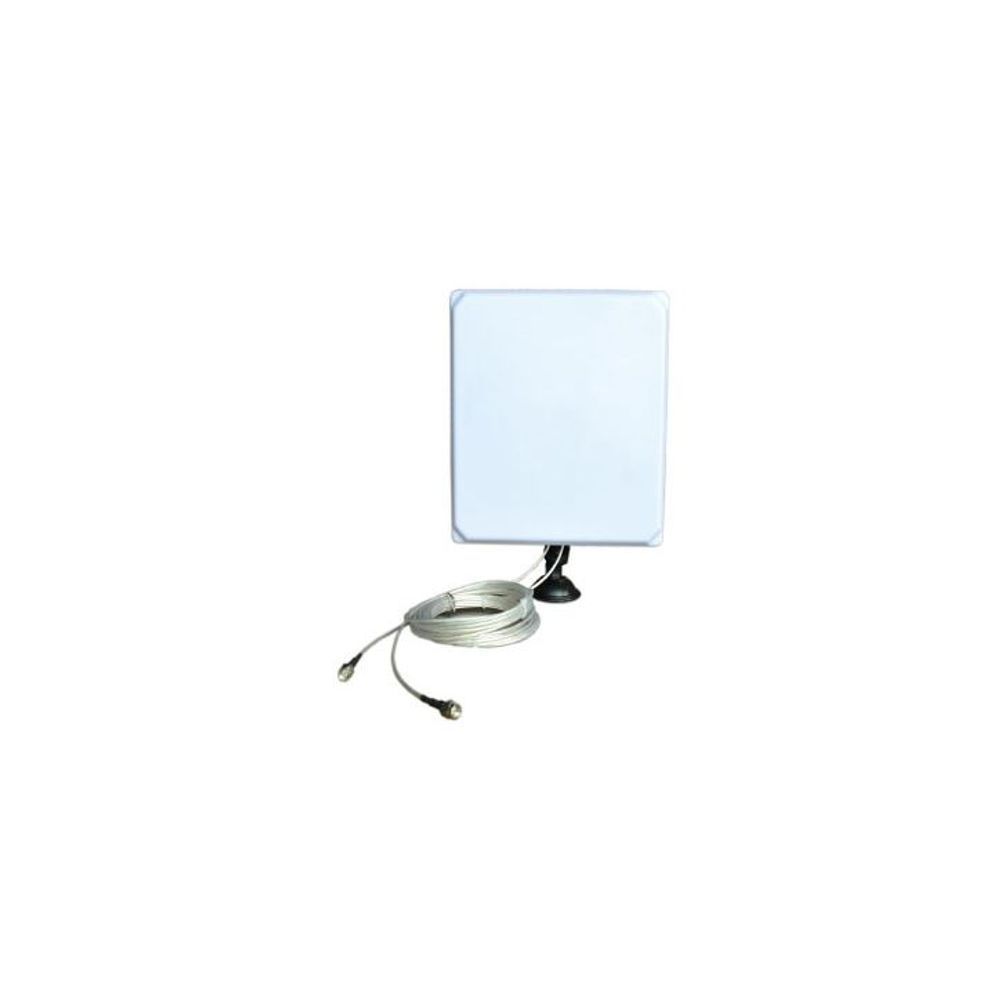

Name: ANT-261 - Cellular Broadband 698-960/1710-2700/3300-3800MHz 5G Indoor Dual Polarity Antenna
Brand: Tech Supply Shed
SKU: ANT-261
Price: 88.55 NZD
Availability: OutOfStock

ANT-261 - Cellular Broadband 698-960/1710-2700/3300-3800MHz 5G Indoor Dual Polarity Antenna

ANT-261

$88.55

Tax included.

Out of stock

Select quantity

Description

Cellular 5G 4dBi to 7dBi 698-960/1710-2700/3300-3800MHz Indoor Dual Polarity Broadband Directional Antenna. This multi-band antenna is very useful for increasing performance of your indoor 3G, 4G, 5G, LTE cellular broadband router.

Features

Great Dual polarity 3G, 4G, 5G, LTE cellular broadband antenna
Perfect for RBI (Rural Broadband Initiative) Cellular broadband Installations

Details
Manufacturer's Product Code	ANT-261
Frequency Range	698-960; 1710-2700; 3300-3800 MHz
Polarization	±45 degrees
VSWR	=2.0
Maximum Gain	Including 3m cable loss 4 to 7dBi
Horizontal Beamwidth	120, 70, 45 degrees
Vertical Beamwidth	110, 40, 30 degrees
Impedance	50 Ohms
Maximum power	50 Watts
Grounding	DC Ground
Connectors	2 x SMA-male
Antenna size	190 x 190 x 40 mm
Exposed cable size	300 cm
Net Weight	=0.5 kg
Radome material	ABS
Radome colour	White
Operating temperature	-40 to 60 degC
Application	Indoor
Mounting	Suction cup mounting

Details
Mounting	Window or Table mount Suction Cap

Specifications

Details
Manufacturer's Product Code	ANT-261
Frequency Range	698-960; 1710-2700; 3300-3800 MHz
Polarization	±45 degrees
VSWR	=2.0
Maximum Gain	Including 3m cable loss 4 to 7dBi
Horizontal Beamwidth	120, 70, 45 degrees
Vertical Beamwidth	110, 40, 30 degrees
Impedance	50 Ohms
Maximum power	50 Watts
Grounding	DC Ground
Connectors	2 x SMA-male
Antenna size	190 x 190 x 40 mm
Exposed cable size	300 cm
Net Weight	=0.5 kg
Radome material	ABS
Radome colour	White
Operating temperature	-40 to 60 degC
Application	Indoor
Mounting	Suction cup mounting
