Description

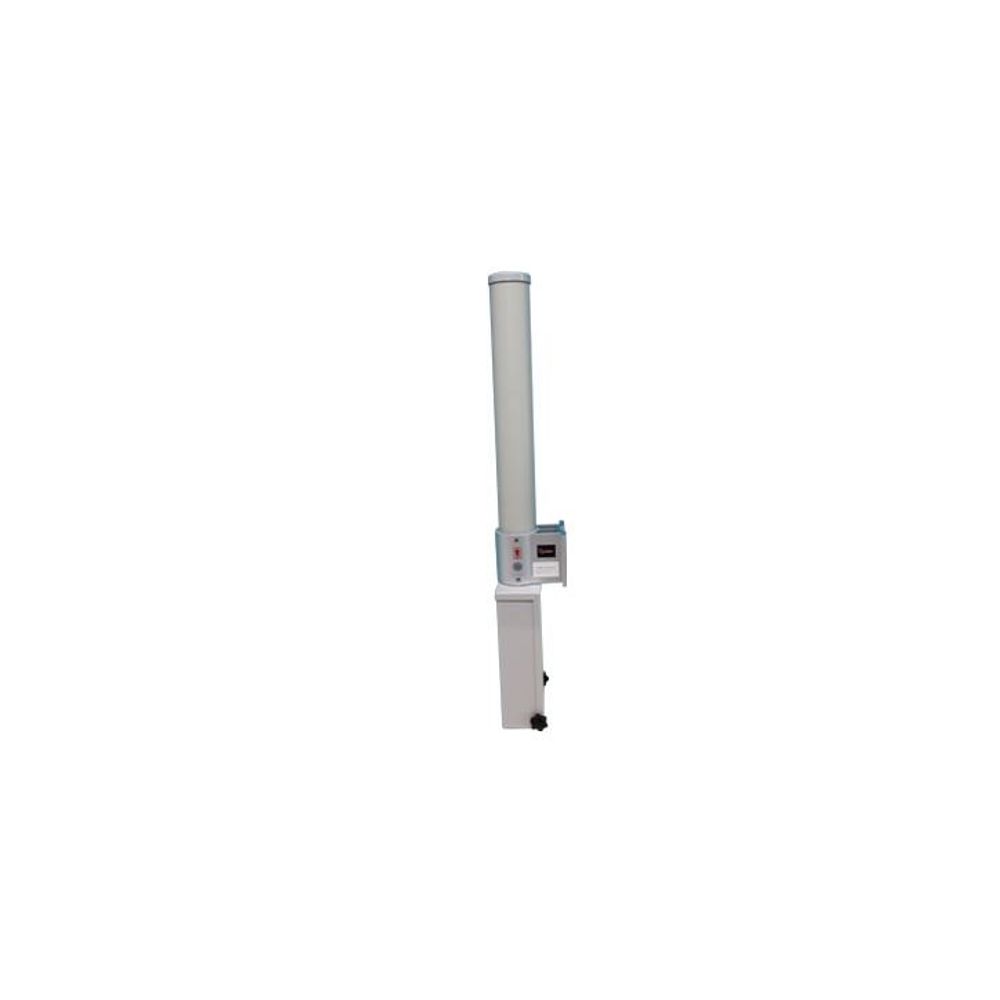

The KPPA-5GHZ-DPOMA-WC-3 builds upon KP’s dual polarized 5.15 – 5.95 GHz, 13 dBi, omni antenna which now comes with a larger integrated radio case that fits most popular radios from Cambium and Ubiquiti. This includes legacy radios supported by KP’s 2nd generation omni's with cases and Ubiquiti’s 5AC Prism Gen 2 (RP-5AC-GEN2) and Cambium’s ePMP 2000 radio.
The radio case protects both the radio and cables from direct rain and sun, reducing the chance of failure in the field and simplifying installation with minimal taping of connectors. The antenna comes with two N-type Female Right Angle to RP-SMA Female Straight LMR200 cables of 6” length. Fully assemble the antenna and radio on the ground and simply plug in the ethernet cable through the grommet in the case.
Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.
If you only require a radius of 5 to 6 miles, the KPPA-5GHZ-DPOMA-WC-3 omni antenna may be the solution you are looking for, providing a very consistent pattern with no null zones.
Rugged, weatherproof and equipped with a versatile pipe style mount, the KP performance omni antenna is built for a broad range of environments and features a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength mounting brackets and radio case are corrosive resistant and built to withstand wind speeds of up to 130mph.
The radio case protects both the radio and cables from direct rain and sun, reducing the chance of failure in the field and simplifying installation with minimal taping of connectors. The antenna comes with two N-type Female Right Angle to RP-SMA Female Straight LMR200 cables of 6” length. Fully assemble the antenna and radio on the ground and simply plug in the ethernet cable through the grommet in the case.
Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.
If you only require a radius of 5 to 6 miles, the KPPA-5GHZ-DPOMA-WC-3 omni antenna may be the solution you are looking for, providing a very consistent pattern with no null zones.
Rugged, weatherproof and equipped with a versatile pipe style mount, the KP performance omni antenna is built for a broad range of environments and features a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength mounting brackets and radio case are corrosive resistant and built to withstand wind speeds of up to 130mph.
Features
- Metal radio casing to contain the RF loss from the rocket radio.
- Metal case covers up the N-Male connection on the sector and SMA connections on the radio.
- Out performs our competitors by 1 to 3 dBi.
- Will not require a RF shield if using a UBNT radio.
- Functional mounting bracket.
- Flexible LMR200 cables provided.
- Stainless steel hardware.
- Cost effective all in one Omni Antenna solution with radio casing attached.
| Details | |
|---|---|
| Manufacturer's Product Code | KPPA-5GHZ-DPOMA-WC-3 |
| Frequency range | 5150-5900 MHz |
| Polarization | Vertical and Horizontal |
| Gain | 12 to 16 dBi |
| Elevation 3dB beamwidth | 6.5 ° |
| Electrical Downtilt | 2 ° |
| VSWR | < 2:1 |
| Return loss | > 10 dB |
| Cross-pol ratio | > 20 dB |
| V-H port isolation | > 30 dB |
| Input power | 100 W max per port |
| Impedance | 50 O |
| Connector Type | Type N Female x 2 |
| Dimensions | 35” x 4” x 6” |
| Weight | 9 lb |
| Mounting method | Mast |
| Mounting pole dia | 1 ½” – 2 ½” |
| Radome material | UV resistant PVC |
| Temperature range | -40° to +65° C / +150° F |
| Wind speed | 210 km/h / 130 mph |
| UV protection | UV resistant PVC |
| Ingress protection | IP55 rain resistant |
| Lightning protection | DC Ground |
| Details | |
|---|---|
| Pole Mount | Included, power coated metal case |
| Coax Cables | (2) N-Male to RP-SMA Male Included |
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | KPPA-5GHZ-DPOMA-WC-3 |
| Frequency range | 5150-5900 MHz |
| Polarization | Vertical and Horizontal |
| Gain | 12 to 16 dBi |
| Elevation 3dB beamwidth | 6.5 ° |
| Electrical Downtilt | 2 ° |
| VSWR | < 2:1 |
| Return loss | > 10 dB |
| Cross-pol ratio | > 20 dB |
| V-H port isolation | > 30 dB |
| Input power | 100 W max per port |
| Impedance | 50 O |
| Connector Type | Type N Female x 2 |
| Dimensions | 35” x 4” x 6” |
| Weight | 9 lb |
| Mounting method | Mast |
| Mounting pole dia | 1 ½” – 2 ½” |
| Radome material | UV resistant PVC |
| Temperature range | -40° to +65° C / +150° F |
| Wind speed | 210 km/h / 130 mph |
| UV protection | UV resistant PVC |
| Ingress protection | IP55 rain resistant |
| Lightning protection | DC Ground |
