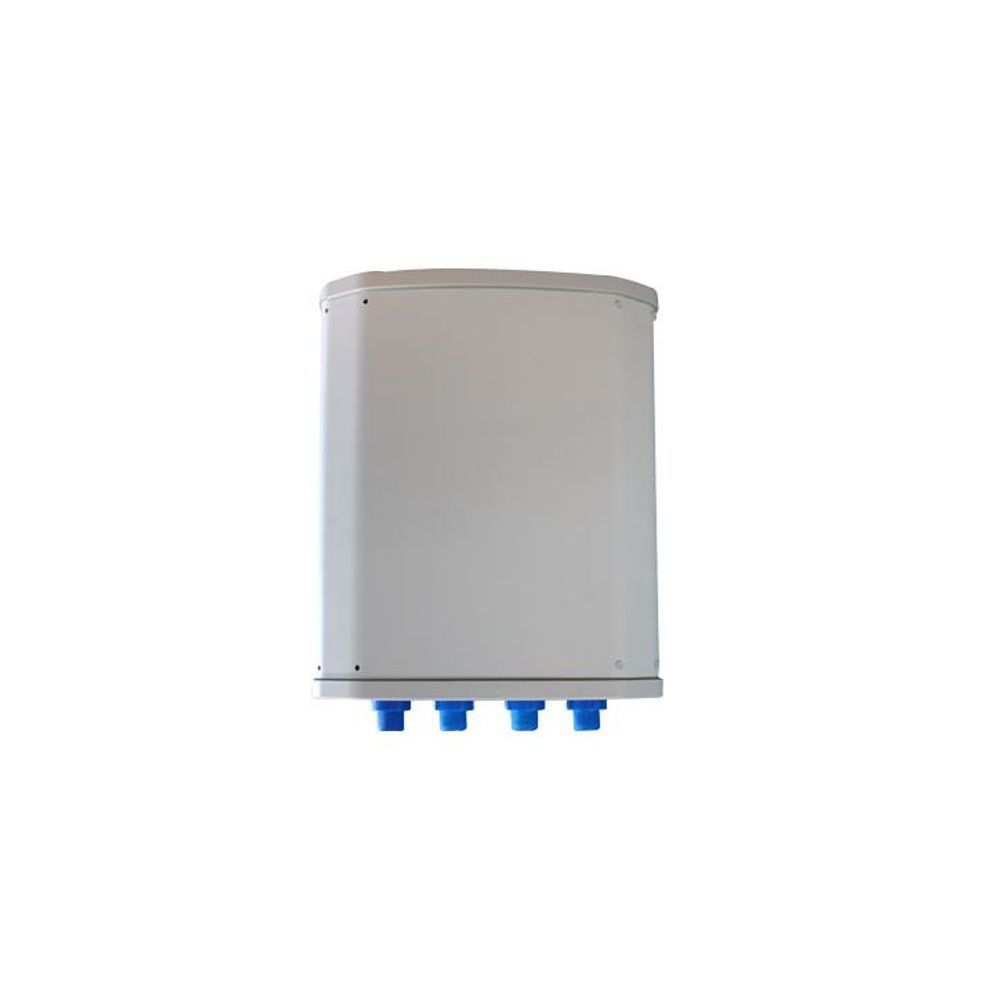

Name: ANT-253 - 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
Brand: Tech Supply Shed
SKU: ANT-253
Price: 316.25 NZD
Availability: InStock

ANT-253 - 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna

ANT-253

$316.25

Tax included.

6 items available

Select quantity

Description

The ANT-253 is a 4 Port Tri-Band GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz. This antenna is the ideal solution for all of your cellular needs.

Features

Broadband Directional Antenna with Low VSWR
Seal with Radome, Strong Protection against the elements
Supplied with stainless steel mast down-tilt bracket
Perfect for RBI (Rural Broadband Initiative) Installations
Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications

Details
Manufacturer's Product Code	ANT-253
Frequency range	Port 1&2 - 698-960, 1710-2700 MHz; Port 3&4 - 3300-3800, 3300-3800 MHz
Polarization	±45 Deg
Gain	6.5dBi
Half-power beam width	60 Deg
Front-to-back ratio	23dB
Cross-polar discrimination	17dB
Isolation	23dB
Impedance	50 Ohm
VSWR	=1.5
Intermodulation IM3	2×43dBm carrier =-150dBc
Maximum power	200W
Lighting protection	DC Ground
Connectors	4×7-16 DIN Female
Height/width/depth	465×385×138mm

Details
Pole Mount	Included

Specifications

Details
Manufacturer's Product Code	ANT-253
Frequency range	Port 1&2 - 698-960, 1710-2700 MHz; Port 3&4 - 3300-3800, 3300-3800 MHz
Polarization	±45 Deg
Gain	6.5dBi
Half-power beam width	60 Deg
Front-to-back ratio	23dB
Cross-polar discrimination	17dB
Isolation	23dB
Impedance	50 Ohm
VSWR	=1.5
Intermodulation IM3	2×43dBm carrier =-150dBc
Maximum power	200W
Lighting protection	DC Ground
Connectors	4×7-16 DIN Female
Height/width/depth	465×385×138mm

Warranty

Brand

Tech Supply Shed
