Description

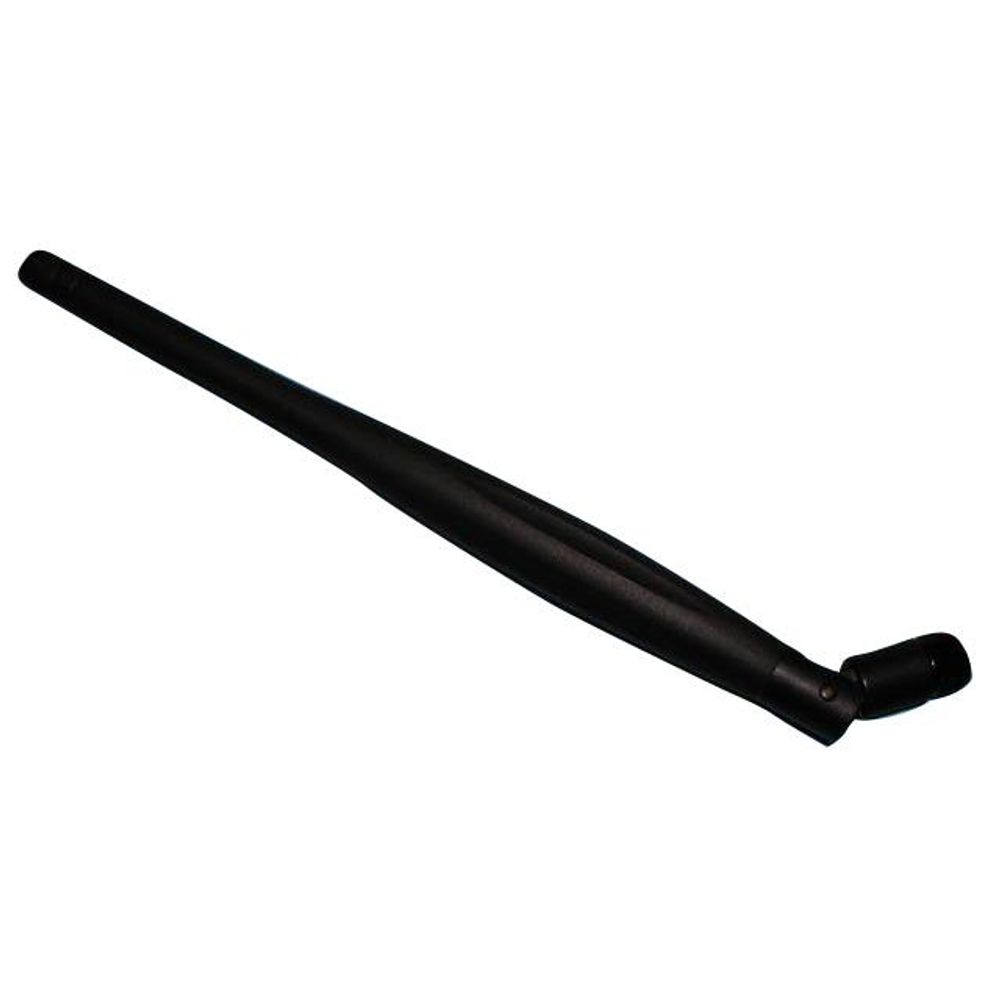

The L-com HG903RD-SM is a coaxial sleeve design with an omni-directional pattern antenna. It is ideally suited for 900MHz ISM band applications as well as 900MHz cellular applications. This flexible antenna features a tilt-and-swivel SMA-Male connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for 900MHz radios that are equipped with SMA-Male connectors such as the Vodafone Vodem and wireless video transmitters and receivers, 900MHz digital spread spectrum radios and more.
Features
- Better performance than most stock AP antennas
- Flexible Rubber Duck antenna
- Tilt and swivel design
- LoRaWAN AS923, AU915, EU868 frequencies
| Details | |
|---|---|
| Manufacturer's Product Code | HG903RD-SM |
| Frequency Range | 860-960MHz |
| Gain | 3dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 60deg |
| Horizontal Beamwidth | 360deg |
| Connector Type | SMA Male |
| Dimensions | 219x16mm |
| Details | |
|---|---|
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | HG903RD-SM |
| Frequency Range | 860-960MHz |
| Gain | 3dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 60deg |
| Horizontal Beamwidth | 360deg |
| Connector Type | SMA Male |
| Dimensions | 219x16mm |
