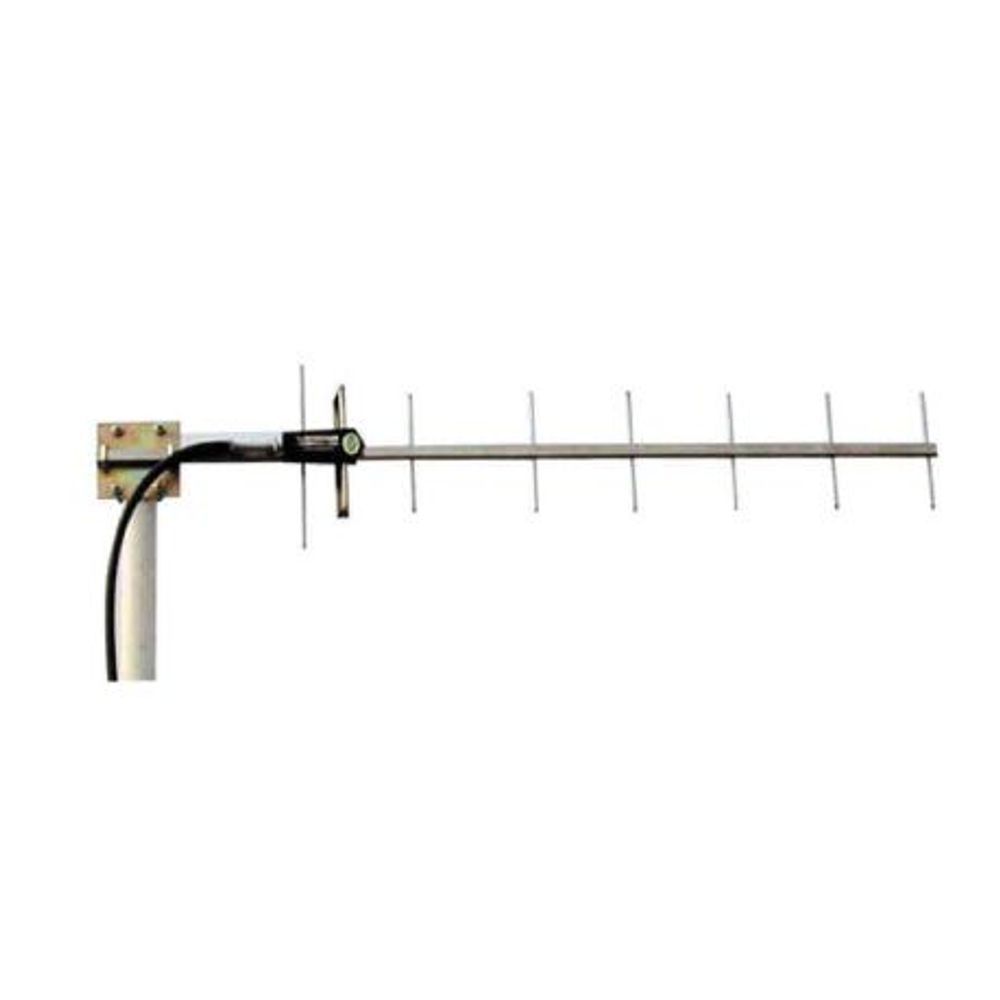

ANT-148 - 11dBi 860-960MHz Stainless Steel Yagi Antenna

ANT-148 - 11dBi 860-960MHz Stainless Steel Yagi Antenna

ANT-148

$110.40

Tax included.

In stock, ready to be shipped
Select quantity
Description
The 800MHz to 900MHz Series Yagi antenna system is constructed of Stainless Steel for outstanding service life. Individual elements are welded to the main beam for permanent attachment. Welded elements give more consistent signal performance because they ensure high conductivity across the antenna surface. These antennas have high gain and good front to back performance to minimize external interference. They can be mounted in vertical or horizontal polarization. They come standard with an 18” pigtail cable terminated with an N Female connector.
Features
  • This 900MHz antenna is a great Rural Broadband Initiative GSM Antenna (RBI project New Zealand). Also see our range of suitable RBI compatible coax cables below.
  • Perfect for 868MHz and 923MHz, Sigfox and LoRaWAN IoT Applications
  • Stainless Steel construction
Details
Manufacturer's Product Code ANT-148
Frequency Range 860-960MHz
Gain 11dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 40deg
Horizontal Beamwidth 48deg
Connector Type N-Type Female
Dimensions 94cm
Pole Mount Diameter 32-50mm
Details
Pole Mount Yes, U-Bolts included





Specifications





Details
Manufacturer's Product Code ANT-148
Frequency Range 860-960MHz
Gain 11dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 40deg
Horizontal Beamwidth 48deg
Connector Type N-Type Female
Dimensions 94cm
Pole Mount Diameter 32-50mm
Warranty
Brand

Tech Supply Shed

Restock ETA (if applicable)

Product Details

Specifications

  • Tech Supply Shed

  • HeadingANT-148 - 11dBi 860-960MHz Stainless Steel Yagi Antenna

Description
The 800MHz to 900MHz Series Yagi antenna system is constructed of Stainless Steel for outstanding service life. Individual elements are welded to the main beam for permanent attachment. Welded elements give more consistent signal performance because they ensure high conductivity across the antenna surface. These antennas have high gain and good front to back performance to minimize external interference. They can be mounted in vertical or horizontal polarization. They come standard with an 18” pigtail cable terminated with an N Female connector.
Features
  • This 900MHz antenna is a great Rural Broadband Initiative GSM Antenna (RBI project New Zealand). Also see our range of suitable RBI compatible coax cables below.
  • Perfect for 868MHz and 923MHz, Sigfox and LoRaWAN IoT Applications
  • Stainless Steel construction
Details
Manufacturer's Product Code ANT-148
Frequency Range 860-960MHz
Gain 11dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 40deg
Horizontal Beamwidth 48deg
Connector Type N-Type Female
Dimensions 94cm
Pole Mount Diameter 32-50mm
Details
Pole Mount Yes, U-Bolts included





Specifications





Details
Manufacturer's Product Code ANT-148
Frequency Range 860-960MHz
Gain 11dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 40deg
Horizontal Beamwidth 48deg
Connector Type N-Type Female
Dimensions 94cm
Pole Mount Diameter 32-50mm
Brand

Tech Supply Shed

Warranty
