Description

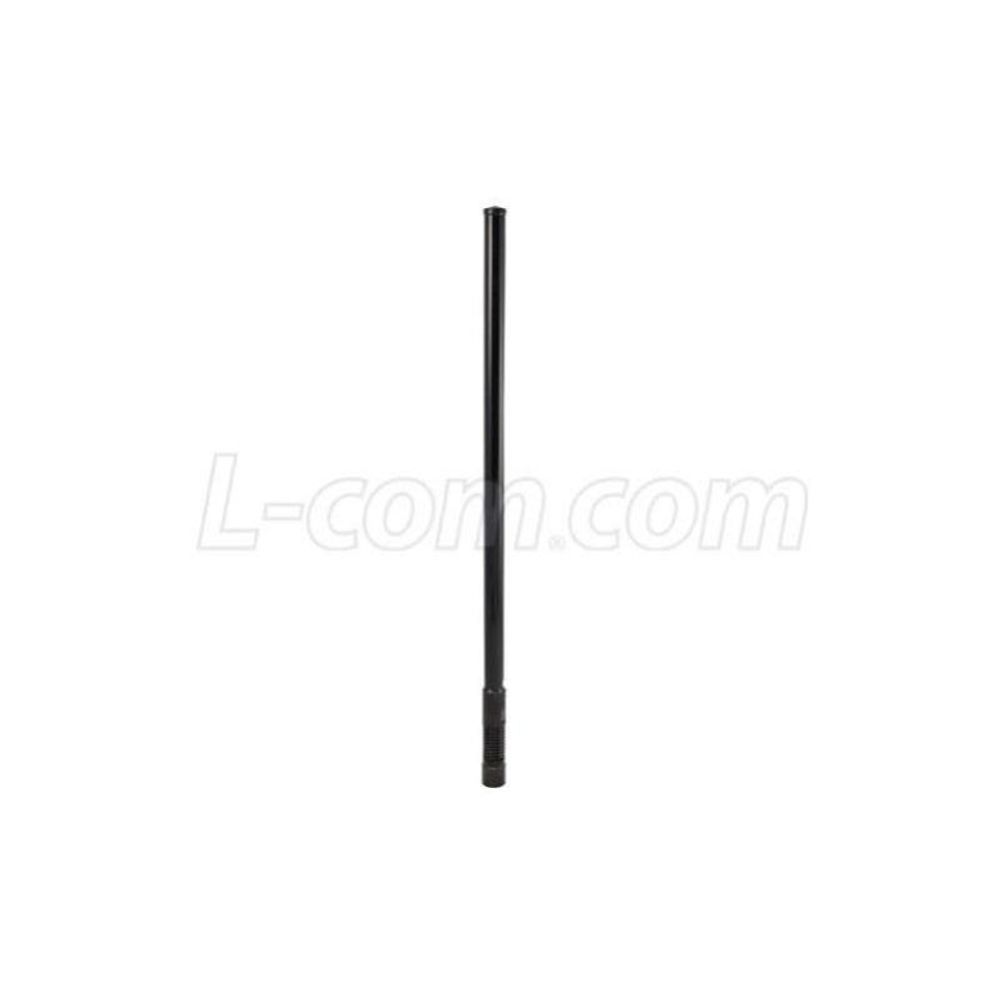

The HyperGain HG2408UR-NM is a high performance 7.4dBi 2.4GHz Wireless Omni-directional elevated feed antenna designed for the 2.4 GHz ISM band. This compact and lightweight antenna is ideally suited for IEEE 802.11b and 802.11g wireless LANs, public wireless hotspots, Bluetooth and other multipoint and mobile applications where high gain and wide coverage is desired. This antenna features a co-linear stacked design with an elevated feed point. This allows the antenna to operate using a very small ground plane. Measuring 17.5" long, this antenna features an aesthetic black finish. It features a built-in shock spring and is designed with a standard N-Male connector that allows for ease of installation to similar N-Female mounting systems (mobile and fixed mounts). Works great with the Ubiquiti and MikroTik series of high power wireless access points.
Features
- Can be Mounted on Magnetic base or Permanent Base (order separately)
- Compact size
- Flexible Spring Base for Antenna Flexibility
- Weather-Proof, High Performance
- Fixed mounts available
| Details | |
|---|---|
| Manufacturer's Product Code | HG2408UR-NM |
| Frequency Range | 2400-2500MHz |
| Gain | 7.4dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 19deg |
| Horizontal Beamwidth | 360deg |
| Connector Type | N-Type Male |
| Dimensions | 368mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | HG2408UR-NM |
| Frequency Range | 2400-2500MHz |
| Gain | 7.4dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 19deg |
| Horizontal Beamwidth | 360deg |
| Connector Type | N-Type Male |
| Dimensions | 368mm |
