ANT-131 - L-com 2.4/ 4.9-5.8 GHz Dual Feed Dual Band 90 Deg Sector Antenna

ANT-131 - L-com 2.4/ 4.9-5.8 GHz Dual Feed Dual Band 90 Deg Sector Antenna

ANT-131

$499.10

Tax included.

7 items available
Select quantity
Description

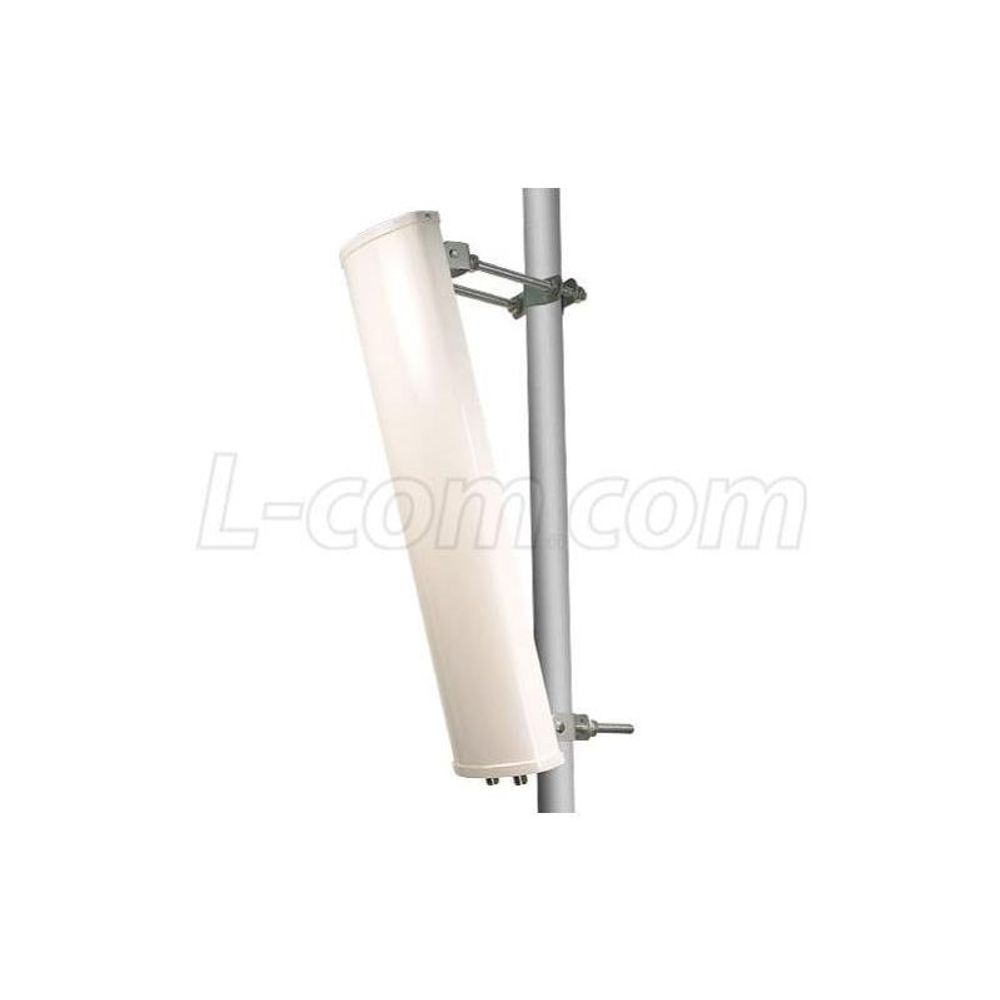

The HyperGain HG2458-14P-090 is a high performance dual-band wireless sector panel antenna which combines high gain with a 90° beam-width. Its dual-band design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5 GHz (4900-5900 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications. Works great with the MikroTik high power wireless access points. The HG2458-14P-090 is actually two antennas in one. A 2.4 GHz antenna and a 4.9 GHz to 5.9 GHz antenna integrated into a single enclosure. Each internal antenna is fed via its own individual connector. This dual-band sector antenna features a heavy-duty fiberglass radome for all-weather operation. The heavy-duty mounting system allows installation adjusts from 0 to 10 degrees down tilt. This is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.
Features
  • Dual-Band Design
  • Rugged and Weatherproof
  • Ideal for Wireless Internet "Cell" Sites
  • Dual band: 2.4 GHz and 4.9 GHz to 5.9 GHz
  • Dual feed via (2) Integral N-Female Connectors
  • 10° down-tilt mast mounting bracket and hardware
  • Includes mast mounting hardware
  • All weather operation
  • Great for GWN7605LR, GWN7660LR, UAP-AC-M
Details
Manufacturer's Product Code HG2458-14P-090
Frequency Range 2400-2500MHz, 4900-5900MHz
Gain 14dBi
Polarisation Vertical
Vertical Beamwidth 16deg @ 2.4GHz, 8deg @ 5GHz
Horizontal Beamwidth 90deg
Connector Type 2x N-Type Female
Dimensions 610x160x60mm
Pole Mount Diameter 40-53mm



Details
Pole Mount Included
Warranty Standard 12 Month RTB





Specifications





Details
Manufacturer's Product Code HG2458-14P-090
Frequency Range 2400-2500MHz, 4900-5900MHz
Gain 14dBi
Polarisation Vertical
Vertical Beamwidth 16deg @ 2.4GHz, 8deg @ 5GHz
Horizontal Beamwidth 90deg
Connector Type 2x N-Type Female
Dimensions 610x160x60mm
Pole Mount Diameter 40-53mm
