ALGpower SM9S Site Monitor Site With humidity and temperature sensor

ALGpower SM9S Site Monitor Site With humidity and temperature sensor

SM9S

$438.15

Tax included.

Out of stock
Select quantity
Description

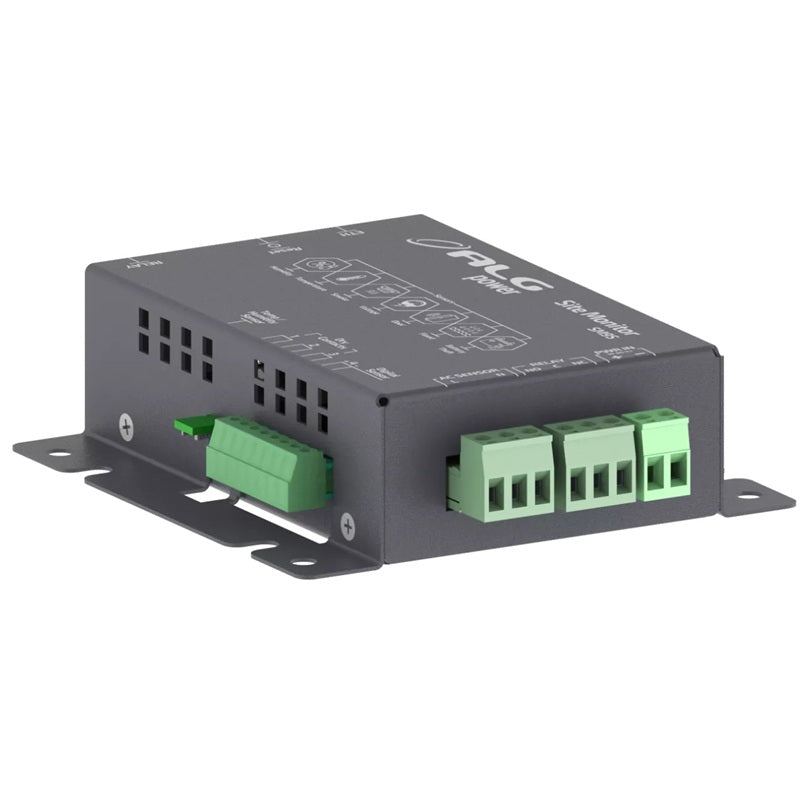

ALGpower SM9S Site Monitor Site With humidity and temperature sensor
ALGpower SM9S Site Monitor Site With humidity and temperature sensor. The Site Monitor is a monitoring and security module developed with the aim of providing accurate information through the Web server and SNMP-V2 protocol. Its versatility is one of its highlights, allowing seamless integration with a variety of leading market management software, such as Zabbix, Grafana, LibreNMS, The Dude, among other systems.

With an intuitive web interface, the Site Monitor provides quick configuration and access to crucial information, including AC and DC voltage measurement, as well as temperature data, making environment monitoring a swift and easy task to perform. Its broad applicability is an advantage, covering critical environments such as POPs, Data Centers, Racks, and telecom towers, as well as other locations requiring real-time monitoring.

The product offers an additional feature of equipment control through a relay output. This output allows manual or automatic activation of connected devices. The "scheduling" configuration is one of the main highlights of this function, allowing users to program the activation time as well as the days of the week when the relay will change state. This configuration enables event scheduling and precise control of connected devices.

Additionally, the Site Monitor SM9S also features three dry contact sensors and a digital input, adding flexibility to the device and allowing it to be used in various ways. It can function as a smoke sensor, door sensor, magnetic sensor, presence sensor, battery sensor, and other possibilities. This provides effective customization, adjusting monitoring according to the specific needs of each installation.
Features
  • AC mains voltage monitoring
  • DC power supply voltage monitoring
  • Local WEB server for control and monitoring
  • SNMP-V2 protocol for monitoring
  • Compatible with monitoring systems such as Zabbix, Grafana, LibreNMS, The Dude, among others
  • 3 inputs for dry contact sensors
  • 1 input for digital sensor
  • Temperature monitoring (integrated sensor)
  • Relative humidity monitoring (integrated sensor)
  • Programmable dry contact output for up to 5A
  • Possibility of sending alerts and status via email and Telegram, in conjunction with SNMP manager software
Details
Manufacturer's Code SM9S (37030020001)
Input Power Supply Voltage 10 – 60VDC
Input Connection RJ45 PoE 802.3af Connector, Terminal Block Connector for up to 1.5mm wire
AC Voltage Sensor 60 – 270VAC, Terminal Block Connector for wire up to 1.5mm
DC Voltage Sensor 10 – 60 VDC Terminal Block Connector for wire up to 1.5mm
Temperature Sensor -20°C to 65°C, Integrated Sensor
Humidity Sensor 0% to 100% RH, Integrated Sensor
Dry Contact Inputs 0 - 60 VDC Digital Input 0 - 60 VDC (Voltage above 5 VDC refers to logic level 1)
Relay 0V - 250 VAC to 5 A, Terminal block connector for wire up to 1.5mm
Ethernet 10/100 Mbps
supported Protocols TCP/IP – SNMP V2
Firmware Updates Remote Update Management Interface
Relay Output Voltage, temperature, humidity, dry contact inputs, digital input alarms
Monitoring AC voltage, DC voltage, temperature, humidity, dry contact inputs, digital input, automation relay status measurement. Allows customization of the name of each sensor, making it easier to identify connected devices.
Commands Allows remote On/Off relay command sending
Scheduling Allows configuring up to 10 scheduling for relay activation, which can be programmed with time and day of the week accuracy
Manually Restore Factory Settings The command is executed through a button located on the front panel. When pressed, it is possible to restore network settings
AC Input to Earth Isolation 1000 VAC
DC Input to Earth Isolation 1000 VAC
Relay Contacts to Earth Isolation 1000 VAC
Operating Temperature -10°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Device Power On Indicator (Green LED) Device Power On
Relay Activation Indicator (Green LED) Relay Activated
MTBF (Mean Time Between Failures) 120,000 hours
Installation Mode Rack or Panel Mounting
Dimensions (H x W x D)/ Weight 34 x 110 x 113 mm / 0.297 k
Details
Warranty

1 Year

Brand

ALGcom

Restock ETA (if applicable)

Product Details

Specifications

  • ALGcom

  • HeadingALGpower SM9S Site Monitor Site With humidity and temperature sensor

Description
ALGpower SM9S Site Monitor Site With humidity and temperature sensor
ALGpower SM9S Site Monitor Site With humidity and temperature sensor. The Site Monitor is a monitoring and security module developed with the aim of providing accurate information through the Web server and SNMP-V2 protocol. Its versatility is one of its highlights, allowing seamless integration with a variety of leading market management software, such as Zabbix, Grafana, LibreNMS, The Dude, among other systems.

With an intuitive web interface, the Site Monitor provides quick configuration and access to crucial information, including AC and DC voltage measurement, as well as temperature data, making environment monitoring a swift and easy task to perform. Its broad applicability is an advantage, covering critical environments such as POPs, Data Centers, Racks, and telecom towers, as well as other locations requiring real-time monitoring.

The product offers an additional feature of equipment control through a relay output. This output allows manual or automatic activation of connected devices. The "scheduling" configuration is one of the main highlights of this function, allowing users to program the activation time as well as the days of the week when the relay will change state. This configuration enables event scheduling and precise control of connected devices.

Additionally, the Site Monitor SM9S also features three dry contact sensors and a digital input, adding flexibility to the device and allowing it to be used in various ways. It can function as a smoke sensor, door sensor, magnetic sensor, presence sensor, battery sensor, and other possibilities. This provides effective customization, adjusting monitoring according to the specific needs of each installation.
Features
  • AC mains voltage monitoring
  • DC power supply voltage monitoring
  • Local WEB server for control and monitoring
  • SNMP-V2 protocol for monitoring
  • Compatible with monitoring systems such as Zabbix, Grafana, LibreNMS, The Dude, among others
  • 3 inputs for dry contact sensors
  • 1 input for digital sensor
  • Temperature monitoring (integrated sensor)
  • Relative humidity monitoring (integrated sensor)
  • Programmable dry contact output for up to 5A
  • Possibility of sending alerts and status via email and Telegram, in conjunction with SNMP manager software
Details
Manufacturer's Code SM9S (37030020001)
Input Power Supply Voltage 10 – 60VDC
Input Connection RJ45 PoE 802.3af Connector, Terminal Block Connector for up to 1.5mm wire
AC Voltage Sensor 60 – 270VAC, Terminal Block Connector for wire up to 1.5mm
DC Voltage Sensor 10 – 60 VDC Terminal Block Connector for wire up to 1.5mm
Temperature Sensor -20°C to 65°C, Integrated Sensor
Humidity Sensor 0% to 100% RH, Integrated Sensor
Dry Contact Inputs 0 - 60 VDC Digital Input 0 - 60 VDC (Voltage above 5 VDC refers to logic level 1)
Relay 0V - 250 VAC to 5 A, Terminal block connector for wire up to 1.5mm
Ethernet 10/100 Mbps
supported Protocols TCP/IP – SNMP V2
Firmware Updates Remote Update Management Interface
Relay Output Voltage, temperature, humidity, dry contact inputs, digital input alarms
Monitoring AC voltage, DC voltage, temperature, humidity, dry contact inputs, digital input, automation relay status measurement. Allows customization of the name of each sensor, making it easier to identify connected devices.
Commands Allows remote On/Off relay command sending
Scheduling Allows configuring up to 10 scheduling for relay activation, which can be programmed with time and day of the week accuracy
Manually Restore Factory Settings The command is executed through a button located on the front panel. When pressed, it is possible to restore network settings
AC Input to Earth Isolation 1000 VAC
DC Input to Earth Isolation 1000 VAC
Relay Contacts to Earth Isolation 1000 VAC
Operating Temperature -10°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Device Power On Indicator (Green LED) Device Power On
Relay Activation Indicator (Green LED) Relay Activated
MTBF (Mean Time Between Failures) 120,000 hours
Installation Mode Rack or Panel Mounting
Dimensions (H x W x D)/ Weight 34 x 110 x 113 mm / 0.297 k
Details
Brand

ALGcom

Warranty

1 Year
