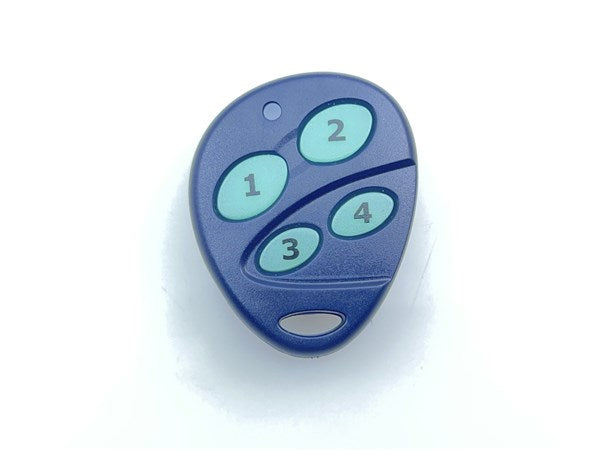

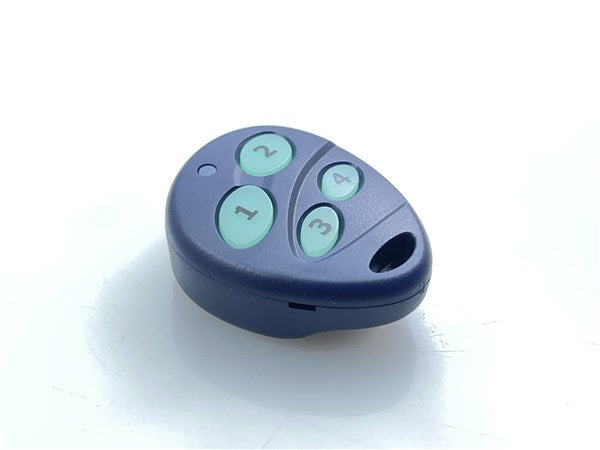

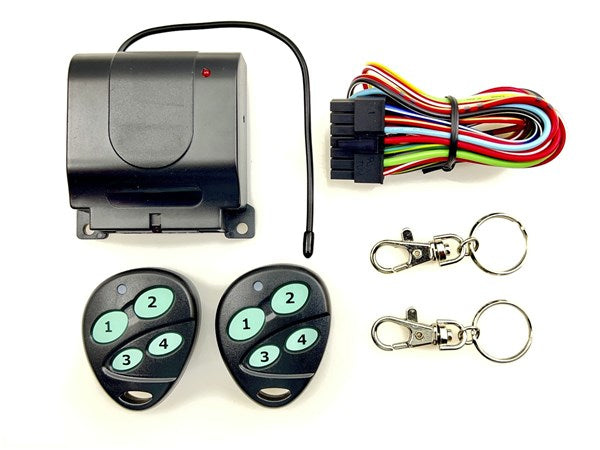

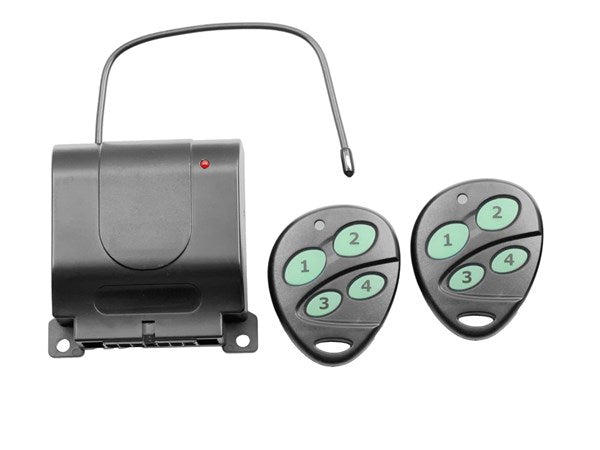

4-Channel W/less Remote Control Relay with 2 Key Fob - Model Number TR8859

Description

LR8859 1 Year Warranty Remote Control Included "Control up to 4 different devices with a single controller and key fob remote. The receiver unit has 4 channels, each of which can be independently configured to momentary or latching mode via DIP switch. Countless access control applications - doors, alarms, entry points, arming or disarming security systems all in one unit.Features• Power input: 10 - 15VDC• Transmission frequency: 433.92MHz• Transmitter features: SAW locked, rolling-code, water-resistant.• Transmission range: 300m (up to 300m with unobstructed line-of-sight)• Learning capacity: 250 remotes per module.• Outputs: 4 x NO/NC relay contacts individually selectable as momentary or latched.• Relay contacts: 5A max at 14VDCIncludes two keychain remotes with pre-installed battery (27A 12V Alkaline - SB2422)Spare remote - sold separately Cat. LR8882Spare hardwired remote - sold separately Cat. LR8880Setup help here WARNING: KEEP OUT OF REACH OF CHILDREN. Button Cell Batteries are Hazardous (new or used). Keep batteries away from children. These Batteries can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought if it is suspected a battery has been consumed or inserted; Call the 24-hour Poisons Information Centre in Australia on 131126 or New Zealand on 0800 764 766 or contact your country's emergency department.

Specifications

Digitech
