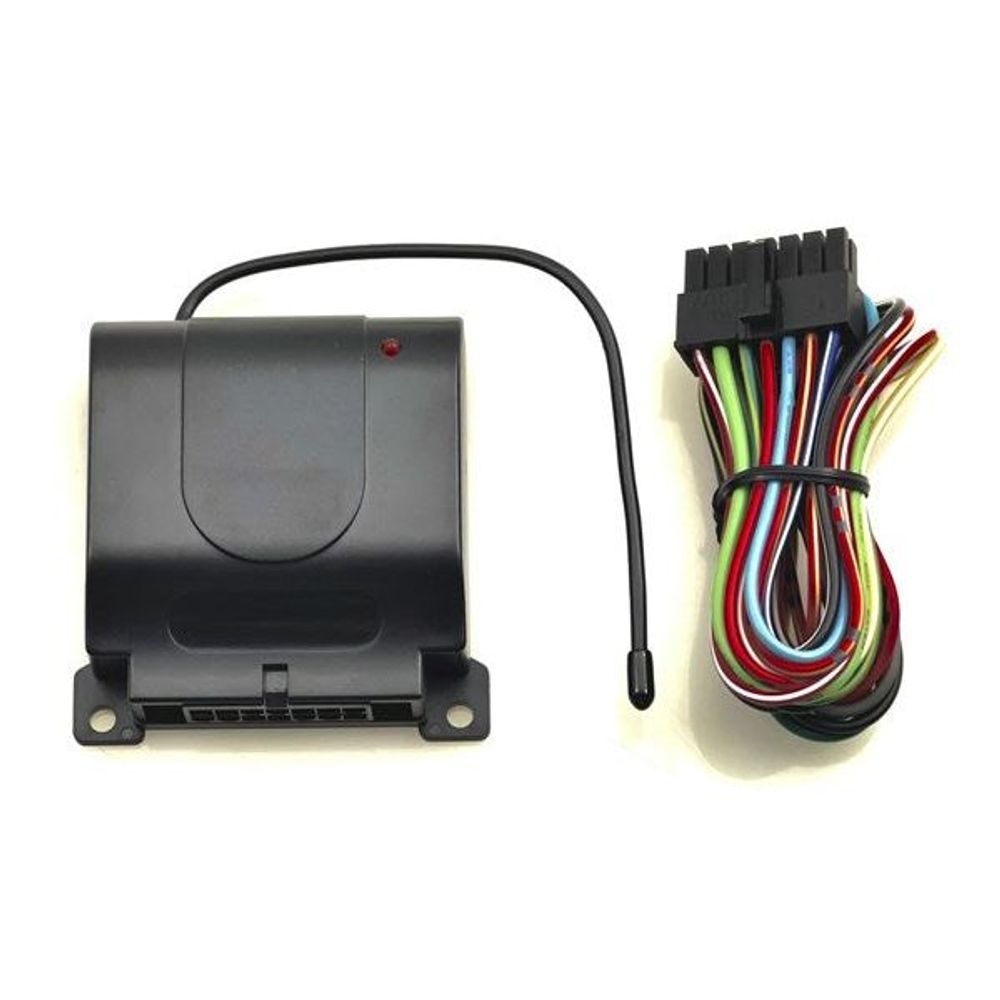

LR8880 1 Year Warranty Remote Control Included "4-Channel Hardwired wireless transmitter to suit LR8859.Use external switches on LR8880 to let you wirelessly control the relay outputs on a paired LR8859 (sold separately).Transmission range to LR8859: 100m (up to 400m with unobstructed line-of-sight)LR8859 setup: Connect your LR8859 to 12v DC power and devices you wish to control per the LR8859 manual Verify it works (relay should make a clicking sound when you trigger it with a remote)LR8880 setup: Connect the LR8880's wiring harness to external switches (NC/NO for each channel). Connect the LR8880 red/black harness wires to12v DC for powering the LR8880 unit. Plug in the wiring harness to power on the LR8880 unit Tap the pairing button on the LR8859 you want to control Tap the pairing button on the LR8880 and wait approx 10 seconds Close one of the switches wired to the LR8880 and it will wirelessly trigger the corresponding channel on a paired LR8859 unit.Setup help hereWARNING: KEEP OUT OF REACH OF CHILDREN. Button Cell Batteries are Hazardous (new or used). Keep batteries away from children. These Batteries can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought if it is suspected a battery has been consumed or inserted; Call the 24-hour Poisons Information Centre in Australia on 131126 or New Zealand on 0800 764 766 or contact your country's emergency department.

Specifications

Digitech
