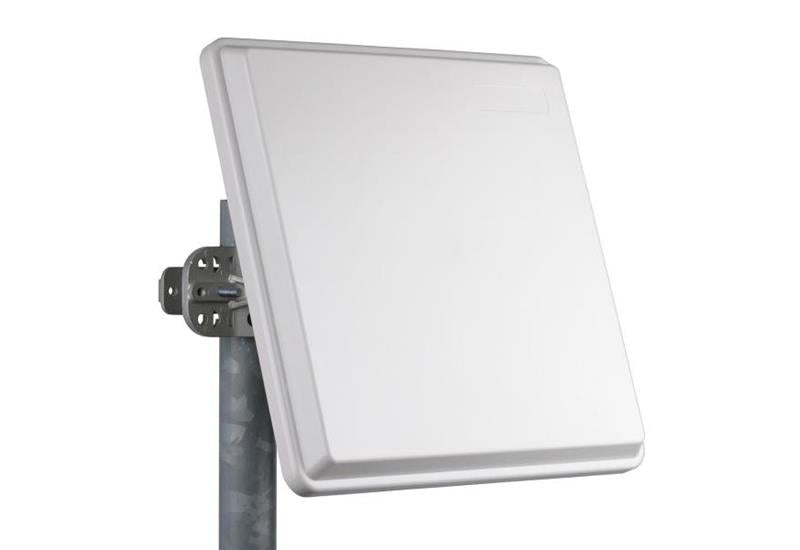

Name: 25dBi 4.9-5.875GHz MARS Dual Polarised Enclosure Antenna
Brand: Mars Antennas
SKU: ANT-105
Price: 339.25 NZD
Availability: InStock

25dBi 4.9-5.875GHz MARS Dual Polarised Enclosure Antenna

ANT-105

$339.25

Tax included.

15 items available

Select quantity

Description

MARS 5GHz MA-WA56-DP25SMELZ Dual Polarised Enclosure Antenna

This MARs MA-WA56-DP25SMELZ enables WISPs and Integrators to design a low cost, weatherized backhaul or subscriber unit, saving high costs of special antenna-radio integration. Great for MikroTik and Ubiquiti high speed 802.11n wirelsss point to point solutions. They can also fit the Ubiquiti Rocket M5 inside the back for a robust 802.11n point to point solution.

Features

Waterproof 5 GHz Dual Polarized Antenna for L11UG-5HaxD
Weatherproof Enclosure (26 x 26 cm) with provisions for Az/El Mounting device
Azimuth/Elevation
Adjustable Mount MNT-22
Efficient and stable performance
Highest range of ETSI Standards - TS3, TS4, TS5
UV protected radome allowing for harsh weather installations
Easy mounting allowing for Az/El adjustment
Carrier class construction
Expected 10 year working life span
Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)

Details
Manufacturer's Product Code	MA-WA56-DP25SMELZ
Frequency Range	4.9-5.875 GHz
Gain	25dBi
Polarisation	Vertical and Horizontal
Vertical Beamwidth	7deg
Horizontal Beamwidth	7deg
Connector Type	2x SMA Female
Dimensions	370 x 370 x 40 mm
Pole Mount Diameter	25-120mm

Details
Pole Mount	Yes, MNT-22 Included
Warranty	Standard 12 Month RTB

Warranty

1 Year

Brand

Mars Antennas

Restock ETA (if applicable)
