Name: 2.5GHzCPEkit-20dBi - Cambium 2.5GHz MSP CPE 20dBi Complete Kit
Brand: Tech Supply Shed
SKU: 2.5GHzCPEkit-20dBi
Price: 224.25 NZD
Availability: InStock

2.5GHzCPEkit-20dBi - Cambium 2.5GHz MSP CPE 20dBi Complete Kit

2.5GHzCPEkit-20dBi

$224.25

Tax included.

In stock, ready to be shipped

Select quantity

Description

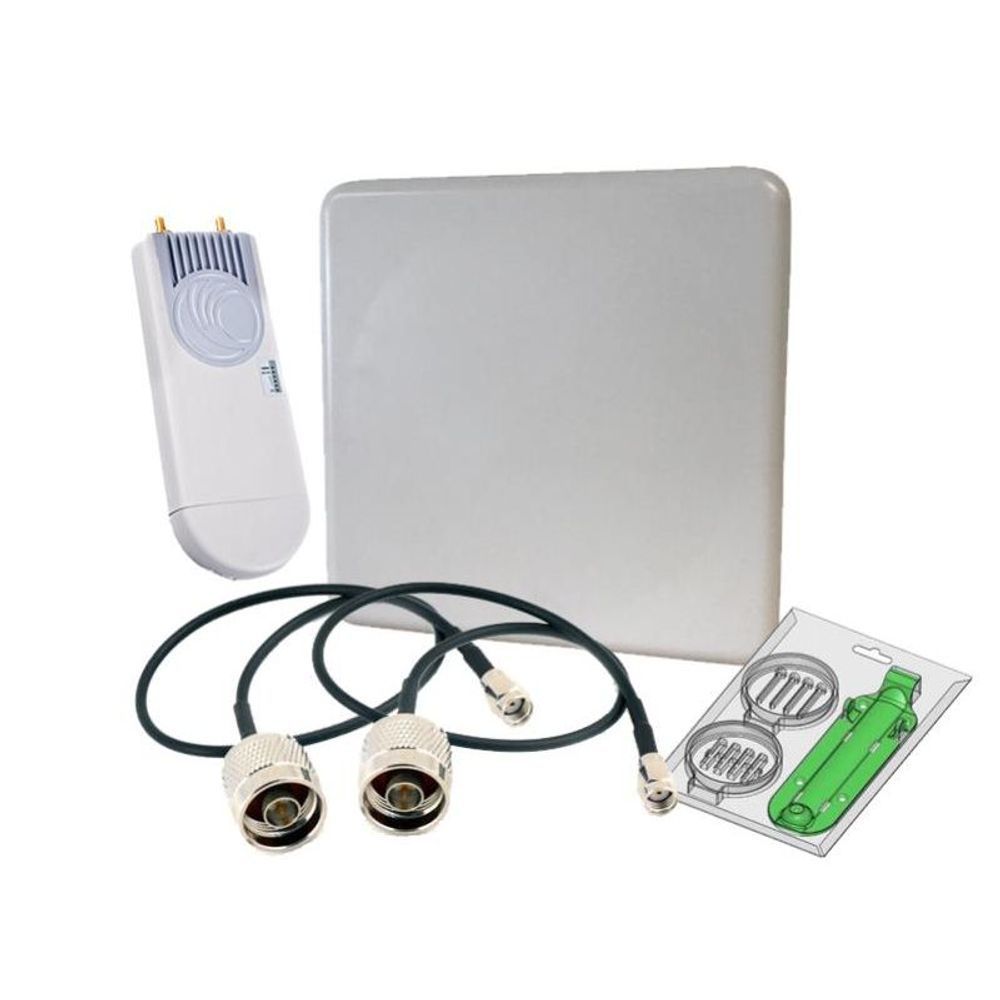

The Cambium 2.5GHz MSP 20dBi CPE kit includes everything you need to deploy a 2.5GHz Client on your 2.5GHz Managed Spectrum Park (MSP) network.

Features

Suitable for Managed Spectrum Park (MSP)
Covers 2580 - 2620 MHz frequencies

Details
Manufacturer's Code	C025900A621A
Output Power	-17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)
Channel Width	5 / 10 / 20 / 40 MHz
Frequency Range	2570 – 2620 MHz
Protocols Used	IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Interfaces	100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)
Temperature Range	-30°C to +60°C (-22°F to +140°F)
PoE In	10 - 30V
Antenna gain dBi	20dBi
Max Power consumption	7 W Maximum, 5 W Typical
Polarisation	2x2 MIMO/OFDM
Wind Loading	145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Dimensions	29.1 x 14.5 x 8.3 cm
IP Rating	IP55

Details
Power Supply	3 Pin Clover Lead
Power Injector	Included
Item 1	(1) C025900A621A
Item 2	(1) ANT-240
Item 3	(2) P-69
Item 4	(1) N000900L006A

Specifications

Details
Manufacturer's Code	C025900A621A
Output Power	-17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)
Channel Width	5 / 10 / 20 / 40 MHz
Frequency Range	2570 – 2620 MHz
Protocols Used	IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Interfaces	100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)
Temperature Range	-30°C to +60°C (-22°F to +140°F)
PoE In	10 - 30V
Antenna gain dBi	20dBi
Max Power consumption	7 W Maximum, 5 W Typical
Polarisation	2x2 MIMO/OFDM
Wind Loading	145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Dimensions	29.1 x 14.5 x 8.3 cm
IP Rating	IP55
