Where to Install Weather Station Sensors for More Useful Readings
A home weather station gives more useful readings when each sensor measures the conditions you intend to understand. A temperature sensor beside sun-heated cladding or a rain collector under a tree can produce numbers that are real for that location but misleading for the wider garden. Start with placement and exposure before deciding that a difference from a regional forecast means the station is inaccurate.
| Measurement | Placement issue to check |
|---|---|
| Temperature | Sun, surfaces, shielding and ventilation |
| Rain | Level collector, interception, runoff and splash |
| Wind | Shelter, turbulence and secure accessible mounting |
| Pressure or UV | Actual sensor provision and model-specific settings |
Decide what you want the station to tell you
A gardener may care about conditions near a growing area. A weather enthusiast may want the most representative open-site measurements the property can reasonably provide. Those are related aims, but they can lead to different positions. Write down the purpose before installing the sensor, so you understand what the resulting data does and does not represent.
Check which variables are actually measured. A display may show derived values or information from an online service as well as local sensors. Do not assume every station directly measures rain, wind, ultraviolet radiation and pressure because those terms appear in a broad category description. Read the exact model's sensor list and supported accessories.
Temperature needs protection from local heat
Direct sun, hot paving, walls and exhaust outlets can distort a reading intended to represent ambient air. Follow the manufacturer's guidance on shielding, ventilation and distance from nearby surfaces. A sensor installed indoors beside a window is not an outdoor temperature measurement simply because the display labels one channel outdoor.
Professional climate instruments use carefully considered exposure and shielding, as NIWA's instrument information illustrates. A home installation does not become a reference station by copying one detail, but the principle is useful: understand what heats or cools the sensor besides the surrounding air. Record any compromise so later readings can be interpreted sensibly.

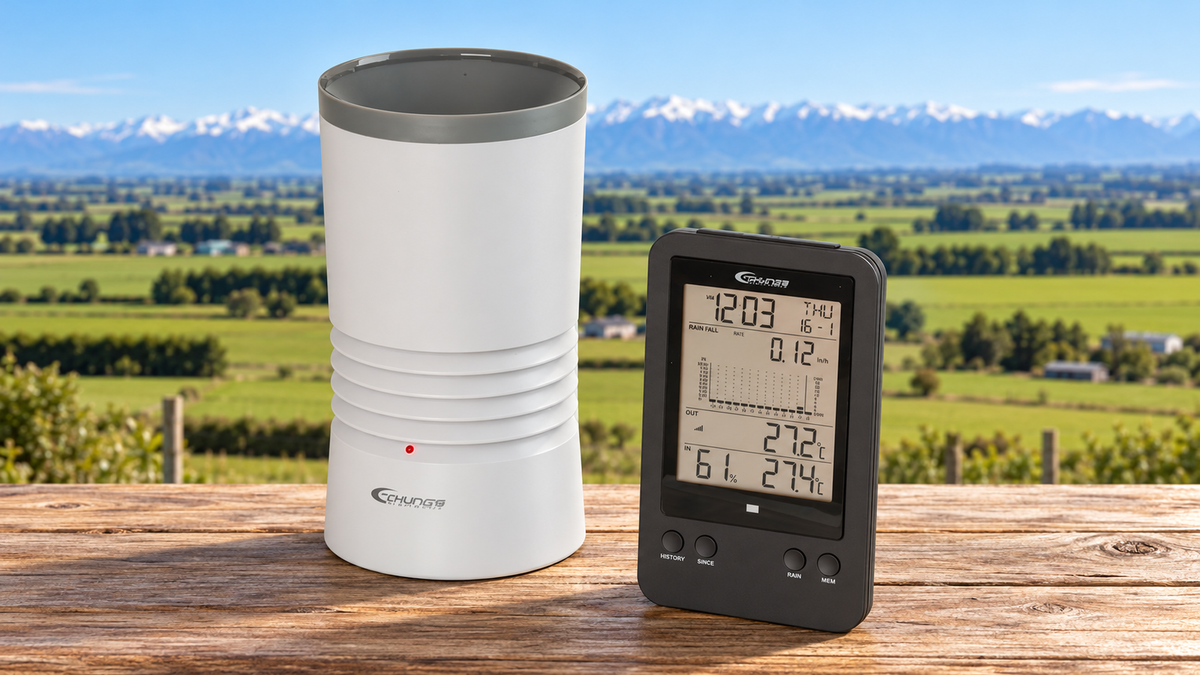

Digital Rain Gauge with Temperature (XC0430)
This rain-gauge option is relevant when rainfall is the main measurement you want. Check included components and siting instructions, then plan a level, accessible location. It should not be assumed to measure every variable offered by a complete weather station.
Rain collectors need a clear, level location
Check the manual for mounting and levelling requirements. Trees, eaves and nearby structures can intercept rainfall or funnel extra water into the collector. Splash from adjacent surfaces can create another source of distortion. A convenient fence position may work mechanically while giving an unrepresentative total for the garden.
Plan access for cleaning and inspection. Leaves, insects and debris can affect a collector, and a difficult-to-reach installation may be neglected. Inspect it according to the manufacturer's maintenance instructions, particularly after storms or seasonal leaf fall. Do not pour a guessed amount of water through the mechanism and declare it calibrated unless the manufacturer provides an appropriate test procedure.
Wind readings depend strongly on exposure
Buildings, trees and fences create shelter and turbulence. A sensor close to them may describe a very local airflow rather than the broader wind conditions reported by a distant weather station. Follow the model's mounting instructions and recognise the limitations of a small suburban property. There is no single convenient pole position that removes every obstacle.
Do not climb onto roofs or improvise tall mounts to chase a professional-style exposure. Consider access, secure fixing, nearby services and installation safety. If a suitable installation needs specialist work, arrange it appropriately. Useful home data with documented limitations is preferable to an unsafe installation made for an appearance of precision.
Wireless Digital Weather Station WiFi Colourful LCD (XC0440)
Check the XC0440's exact sensor list and communications requirements before planning the installation. Test the outdoor link at the intended site and identify any combined-sensor placement compromises. Do not assume every value on the display is a direct measurement.
Pressure, UV and display settings need checking too
Where pressure is included, understand whether the display uses a station reading or an adjusted value and whether altitude or reference settings are required. Compare like with like before changing calibration. A nearby official report may use a different convention or location, so a numerical difference is not automatically evidence of a faulty sensor.
Where UV is genuinely measured, check the sensor's exposure and cleaning instructions. Do not assume a station without a UV sensor gains that measurement through its other components. Similarly, a replacement wireless temperature sensor is not automatically compatible with every display from the same retailer. Match the exact supported model or part number before ordering an accessory.
Verify the wireless link before permanent mounting
Pair and test the system at the proposed location before fixing it permanently. Walls, metal structures and distance can affect communication. Check battery requirements and how easily the sensor can be serviced. A place with excellent exposure but an unreliable link may require a different supported arrangement rather than repeated resets.
The XC0430 rain gauge, XC0440 weather station and XC0366 listing illustrate different products, not a claim that all three form one compatible system. Check each listing's included sensors and supported replacements. In particular, a complete station pictured on a product page should not be assumed to represent a standalone replacement sensor without checking the contents.
Wireless Weather Station Outdoor Sensor (XC0366)
The XC0366 product image shows a display alongside a separate outdoor sensor. Plan the outdoor sensor position independently of the display: the display needs a convenient viewing position, while the sensor needs suitable exposure and a reliable radio link. This is a different physical arrangement from the combined wind-and-rain array pictured above, and does not establish interchangeability between their components.
For the difference between local measurements and regional forecasts, read what a home weather station can tell you that a weather app cannot. This helps you decide which readings matter before choosing a permanent sensor position.
Sources and further reading
Compare the relevant range before choosing:
Weather Stations at Tech Supply Shed.
Frequently asked questions
Why is my station warmer than the forecast?
Local exposure, timing and location can differ. Check sunlight, nearby surfaces and the intended comparison before changing calibration or assuming a fault.
Can I mount a rain gauge under an eave?
That can interfere with collecting representative rainfall. Follow the manufacturer's siting instructions and avoid interception, runoff and splash influences.
Does every weather station measure UV?
No. Confirm the actual sensor list. A displayed or derived value is not automatically a direct local measurement.
Can I mix replacement sensors between models?
Only where compatibility is explicitly confirmed. Wireless frequency or similar appearance alone does not prove a sensor will pair and report correctly.
