TV Wall Mount Buying Guide NZ: Fixed, Tilt or Full Motion?

Choosing a TV wall mount is not just about finding a bracket that matches your screen size. The right mount affects viewing comfort, how close the television sits to the wall, how easily you can reach cables and ports, and whether the screen can be repositioned for different seats or lighting conditions. For most New Zealand homes, the choice comes down to three main styles: fixed, tilt and full motion.

This guide explains how each type works, where each one makes sense, and what to check before buying. If you are comparing options now, you can also browse Tech Supply Shed's TV monitor brackets, stands and trolleys range for compatible mounting solutions.

Fixed vs tilt vs full-motion TV mounts at a glance

The three main wall-mount styles solve different problems. A fixed mount prioritises a slim, simple installation. A tilt mount adds vertical angle adjustment, which can help when the TV is mounted higher than ideal eye level. A full-motion mount adds extension and side-to-side movement, making it the most flexible option for rooms with several viewing positions.

The best option is therefore not automatically the most adjustable one. If your sofa is directly opposite the television and the screen can be mounted at a comfortable height, a fixed bracket may be all you need. If the screen sits above a fireplace-height cabinet or higher wall position, tilt can be useful. If you regularly watch from different parts of the room, full motion becomes much more valuable.

When a fixed TV wall mount is the right choice

A fixed wall mount holds the television in one position, close to the wall. It is usually the simplest option and works well in lounges, bedrooms and media rooms where the seating position is stable and the TV does not need to move.

One example from the TSS range is the One For All Fixed TV Wall Mount 13-40 inch. The model is designed for smaller televisions and uses a low-profile wall-to-TV distance, making it suitable where a neat, close-to-wall finish is the priority.

Fixed mounts are particularly appealing when you want the screen to look integrated with the wall. Because there is no articulating arm, there is also less depth between the television and the wall than with many full-motion brackets. That can be useful in narrow rooms or high-traffic areas where you do not want the TV projecting unnecessarily into the room.

The main limitation is obvious: once installed, the viewing angle is essentially set. That means you should be confident about the final screen height and position before installation. A fixed mount can also make rear-facing ports more awkward to reach, so it is worth connecting HDMI, antenna, power and network cables before the television is fully secured if access will be tight.

For more options in this style, browse the fixed TV wall mounts collection.

When a tilt TV wall mount makes more sense

A tilt wall mount keeps the basic simplicity of a fixed bracket but allows the screen to angle vertically. This is useful when the television must be installed above ideal seated eye level, or where glare from windows and room lighting can sometimes affect the picture.

The BRATECK Tilt TV Wall Mount 32-55 inch 50kg VESA 400x400 is a practical example. It is designed for 32 to 55 inch displays, supports up to 50kg, and supports VESA patterns up to 400x400 according to the current TSS product listing.

Tilt is often the most balanced choice when the TV is going on a bedroom wall, above a taller cabinet, or in a lounge where the screen needs to sit slightly higher than normal. A small downward angle can make the screen easier to view from a seated position without requiring the additional extension and swivel of a full-motion bracket.

It is still important to plan cable access. Some tilt brackets sit relatively close to the wall, so large HDMI plugs, right-angle connectors or power leads may need extra clearance. Check where your TV's ports are located before choosing the bracket and final mounting height.

If vertical adjustment is your main requirement, see the tilt TV wall mounts collection.

When to choose a full-motion TV wall mount

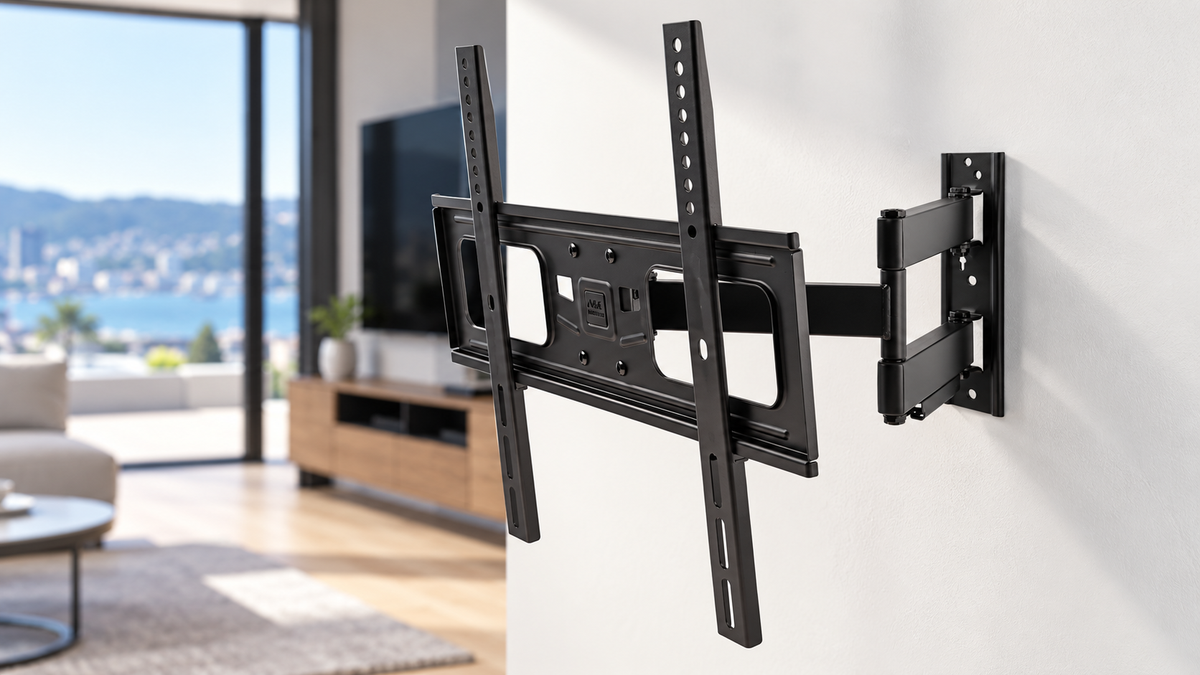

Full-motion, articulating or cantilever mounts provide the greatest flexibility. Depending on the model, the television can extend away from the wall, swivel left and right and tilt vertically. That makes this style particularly useful in open-plan living areas, rooms with several seating zones, corner installations, and spaces where you may want to pull the television forward for easier cable access.

The BRATECK Full Motion TV Mount 23-55 inch Tilt Swivel VESA 400x400 supports televisions from 23 to 55 inches, has a maximum load rating of 35kg and supports VESA patterns up to 400x400 according to the current TSS listing.

For larger televisions, a heavier dual-arm design can provide more capacity and reach. The Bracom Economy Full Motion TV Wall Mount 37-70 inch, for example, is listed for screens up to 70 inches and 50kg, with extension, swivel and integrated cable management.

Full-motion mounts can be especially useful when a TV needs to serve more than one part of a room. You might face the screen towards the sofa for films, then swivel it towards a dining area or kitchen at other times. They can also make ports and connections easier to access because the television can be pulled away from the wall.

The trade-off is that the mount itself is more complex and usually places greater leverage on the wall when extended. Correct wall fixing therefore matters. The bracket's rated capacity, the television's weight, the wall construction and the fixing method all need to be appropriate. If you are unsure about the wall structure or suitable fixings, use a qualified installer.

See the wider full-motion TV wall mounts range for more sizes and load ratings.

Check VESA size before buying any TV wall mount

Screen size alone does not confirm that a wall mount will fit your television. You also need to check the VESA mounting pattern on the back of the TV. VESA measurements describe the horizontal and vertical spacing between the threaded mounting holes, usually expressed in millimetres, such as 200x200, 400x400 or 600x400.

For example, a television may be within a bracket's advertised screen-size range but still use a VESA pattern outside that bracket's supported range. The reverse can also happen: a mount may technically support the VESA pattern but not the television's weight. Both specifications need to match.

Before ordering, check your television manual or manufacturer specifications for:

• VESA mounting pattern
• TV weight without the original tabletop stand
• Screen size
• Location of power, HDMI, antenna, USB and network ports
• Any unusual rear shape, protrusion or recessed mounting area

Then compare those details with the bracket's supported VESA range, maximum load and stated screen-size range. Do not rely on screen size alone.

Think about wall type, stud position and installation

A wall mount is only as secure as the surface and fixing method supporting it. Timber framing, masonry, concrete and other wall types require different fixing approaches. Plasterboard itself should not be assumed to provide enough support for a television simply because a bracket can be screwed through it.

For timber-framed walls, the bracket often needs to be positioned so appropriate mounting points align with structural framing. For masonry or concrete, suitable anchors and installation methods are required. Large full-motion brackets deserve particular attention because pulling the television away from the wall increases leverage compared with a low-profile fixed installation.

You should also consider cable routing before drilling. Power outlets, HDMI leads, antenna connections, soundbar cables and network cables may all need to reach the television without being pinched or pulled when the mount moves. With full-motion brackets, leave enough cable slack for the complete range of travel.

If the TV is large, heavy, mounted high, or being fixed to a wall construction you are not confident about, professional installation is a sensible option.

Which TV wall mount should you choose?

For a straightforward lounge or bedroom setup with the television directly in front of the main seating position, a fixed mount is often the cleanest choice. It keeps the TV close to the wall and avoids paying for movement you may never use.

Choose a tilt mount when the screen needs to sit higher than your natural viewing position, or when modest vertical adjustment would help with viewing comfort or reflections.

Choose full motion when flexibility matters most. It is the strongest option for open-plan rooms, several viewing positions, corner placement, frequent cable access or situations where the screen needs to swivel away from the wall.

Whichever style you choose, compatibility should come before features. Confirm the VESA pattern, television weight, screen-size range, wall type and cable clearance first. Once those requirements are satisfied, the decision between fixed, tilt and full motion becomes much easier.

TV wall mount buying checklist

• Confirm your TV's exact screen size.
• Check the VESA mounting pattern.
• Check the television weight and the mount's maximum load rating.
• Decide whether you need no movement, tilt only, or full articulation.
• Check the distance the mount places the TV from the wall.
• Plan HDMI, power, antenna and network cable access.
• Confirm the wall construction and suitable fixing method.
• Check whether stud position affects the preferred screen location.
• Allow enough cable slack for a full-motion mount.
• Use a professional installer if the wall structure or fixing method is uncertain.

Frequently asked questions about TV wall mounts

Is a fixed or tilt TV wall mount better?

A fixed mount is usually better when the TV is at a comfortable viewing height and will always face the same seating area. A tilt mount is more useful when the television is mounted higher and needs to angle down towards viewers.

Is a full-motion TV mount worth it?

It can be if you need to swivel the TV towards different seats, pull the screen away from the wall, mount it near a corner or gain easier access to rear connections. If the television will never move, a fixed or tilt bracket may be simpler.

How do I know whether a TV wall mount will fit my TV?

Check the TV's VESA mounting pattern, weight and screen size against the bracket specifications. All three should fall within the mount's stated compatibility limits.

Can I mount a large TV on plasterboard?

The visible plasterboard surface does not by itself tell you whether the installation is suitable. The mount needs an appropriate structural fixing method for the wall construction and television load. If you cannot identify suitable structural support or fixing requirements, use a qualified installer.

Does a full-motion mount need more cable length?

Usually yes. The cables must be able to move with the television through its intended extension and swivel range without becoming tight, pinched or disconnected.
