Thunderbolt 4 vs USB4: What Is the Difference?

Thunderbolt 4 and USB4 use the same reversible USB-C connector, but that does not mean they offer identical performance. For New Zealand shoppers choosing a laptop, external SSD, docking station or monitor, the distinction matters most when you need several demanding devices connected at once. Thunderbolt 4 sets a certified minimum feature level, whereas USB4 covers a broader range of implementations. This guide explains the differences and how to check the specifications that matter before buying.

Thunderbolt 4 vs USB4 at a glance

Neither name alone tells you whether a particular laptop will charge at 100W or operate your preferred pair of external monitors. Always check the complete host, accessory and cable specifications.

What does Thunderbolt 4 guarantee?

Intel's Thunderbolt 4 certification establishes a consistent baseline. Certified computers support a 40Gbps connection, two 4K displays or one 8K display, and 32Gbps of PCIe data bandwidth. Thunderbolt 4 also includes specific docking, wake-from-sleep and security requirements. These are particularly useful when you move between desks or regularly connect several peripherals. See Intel's Thunderbolt guidance for the manufacturer's explanation of certification.

Certification does not remove every compatibility question. The laptop's graphics processor and operating system can still restrict the number of external displays. A docking station must also support your intended monitor resolutions and refresh rates. If you have a Mac, check the exact model's external-display limits rather than assuming that every Thunderbolt 4 Mac supports two additional monitors.

For an example of a full-featured docking accessory, view the Microsoft Surface Thunderbolt 4 Dock. Its Thunderbolt branding should not be confused with a guarantee that every connected computer can use every available feature.

What does USB4 mean?

USB4 is a flexible high-performance USB architecture that can carry data and display traffic through USB-C. Depending on the implementation, devices may support 20Gbps, 40Gbps or the newer 80Gbps USB4 specification. A USB4 label therefore tells you less about a device's complete feature set than Thunderbolt 4 certification does. USB4 can be an excellent choice, but you need to read the manufacturer specifications for PCIe tunnelling, video output, Thunderbolt compatibility and charging.

For example, a laptop advertised with USB4 40Gbps may work well with a USB4 docking station, yet its display configuration may differ from a Thunderbolt 4 laptop. Similarly, a USB4 accessory with 20Gbps data capability should not be mistaken for a 40Gbps model. The USB Implementers Forum publishes the underlying specifications at USB-IF's document library.

Is Thunderbolt 4 faster than USB4?

Not always. Thunderbolt 4 runs at 40Gbps, while a 40Gbps USB4 connection has the same nominal link speed. Newer USB4 80Gbps equipment can exceed that headline rate, provided the computer, accessory and cable all support it. A 20Gbps USB4 port, on the other hand, offers less nominal bandwidth than Thunderbolt 4.

These figures are signalling or connection rates, not promised file-copy speeds. Real transfers are lower because of protocol overhead and the performance limits of the SSD, enclosure, host controller and computer. If you are copying large video projects, look for independent performance tests of the exact storage device and check its supported interface. Buying a 40Gbps cable cannot turn a 10Gbps SSD into a 40Gbps drive.

Display traffic can also share available bandwidth. A dock that works well with a single monitor may have less bandwidth available for external storage when you add high-resolution displays. For most office work, these differences are less important than a stable dock with the correct ports and enough charging power.

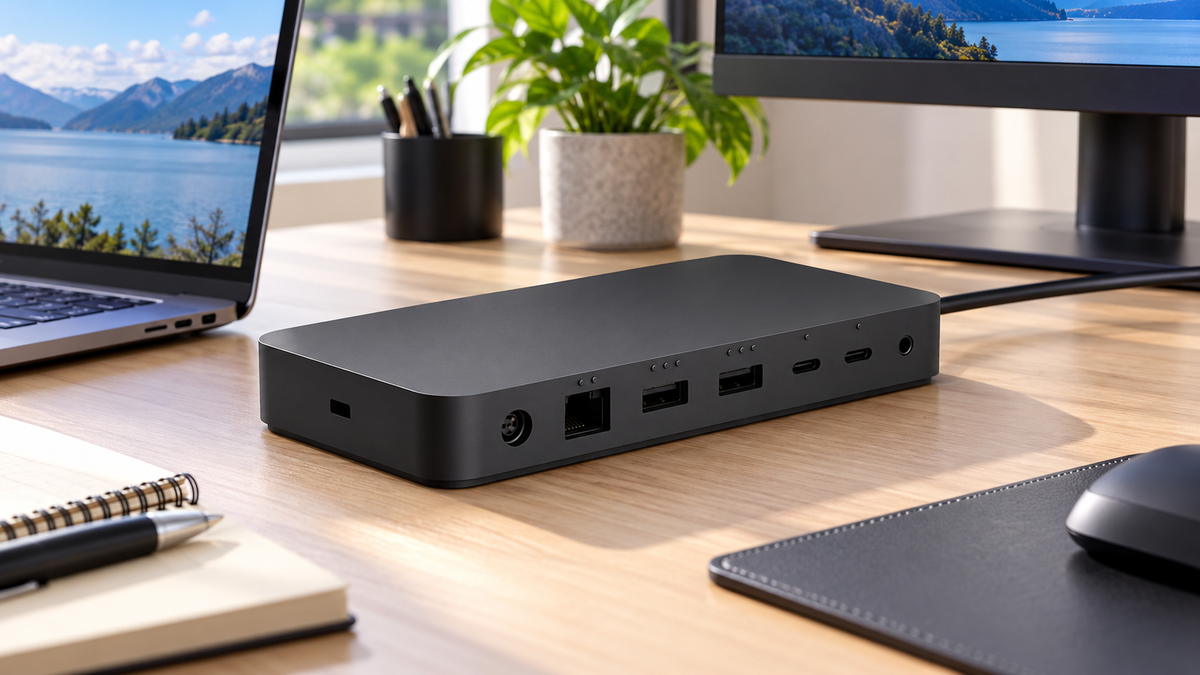

Monitors and docking stations: what should you check?

Thunderbolt 4 is often straightforward to specify for a workstation because its certification includes dual-4K display capability on compatible computers. USB4 may provide the same practical result, but it is necessary to check the laptop's video-output specifications and the dock's supported combinations of resolution and refresh rate. Neither connection standard overrides operating-system or graphics-hardware limits.

Before buying, list the number of displays, their resolutions, the refresh rate you want and any other peripherals you plan to connect. A pair of 4K office monitors at 60Hz has different requirements from a high-refresh-rate gaming monitor. If you need Ethernet, an SD card reader or several USB-A ports, check those features on the dock rather than choosing by bandwidth alone.

Explore the TSS monitor range and compare the actual display inputs against the outputs available on your dock. A monitor with USB-C input may have its own power-delivery and video limitations, so check both ends of the connection.

USB-C cables: charging wattage is not data speed

The cable is a common source of confusion. A USB-C cable can be designed primarily for charging, basic USB data or high-bandwidth USB4 and Thunderbolt use. A 240W charging label does not automatically mean 40Gbps data transfer, while a 40Gbps label does not automatically promise 240W charging. Cable length and certification also matter.

For a travel setup, a shorter certified cable may be convenient. At a permanent desk, measure the distance between your laptop and dock before ordering. If your laptop needs more power than a dock can supply, you may still need the original power adaptor. Browse relevant docking stations and hubs, but verify the exact product specification before purchase.

Which should you buy for your NZ setup?

For a basic laptop setup with a single external display, keyboard, mouse and occasional file transfers, a USB4 computer with the correct video and charging support may meet every requirement. For a demanding workstation with two 4K displays, fast external storage and a single docking connection, Thunderbolt 4's defined minimum capabilities make comparing compatible equipment easier. A fully specified 40Gbps USB4 system may achieve the same result.

If you already own a Thunderbolt dock, do not assume that every USB4 laptop supports it fully. Confirm compatibility with the dock manufacturer and check the host's Thunderbolt 3 compatibility or other required modes. If you are considering an 80Gbps USB4 accessory, remember that it will only reach its highest speed when the host and cable support that mode too.

Rather than paying extra for a logo, choose the combination of laptop, dock, displays and cable that demonstrably supports your intended workload. Browse laptops and monitors at Tech Supply Shed, then check the manufacturer's model-specific connectivity specifications before placing your order.

Frequently asked questions

Is USB4 the same as Thunderbolt 4?

No. They share underlying technology and the USB-C connector, but Thunderbolt 4 certification guarantees additional minimum capabilities. USB4 features vary by device.

Can a Thunderbolt 4 dock work with a USB4 laptop?

It may, but compatibility and available features depend on the USB4 laptop's implementation and the dock. Check the manufacturer's compatibility list, especially for external displays.

Does USB4 support two 4K monitors?

Some USB4 computers and docks do. The USB4 name alone does not guarantee it. Check the host graphics specifications and the dock's supported display configurations.

Can USB4 be faster than Thunderbolt 4?

Yes. Newer USB4 80Gbps implementations offer a higher nominal connection rate than Thunderbolt 4's 40Gbps, but all connected components must support 80Gbps.

Will any USB-C cable work at 40Gbps?

No. Choose a cable explicitly rated for the required data speed, and independently check its charging wattage and supported length.
