Outdoor Speakers Explained: IP Ratings, Power and Placement

Choose outdoor speakers for the actual exposure and installation, not simply because the product is described as powerful or weather-resistant. Check whether the speakers need an amplifier, what protection the manufacturer specifies and how sound will reach the listening area. A patio under deep eaves is a different environment from an exposed coastal fence. Installation details can determine both reliability and the quality of everyday listening.

Understand what an IP rating does and does not say

An IP rating describes specified protection against ingress under defined test conditions. Its digits need to be read correctly, and an X indicates that a particular rating is not stated. It is not a universal guarantee against every outdoor hazard. Salt exposure, ultraviolet light, temperature, corrosion and pressure washing require their own consideration.

If a product has no published IP rating, do not invent one from the word outdoor. Read the installation and care instructions for permitted locations. A covered location may still receive wind-driven rain. Likewise, a rating for a speaker cabinet does not automatically apply to an exposed amplifier, plug, cable join or other part of the installed system.

Common IP ratings compared

The first numeral describes protection against solids; the second describes protection against water. These examples explain the codes, rather than assign ratings to the speakers pictured here.

Immersion and jet tests address different conditions: IP67 alone does not establish an IP66 jet rating. Check any stated immersion depth and duration and the manufacturer's installation limits. None of these codes establishes resistance to salt corrosion or ultraviolet ageing.

Separate passive speakers from self-powered products

Passive speakers need a suitable amplifier. Powered speakers contain amplification but still need an appropriate power source and compatible audio connection. A Bluetooth feature, where present, describes one connection method and does not establish weather protection or the complete installation requirements. Confirm the exact product type before planning a system around it.

For passive models, check impedance, amplifier suitability and the manufacturer's wiring guidance. Do not connect extra speakers casually to create more coverage without checking the resulting load. A dual-channel stereo speaker can also differ from an ordinary single-channel speaker. The Russound 5B65S should be evaluated using its own connection instructions rather than a diagram for a superficially similar model.

CS2476 5-Inch Indoor/Outdoor Speakers

The CS2476 is listed as a pair of compact 5-inch, two-way speakers, with polypropylene woofers and dome tweeters. This makes it a conventional two-cabinet option to compare for a patio. Each cabinet is listed at 245 × 185 × 168 mm, useful when checking space beneath eaves. Confirm the permitted exposure and amplifier requirements before installation; the listing does not establish an IP rating.

Read power specifications in context

A speaker's power-handling figure and an amplifier's output specification are different things. Their measurement conditions matter, and neither is a direct statement of how loud the system will sound at every distance. Sensitivity, placement, listening area and the intended volume also influence the result. Avoid matching equipment solely by choosing identical-looking wattage numbers.

Think about normal listening rather than maximum output. A small deck used for conversation needs different coverage from a large open garden. Clear, comfortable sound near the seating area can be more useful than trying to project one pair loudly across the whole property. If the arrangement is complex, ask for system advice with the exact speakers and amplifier listed.

Continuous power, peak power and amplifier matching

A continuous or RMS power specification is more useful for sustained operation than an unexplained peak figure. Peak ratings describe brief conditions and are not directly interchangeable with continuous ratings. For an amplifier, compare output per channel at the same impedance, with the stated distortion and channels-driven conditions. A speaker's recommended amplifier range is also different from its power-handling limit.

Worked example: imagine two conventional 8-ohm speakers whose manufacturer recommends 20–80 watts per channel. A stereo amplifier specified for 50 watts per channel into 8 ohms falls within that example range, with one speaker on each channel. This is an illustration, not a compatibility claim for the featured products. Do not assume the amplifier's total advertised wattage is its output to each speaker.

Adding a second 8-ohm speaker in parallel to each channel creates a nominal 4-ohm load on that channel. The amplifier must explicitly support that load in the intended operating mode. An A/B speaker switch does not automatically provide impedance protection. For a larger system, use a suitable multichannel amplifier or correctly designed speaker distribution arrangement. Compare amplifiers by their supported loads and channel specifications before ordering.

Listen for distortion and reduce the level if the sound becomes harsh. A small amplifier driven into clipping can damage speakers; a larger amplifier can also damage them if excessive power is applied. Matching specifications does not remove the need for sensible volume settings.

For a plain-English reference to impedance, sensitivity and power terminology, see our speaker terms and amplifier-compatibility glossary.

Place sound near the people who need it

Mark the main seating and activity areas, then consider practical mounting positions. Aim to cover listeners evenly without directing unnecessary sound toward neighbours. More localised coverage at moderate levels can be preferable to a distant speaker turned up to overcome the whole outdoor space. Check local expectations and be considerate about timing and volume.

Walls, corners and open boundaries affect sound differently. Test a proposed arrangement where possible before committing to permanent fixing. Follow mounting instructions, bracket orientation and load requirements. Do not treat a cabinet's weather resistance as permission to use unsuitable fixings. A secure installation must account for the surface, hardware and the way the speaker is supported.

Example: a sheltered 6 × 4 metre NZ deck

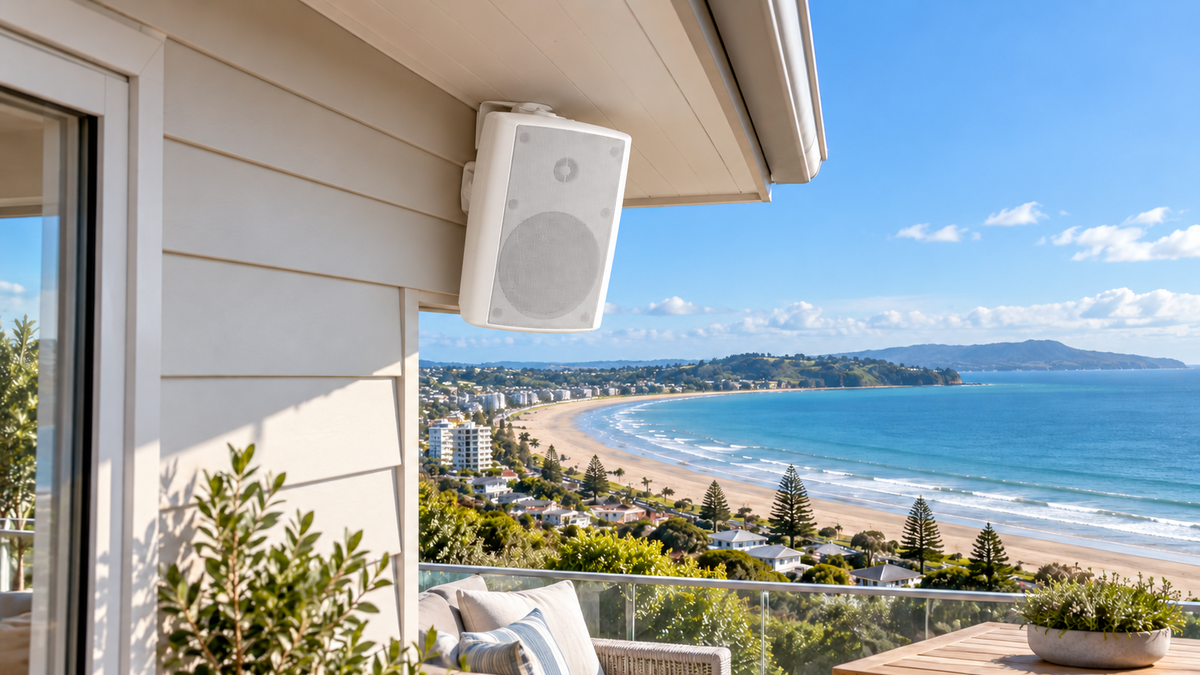

For a deck with the house along one long edge and seating near the centre, trial a conventional stereo pair at separated positions under the eaves, where the manufacturer permits. Angle both towards the seating rather than across the boundary. Start above seated head height, using the approved bracket orientation, then adjust the aim so nearby listeners are not directly beside one loudspeaker.

Test at normal conversation-friendly volume from each seat and at the property boundary before drilling. If one end is quiet, change the position or consider another properly amplified zone rather than turning the whole system up. This layout is a starting point, not a guaranteed coverage specification. On an exposed coastal property, assess wind-driven rain and salt as well as overhead shelter.

Russound 5B65S 6.5" Stereo Speaker Outdoor (5B65S)

The 5B65S is a single-point stereo design with a 6.5-inch woofer and two tweeters. Its two channel inputs allow left and right audio to reach one cabinet, which can be useful where a compact listening area has room for only one mounting position. The TSS listing specifies 8 ohms/8 ohms and aluminium bracket and grille construction. Keep the amplifier's channels separate and follow the model's terminal diagram; never join amplifier outputs together. One stereo cabinet does not provide the same spatial separation as two separated speakers.

Protect the whole installation

Plan cable routes, connections and any entry into the building. Use products suitable for the environment and installation method. Keep joins and terminations within the manufacturer's permitted arrangement rather than assuming a speaker rating protects every exposed connection. Prevent water following a cable into equipment and involve a suitable professional where the work requires it.

For mains-powered equipment, use appropriate electrical installation advice. Do not run a domestic power arrangement outdoors as a permanent shortcut. Consider service access too: you should be able to inspect brackets, clean as directed and disconnect equipment safely. A tidy cable route that hides an inaccessible, exposed joint is not a durable solution.

Cable and connection checklist

Measure the complete route from amplifier to each speaker, including bends and a modest service loop. Choose conductor size for the run length and speaker load using the equipment maker's guidance. Keep polarity consistent from amplifier to speaker. An outdoor or direct-burial cable must be rated for that specific route; ordinary indoor cable is not automatically suitable because it is hidden.

Browse audio and installation cable, then check the individual cable's conductor size, jacket and environmental rating. Where permitted, form a drip loop before a cable enters equipment, seal building penetrations appropriately and keep terminations accessible. Inspect fixings and corrosion periodically, especially near the coast, and clean only as directed by the manufacturer.

Compare products by the installation brief

The CS2476, Russound 5B65S and Earthquake AWS602 listings offer different outdoor-speaker options to investigate. Check exact contents, channel arrangement, mounting accessories and documented exposure limits. This guide does not assign an unverified IP rating to any of them. Use the current manufacturer information for the model you choose.

Finish with a complete checklist: listening area, speaker type, amplifier, cable route, mounting surface, exposure and maintenance. Budget for the whole system rather than only the cabinets. A well-planned modest setup can provide more useful outdoor sound than a larger purchase installed in the wrong place with unsuitable supporting equipment.

Earthquake Sound AWS602 6in Outdoor Speakers (AWS602)

The AWS602 listing specifies a nominal 8-ohm load, UV-protected PVC enclosure, aluminium mounting hardware and paintable black or white finishes. These are practical differences to compare when planning exposed surfaces and the appearance of the installation. Earthquake's AWS documentation lists a 65 Hz–20 kHz frequency range for the AWS602. Confirm the exact supplied version and package contents, because newer V2 models and older documentation should not be treated as interchangeable. No IP rating is assigned here.

If you only need occasional music outdoors, compare portable speakers with a permanent wired system. A battery model avoids a fixed amplifier and cable installation, but still needs suitable water protection, charging arrangements and indoor storage where required.

Sources and further reading

• Russound outdoor-speaker range
• Russound product documentation
• KEYENCE guide to enclosure and IP ratings
• Earthquake Sound AWS-502, AWS-602 and AWS-802 owner’s manual

Frequently asked questions

Does outdoor mean waterproof?

No. Check the exact exposure limits and any published rating. Weather-resistant wording does not establish protection against every form of water or environmental damage.

Do outdoor speakers need an amplifier?

Passive models do. Powered models have a different arrangement. Confirm the product type and connections before buying supporting equipment.

Can I compare speakers by watts alone?

No. Power handling, amplifier output, sensitivity and installation all matter. Match the complete system and intended listening area.

Should I mount speakers as high as possible?

Not automatically. Follow the mounting instructions and plan coverage for the listeners, with secure fixings, service access and consideration for neighbours.
