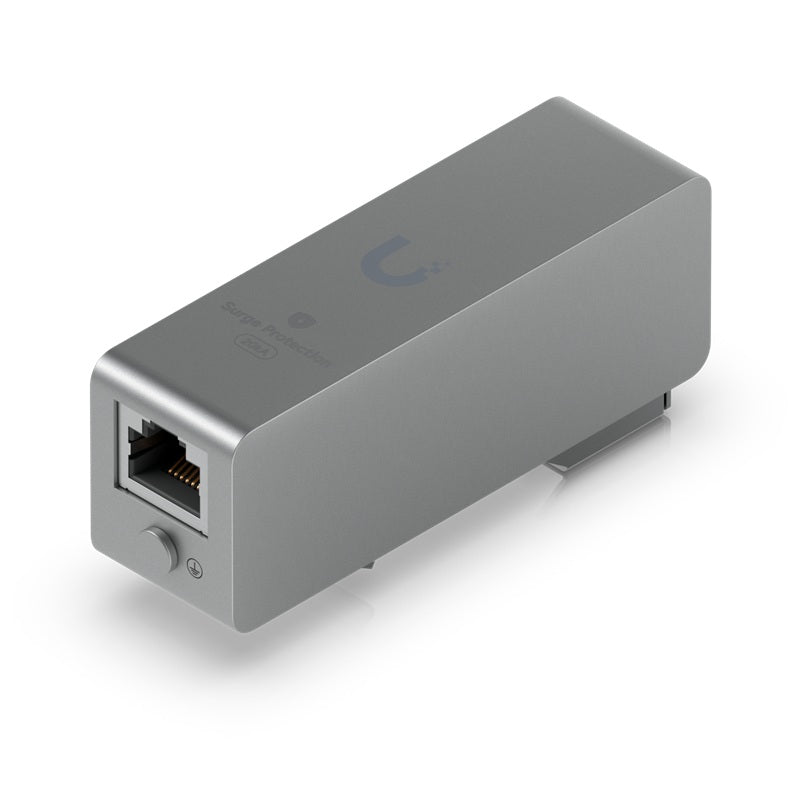

Name: Ubiquiti UniFi 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection
Brand: Ubiquiti
SKU: UACC-ETH-SP-DIN
Price: 82.80 NZD
Availability: InStock

Ubiquiti UniFi 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection

UACC-ETH-SP-DIN

$82.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti UniFi Ethernet Surge Protection, Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation

Ubiquiti UniFi Ethernet Surge Protection (UACC-ETH-SP-DIN). Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.

Features

Compatible with 10 GbE networks
supports up to PoE++ Passthrough
20kA Surge Discharge
Wall/DIN rail mount
Multiple grounding points

Details
Manufacturer's Code	UACC-ETH-SP-DIN
Dimensions	89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
Weight	74 g (2.6 oz)
Enclosure Material	Polycarbonate, SGCC steel
Networking Interface	(2) RJ45 female connectors
DC Spark-Over Voltage	90V @ 100V/s
Max. Impulse Spark-Over Voltage	600V @ 1kV/µs
Discharge Current	20kA
Insulation	Max. Resistance: 1G ohm @ 50V
Max. Capacitance	1.0 pF @ 1 MHz
Data Line Protection	Up to 10 Gbps
PoE support	Yes (up to PoE++)
ESD/EMP Protection	Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature	-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity	10 to 90% noncondensing

support

Details
Mounting Hardware	Wall/DIN rail mount included

Warranty

1 Year
