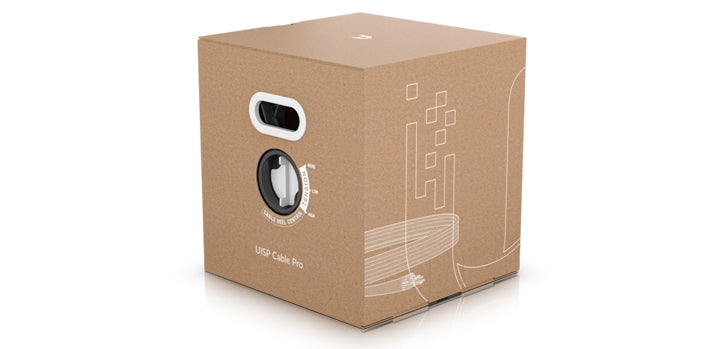

Name: Ubiquiti UISP Cable Pro 305m Cat5e Outdoor Ethernet Cable Roll
Brand: Ubiquiti
SKU: UISP-CABLE-PRO
Price: 389.70 NZD
Availability: InStock

Ubiquiti UISP Cable Pro 305m Cat5e Outdoor Ethernet Cable Roll

UISP-CABLE-PRO

6% OFF

$389.70 $415.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

Ubiquiti UISP Cable Pro 305m Cat5e Outdoor Ethernet Cable Roll (TCPro Replacement)

The Ubiquiti UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.

Note: This is the New TOUGHCable Pro (TC-Pro) replacement

Features

1,000 ft (305 m) Category 5e cable
24 AWG solid copper conductor pairings
Insulated, weatherproof cable jacket
Internal foil shielding and drain wire for increased ESD damage protection

Details
Manufacturer's Product Code	UISP-CABLE-PRO
Box Dimensions	330 x 330 x 340 mm (13 x 13 x 13.4")
Box Weight	12 kg (26.5 lb)
Cable Length	305 m (1000 ft)
Cable Type	CAT5e, Shielded
Ethernet support	Up to 1 Gbps
Conductor Wire Gauge	24 AWG
Conductor	Solid Bare Copper
Conductor Diameter	0.500 ± 0.005 mm
Insulation Type	Solid Polyethylene
Insulation Thickness	Avg. 0.26 mm; Min. 0.25 mm
Insulation Diameter	1.04 ± 0.03 mm
Separation (Polyester Wrapping)	Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk Divider	None
Cable Shield (Aluminum Foil)	Thick: 0.060 mm, Extent: 18 mm
ESD Drain Wire	0.4 CCS
Rip Cord	Yes
Jacket Material	Polyethylene
Jacket Thickness	Avg. 0.50 mm; Min. 0.46 mm
Jacket Outer Diameter	6.0 ± 0.30 mm
Jacket Colour	Black
Storage Temperature	-30 to 75° C (-22 to 167° F)
Installation Temperature	-20 to 60° C (-4 to 140° F)
Operation Temperature	-40 to 80° C (-40 to 176° F)
Standards	ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2)
