AX1800 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology^†
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

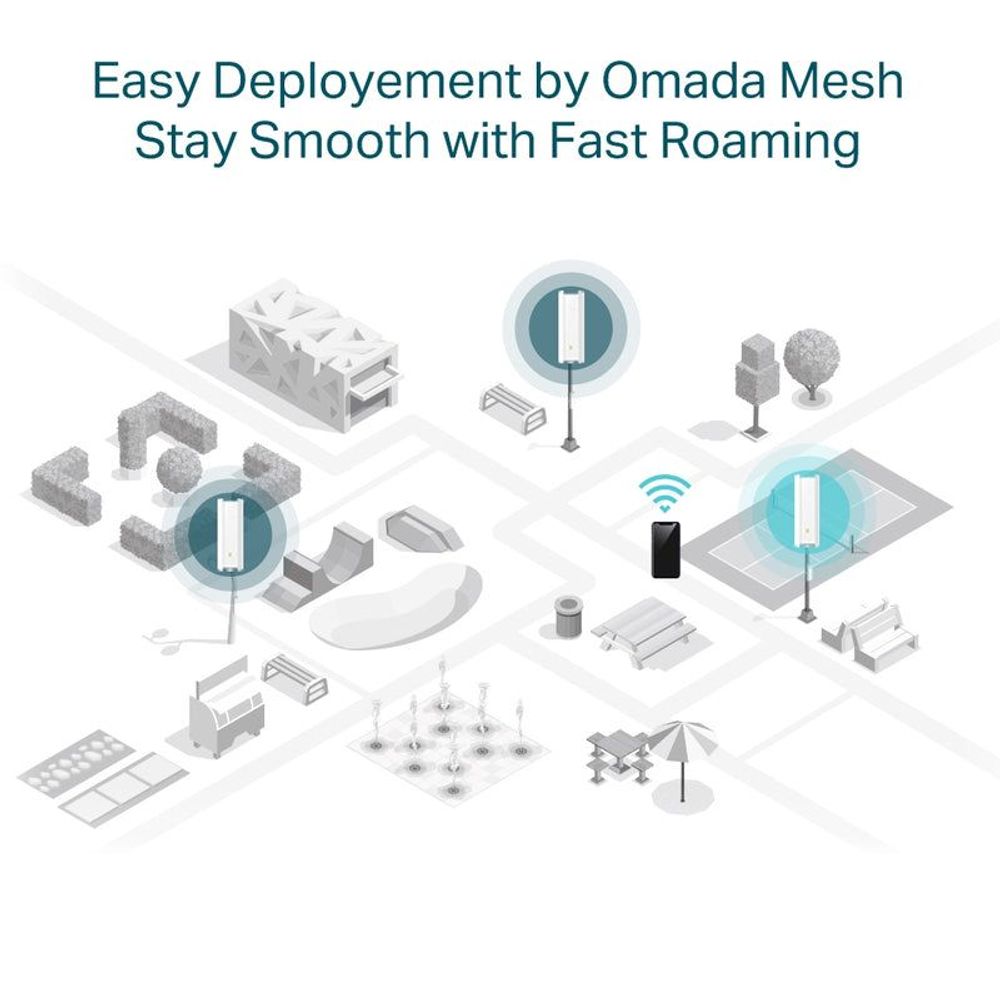

Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**

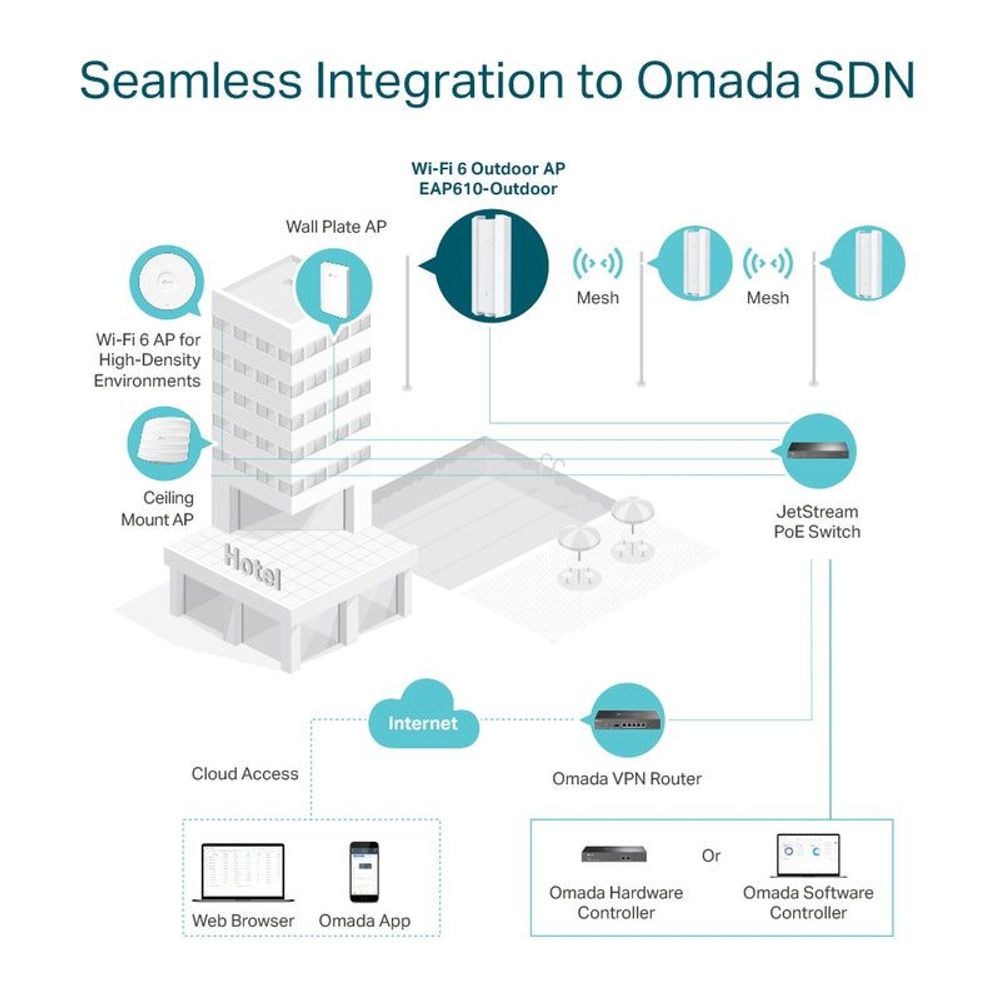

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Learn more about Omada Outdoor WiFi Solution>

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	• 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi

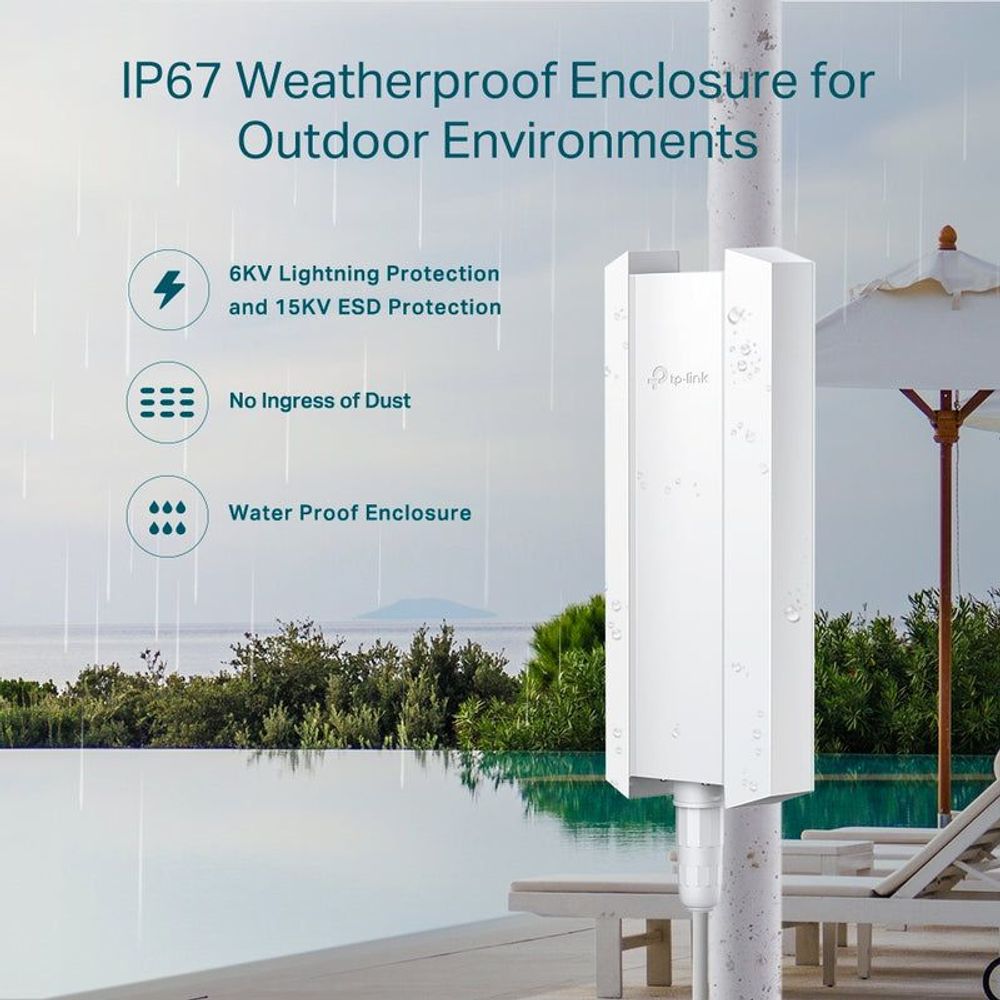

Weatherproof Enclosure	IP67
Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz
Signal Rate	• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power	• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication** • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0) • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes, through • Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0) • OC300 • OC200 • Omada Software Controller
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Access Point EAP610-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Kits • Waterproof Antenna • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Note that EAP610-Outdoor v1.0 doesn't support Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with Omada Cloud-Based Controller.

**Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

***The maximum range of WiFi coverage is calculated based on field tests. The real transmission range may vary, according to the environment, receiving device, etc.
