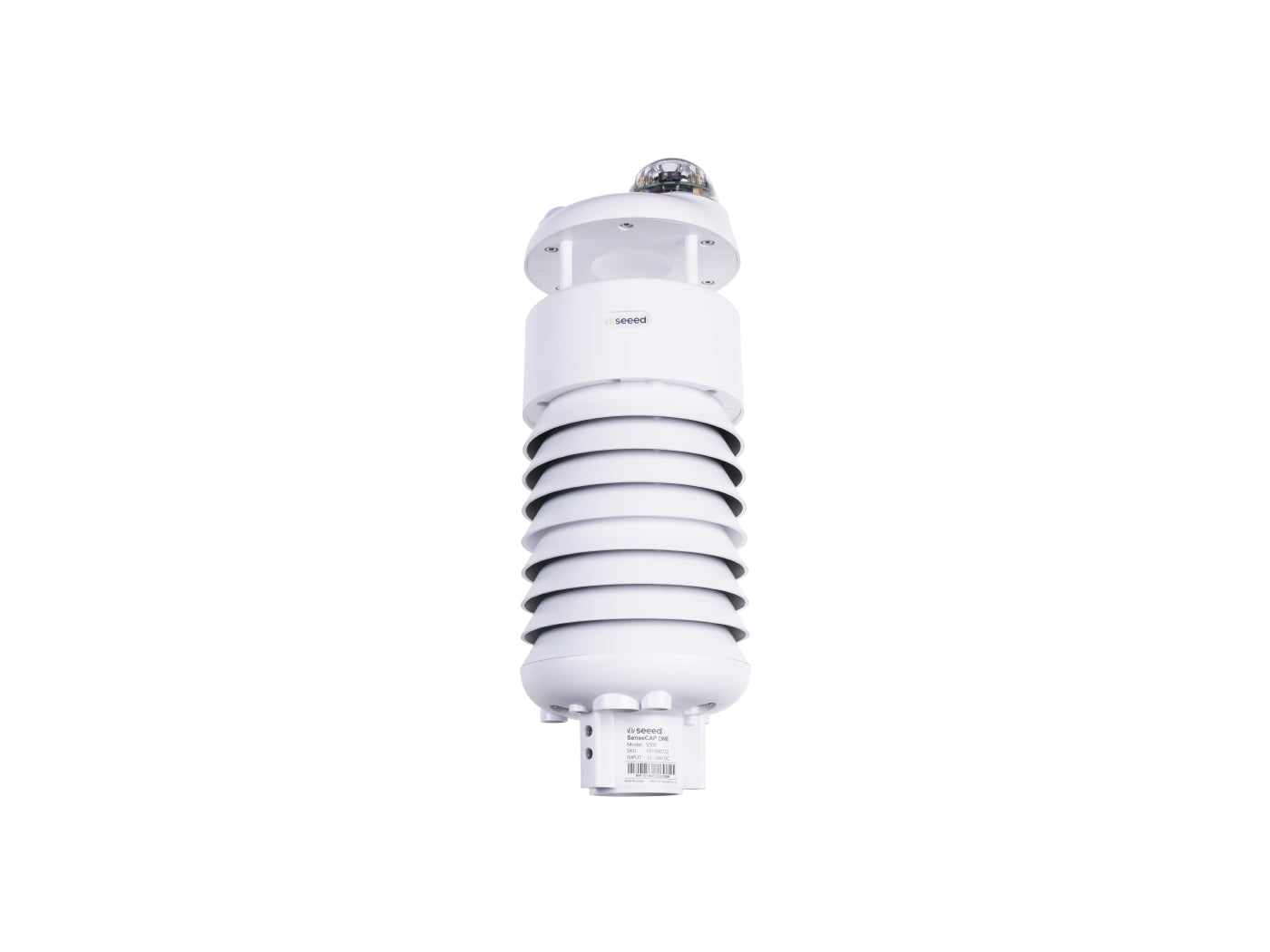

Name: Seeed SenseCAP ONE S900 9 in 1 Compact Weather Sensor
Brand: Seeed Technology
SKU: SC-ONE-S900
Price: 2793.35 NZD
Availability: OutOfStock

Seeed SenseCAP ONE S900 9 in 1 Compact Weather Sensor

SC-ONE-S900

$2,793.35

Tax included.

Out of stock

Select quantity

Description

Seeed SenseCAP ONE S900 9 in 1 Compact Weather IoT Sensor

The Seeed SenseCAP ONE S900 9-in-1 Compact Weather Sensor can help you collect and monitor environmental and weather data, which are crucial in different application scenarios. The SenseCAP ONE S900 is equipped with sensors to measure nine parameters: air temperature, relative humidity, barometric pressure, light intensity, rainfall, PM2.5, PM10, wind speed, and wind direction

Seeed SenseCAP ONE is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.

The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any datalogger that supports RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12.

We also stock the SenseCAP Sensor Hub 4G Data Logger which can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.

. .

Features

Measures 9 parameters: air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, PM2.5, PM10, wind speed, and wind direction
Embedded with the electronic compass / magnetometer
IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
Integrated heaters that can be switched on in extreme weather
Ultrasonic wind speed & direction sensors without moving parts
Optical rain gauge, compact in size and user-friendly
Radiation shields are equipped to ensure accurate ambient measurement.
supported interface: RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12
Calibrated and maintenance-free

Details
Product Model	101990784
Parameters Measured	air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, PM2.5, PM10, wind speed, and wind direction
Protocol	RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12
Cable Length	3m
Operating Temperature & Humidity	-40 °C ~ + 85 °C, 0 ~ 100%RH
IP Rating	IP66
Device Weight	2.39g
Air Temperature Range	- 40 °C ~ + 85 °C
Accuracy	± 0.1?
Resolution	0.01 ?
Air Humidity Range	0 ~ 100% RH
Accuracy	± 1.5% RH
Resolution	0.01% RH
Barometric Pressure Range	300 ~ 1250 hPa
Accuracy	± 50 hPa
Resolution	10 Pa
Light Intensity Range	0 ~ 188000 Lux
Accuracy	± 5% x (measurement value?
Resolution	5 Lux
Wind Speed (Ultrasonic) Range	0 ~ 60 m/s
Accuracy	± 3%
Resolution	0.1 m/s
Wind Direction (Ultrasonic) Range	0 ~ 360 °
Accuracy	± 3°
Resolution	0.1°
Rainfall Intensity (Optical) Range	0 ~ 200 mm/h
Accuracy	± 10%
Resolution	0.02 mm/h
PM 2.5 Range	0-1000?g per m3
Accuracy	± 10?g/m3 at 0-100?g/m3, ±10± at 0-100
Resolution	1?g/m3
PM 10 Range	0-1000?g per m3
Accuracy	± 15?g/m3 at 0-100?g/m3, ±15± at 0-100?g/m3
Resolution	1?g/m3

Details
Package Includes	9 in 1 Sensor, Pole Top mounting Screws, M-12 connector cable, USB-C cable

Warranty

1 Year

Brand

Seeed Technology

Restock ETA (if applicable)
