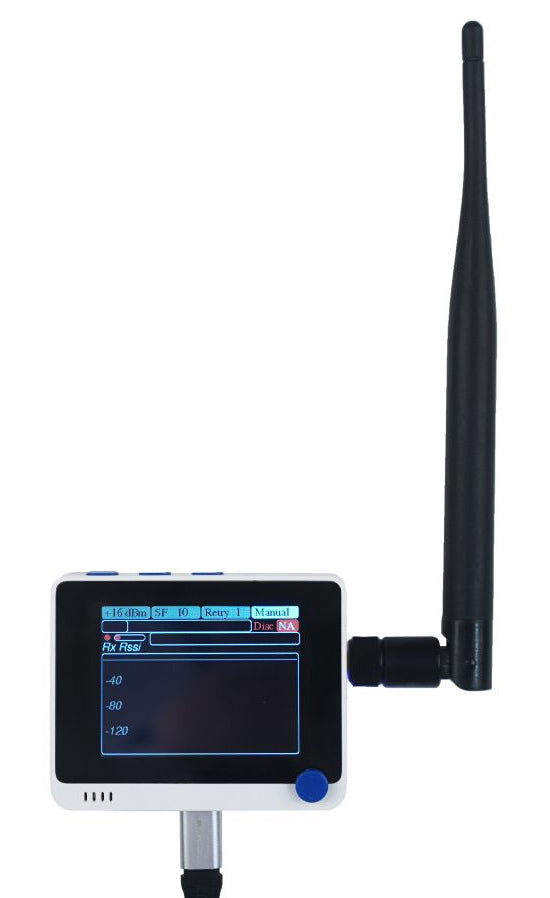

Name: Seeed LoRaWAN IoT Field Tester Kit Plug and Play LongFi Network Monitor for Helium Network
Brand: Seeed Technology
SKU: 114992777
Price: 220.80 NZD
Availability: InStock

Seeed LoRaWAN IoT Field Tester Kit Plug and Play LongFi Network Monitor for Helium Network

114992777

$220.80

Tax included.

18 items available

Select quantity

Description

Seeed LoRaWAN Field Tester Kit: Plug and Play LongFi Network Monitor for Helium Network

This Wio LoRaWAN FieldTester is a plug-and-play and all-in-one LongFi network monitor for the Helium network. It will help you know how many IoT Hotspots around can be touched for a given position, enrich the network mappers to know each other and share the real network coverage.

Please note that these are not battery powered. You will need a portable battery bank to operate these in the field.

Setup Documentation can be found here

. .

Features

Ready to go Wio Terminal LoRaWAN Field Tester. No setup, just power it on! The included communication allows a normal use for 3 to 5 years.
Compact size, support Type C power bank charge to bring the device everywhere.
Monitor the LongFi network performance from the field to verify the coverage and know the different Gateways / Hotspots covering a given spot
Find the best places to deploy new Gateways / Hotspots.
Directly display network and GPS information on the Wio Terminal screen

Details
Core Processor	ARM® Cortex®-M4F running at 120MHz
Memory	4 MB External Flash, 192 KB RAM
External Flash	4MBytes
Operating Temperature	-40°C ~ 85°C (TA)
LCD Screen Resolution	320x240
Display Size	2.4inch
Wi-Fi	802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz
Bluetooth	support BLE5.0
Built-in Modules	Accelerometer, Microphone, Speaker, Light Sensor, Infrared Emitter
MicroSD Card Slot	Maximum 16GB
Dimension	72mm57mm12mm
Materials	ABS+PC
Frequency	AU915/AS923
Protocol	LoRaWAN
Sensitivity	-116.5dBm ~ -136dBm

Details
Contains	Field Test device, USB Type C cable, Antenna

Warranty

1 Year

Brand

Seeed Technology

Restock ETA (if applicable)

Product Details

Specifications

Seeed Technology
HeadingSeeed LoRaWAN IoT Field Tester Kit Plug and Play LongFi Network Monitor for Helium Network

Description

Seeed LoRaWAN Field Tester Kit: Plug and Play LongFi Network Monitor for Helium Network

Features

Ready to go Wio Terminal LoRaWAN Field Tester. No setup, just power it on! The included communication allows a normal use for 3 to 5 years.
Compact size, support Type C power bank charge to bring the device everywhere.
Monitor the LongFi network performance from the field to verify the coverage and know the different Gateways / Hotspots covering a given spot
Find the best places to deploy new Gateways / Hotspots.
Directly display network and GPS information on the Wio Terminal screen

Details
Core Processor	ARM® Cortex®-M4F running at 120MHz
Memory	4 MB External Flash, 192 KB RAM
External Flash	4MBytes
Operating Temperature	-40°C ~ 85°C (TA)
LCD Screen Resolution	320x240
Display Size	2.4inch
Wi-Fi	802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz
Bluetooth	support BLE5.0
Built-in Modules	Accelerometer, Microphone, Speaker, Light Sensor, Infrared Emitter
MicroSD Card Slot	Maximum 16GB
Dimension	72mm57mm12mm
Materials	ABS+PC
Frequency	AU915/AS923
Protocol	LoRaWAN
Sensitivity	-116.5dBm ~ -136dBm
