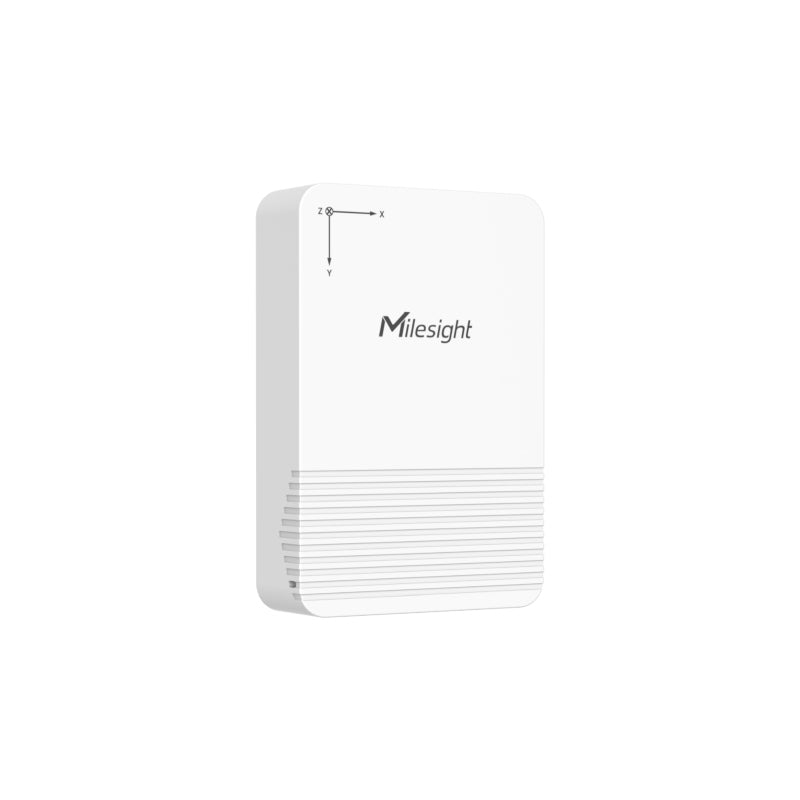

Name: MIlesight LoRaWAN AS923/AU915 IoT Tilt Sensor with IP67 Case
Brand: Milesight IoT
SKU: EM320-TILT-915M
Price: 217.35 NZD
Availability: InStock

MIlesight LoRaWAN AS923/AU915 IoT Tilt Sensor with IP67 Case

EM320-TILT-915M

$217.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

MIlesight LoRaWAN AS923/AU915 Tilt IoT Sensor with IP67 Case

The Milesight EM320-TILT is a LoRaWAN IoT tilt sensor for angle measurements and asset movement detection. With a compact size and 3-axis accelerometer, the EM320-TILT can be installed on or alongside objects easily, to measure its X, Y, Z tilt angles. In addition, the EM320-TILT supports customizing initial position to detect movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobileapp remotely. EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.

. .

Features

Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
Flexible threshold condition settings, suitable for different kinds of applications
Easy to install, suitable for various types of objects as trees, poles, grounds, etc. ? IP67 waterproof enclosure for outdoor applications
Anti-theft design on back cover to secure firm and sturdy installation
Ultra-wide-distance wireless transmission up to line of sight of 15 km
Equipped with NFC for one touch configuration
Function well with standard LoRaWAN IoT gateways and network servers

Details
Manufacturer's Code	EM320-TILT-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Axis Measurement	X, Y and Z
Range	- 90° to +90°
Accuracy	± 1°
Resolution	0.01°
Configuration	Mobile APP(NFC)
Power Supply	2 × 2700 mAh ER14505 Li-SOCL2 Batteries
Battery Life	>5 years
Operating Temperature	-30°C to +60°C
Ingress Protection	IP67
Dimension	85 × 58 × 18 mm
Material and Colour	ABS + PC, White
Mounting	Wall

Details
Contains	Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card

Warranty

2 Years

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMIlesight LoRaWAN AS923/AU915 IoT Tilt Sensor with IP67 Case

Description

MIlesight LoRaWAN AS923/AU915 Tilt IoT Sensor with IP67 Case

Features

Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
Flexible threshold condition settings, suitable for different kinds of applications
Easy to install, suitable for various types of objects as trees, poles, grounds, etc. ? IP67 waterproof enclosure for outdoor applications
Anti-theft design on back cover to secure firm and sturdy installation
Ultra-wide-distance wireless transmission up to line of sight of 15 km
Equipped with NFC for one touch configuration
Function well with standard LoRaWAN IoT gateways and network servers

Details
Manufacturer's Code	EM320-TILT-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Axis Measurement	X, Y and Z
Range	- 90° to +90°
Accuracy	± 1°
Resolution	0.01°
Configuration	Mobile APP(NFC)
Power Supply	2 × 2700 mAh ER14505 Li-SOCL2 Batteries
Battery Life	>5 years
Operating Temperature	-30°C to +60°C
Ingress Protection	IP67
Dimension	85 × 58 × 18 mm
Material and Colour	ABS + PC, White
Mounting	Wall
