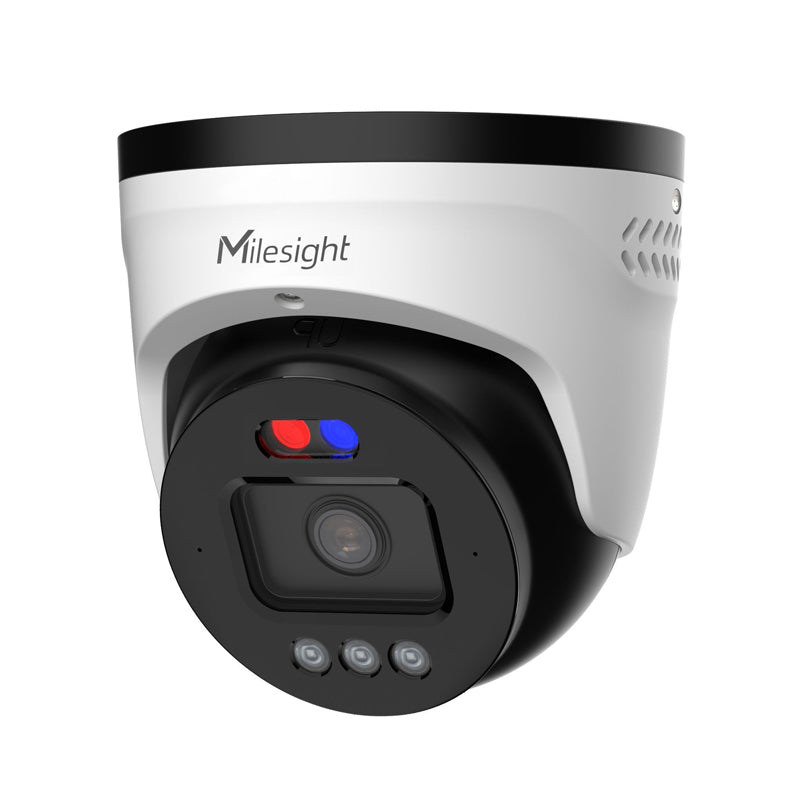

Name: Milesight 4K NDAA AI TrueColor Turret Network Camera
Brand: Milesight
SKU: MS-CQ8231-HYPG1
Price: 876.30 NZD
Availability: InStock

Milesight 4K NDAA AI TrueColor Turret Network Camera

MS-CQ8231-HYPG1

$876.30

Tax included.

14 items available

Select quantity

Description

The Milesight Q Series Camera combines compact design with advanced features like TrueColor, On-Guard, VCA 2.0, and MSense. Offering exceptional performance in low-light conditions, it's the perfect choice for reliable, everyday security.

Designed with security at its core, the Milesight Q Series Camera features VCA 2.0 technology, powered by the enhanced chip. With an AI recognition range of up to 75 meters and an accuracy rate of over 99%, VCA 2.0 significantly reduces false alarms, ensuring reliable, precise detection while minimizing disturbances and potential losses.

The Milesight Q Series Camera uses MSense technology for advanced object counting, including People Counting, Vehicle Counting and Heat Map. It also features Face Capture, allowing it to capture the image of face and send to the backend platform for smart search and investigation. These features provide valuable insights to optimize operations and improve security management.

Provides stable, full-color surveillance on the move — with flashing lights, real-time voice alerts, and two-way audio. Rugged and road-tested over 1000+ KM, built to perform with DIS, IP67 & IK10 protection

Milesight demonstrates its commitment to sustainability by using eco‑friendly materials in the packaging of the Q Series Camera. By safeguarding security, we also contribute to protecting the planet, supporting a greener, more sustainable future.

The Milesight Q Series Camera combines a compact design with robust functionality, featuring built-in microphones and speaker, multi-interface support, and up to 1TB SD card storage. With IP67 and IK10 industrial-grade protection, it's built to withstand even the toughest environments.

The Milesight Device Portal is a remote management platform designed for operation & maintenance teams. It allows bulk device management, status monitoring, and pre-configuration with RPS. Once powered on and connected to the network, devices automatically retrieve pre-configured files, simplifying setup and improving efficiency. Milesight Q Series Camera offers seamless compatibility with Milesight Software. It takes a step further with deep compatibility for Network Optix and Axxonsoft via Milesight One API/ plugin, while Onvif guarantees broad compatibility with any third-party VMS, giving you the freedom to choose the perfect solution.

Features

8MP
AI ISP & F1.0 Aperture & 1/1.8”Sensor
Smart Hybrid Light
Blue & Red Flashing Lights
Built-in Dual Mic & Speaker
VCA 2.0 & Object Counting & Face Capture & Heat Map
Digital Image Stabilization (DIS)
One Screwdriver Design
IP67 & IK10

Model	MS-CQ8231-HYPG1
Image Sensor	1/1.8” Progressive Scan CMOS
Min. Illumination	0.0008 Lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on)
WDR	120dB Super WDR
Shutter Time	1/100000s ~ 1s
Day/Night Mode	Day / Night / Auto / Customize / Schedule
DORI Distance	2.8mm: D: 91.5m O: 36m R: 18 m I: 9m 4mm: D: 111m O: 43.5m R: 22 m I: 11m
S/N	>56dB
Illuminator Type	3 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length	850nm
Illumination Distance	Up to 40m (IR Light), Up to 30m (White Warm Light)
Illuminator On/Off Control	Auto, Manual
Smart Hybrid Lights	Support
Red and Blue Flashing Lights	1 x Red Light and 1 x Blue Light
Lens	2.8mm
Aperture	F1.0
Field of View	2.8mm: H:112° V:61.5° D:137°
Close Focus Distance	2.8mm: 2m 4mm:3m
Camera Angle Adjustment	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
Mount	M16
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Secondary Stream	60Hz: 30fps@ (704x576, 640x480, 640x360) 50Hz: 25fps@ (704x576, 640x480, 640x360)
Tertiary Stream	60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness / Contrast / Saturation / Sharpness
Image Enhancement	BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image Rotation	Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Built-in Microphone	Yes, Dual Microphone
Built-in Speaker	Yes, max.sound pressure level: 10cm: 95dB
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Ethernet	1 x RJ45 10M /100M Ethernet Port
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	Pv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Video Analysis	VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat Map	The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face Capture	Capture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
One-Click Disarm	Support
Basic Event	Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
Exception	Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event Action	FTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
Watermark	Support
Storage	Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support	Yes, Voice & Video-over-IP
System Compatibility	ONVIF Profile G&M&S&T, One API
Working Temperature	-40℃ ~ 60℃
Power Supply	PoE (802.3af) / DC 12V±25%
Working Humidity	0~95% RH (Non-condensing)
Surge Protection	4KV
Power Consumption	Min.: 4W (DC 12V), 5W (PoE) Max.: 10W (DC 12V), 11.5W (PoE)
Casing Material	Metal
Net Weight	Approx. 0.9kg
Gross Weight	Approx. 1.1Kg
Dimensions	Φ122mm X 108mm
Warranty	3 Years / 5 Years (Optional)
EMC	CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
Safety	CE-LVD (EN IEC 62368-1)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection	IP67, IK10
